G192100 Pages:4

PART B
Answer any two full questions, each carries 25 marks.

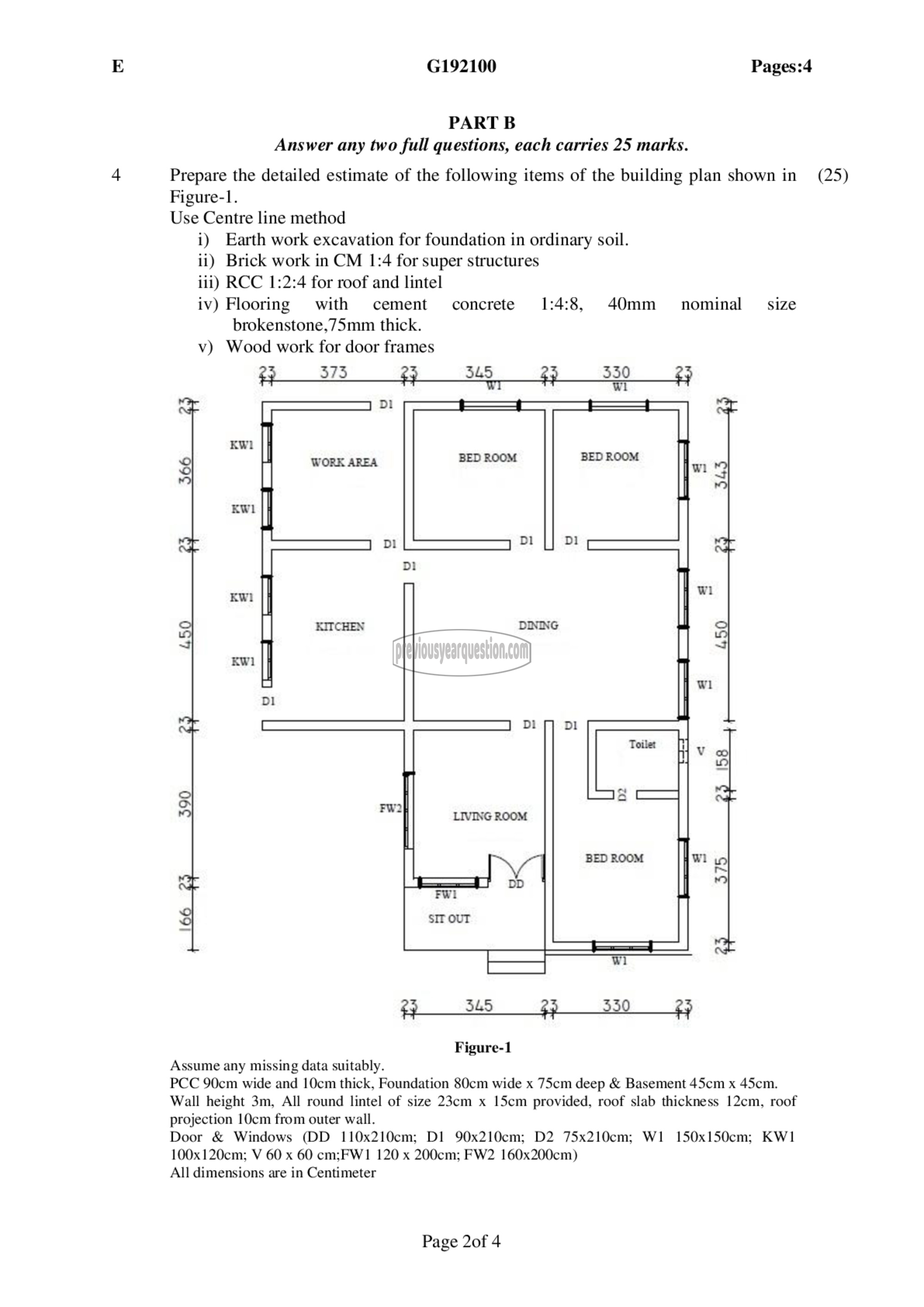

Prepare the detailed estimate of the following items of the building plan shown in (25)
Figure-1.
Use Centre line method

i) Earth work excavation for foundation in ordinary soil.

ii) Brick work in CM 1:4 for super structures

iii) RCC 1:2:4 for roof and lintel

iv) Flooring with cement concrete 1:4:8, 40mm _ nominal _ size

brokenstone,75mm thick.
v) Wood work for door frames

9-०7 ഏല மலி 5904 345 330

1೫1
| = ROOM
<

KW1

೫೫1
3

೫೫1
ல
‏مع‎

LIVING ROOM

Figure-1
Assume any missing data suitably.
PCC 90cm wide and 10cm thick, Foundation 80cm wide x 75cm deep & Basement 45cm x 45cm.
Wall height 3m, All round lintel of size 23cm x 15cm provided, roof slab thickness 12cm, roof
projection 10cm from outer wall.
Door & Windows (DD 110x210cm; 01 90x210cm; D2 75x210cm; ७1 150x150cm; ۱1
100x120cm; V 60 x 60 cm;FW1 120 x 200017; FW2 160x200cm)
All dimensions are in Centimeter

Page 2of 4
