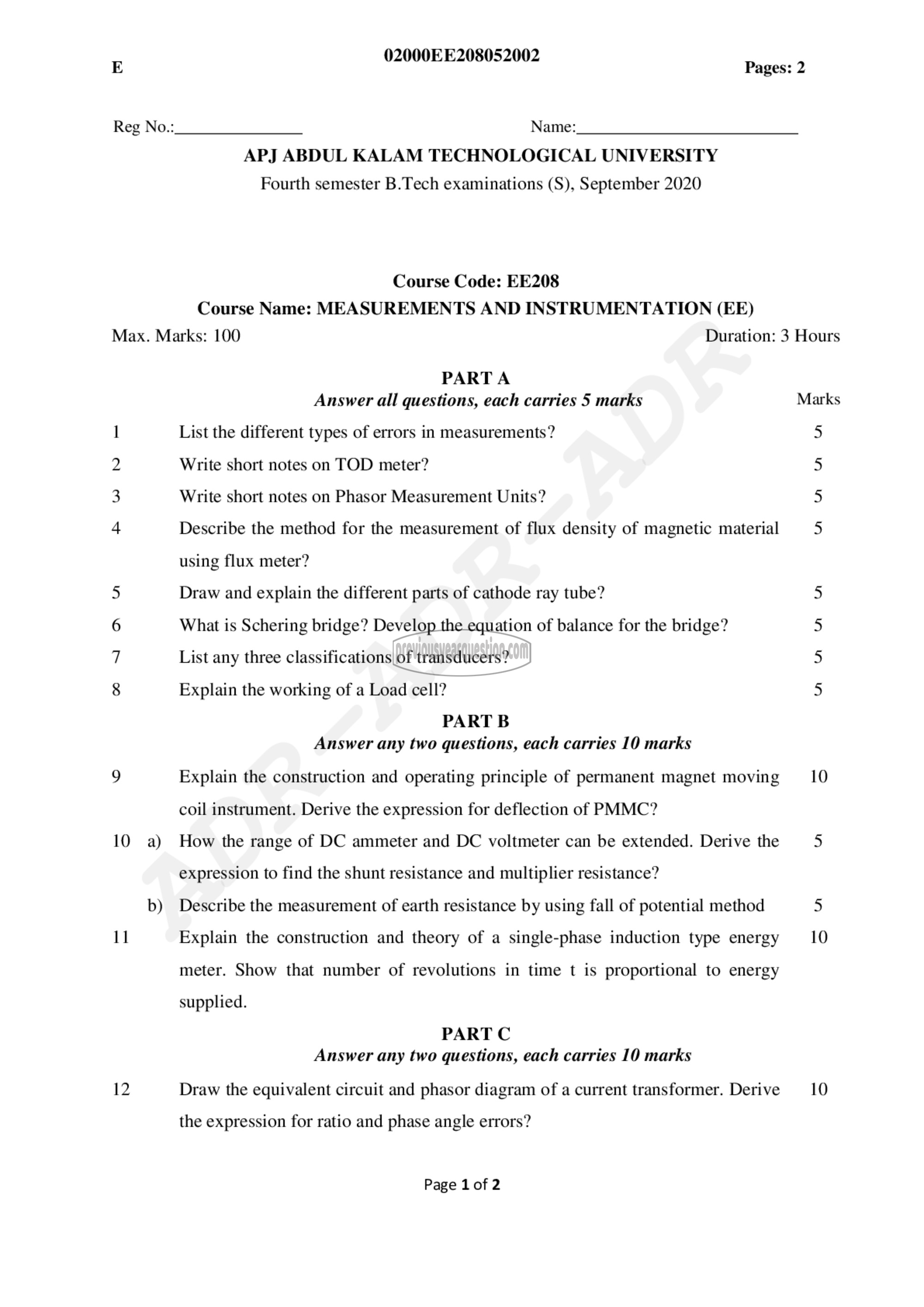

: 00 02 Pages: 2

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Fourth semester B.Tech examinations (S), September 2020

Course Code: EE208
Course Name: MEASUREMENTS AND INSTRUMENTATION (EE)

Max. Marks: 100 Duration: 3 Hours
PARTA
Answer all questions, each carries 5 marks Marks
1 List the different types of errors in measurements? 5
2 Write short notes on TOD meter? 5
3 Write short notes on Phasor Measurement Units? 5
4 Describe the method for the measurement of flux density of magnetic material 5

using flux meter?
Draw and explain the different parts of cathode ray tube?
What is Schering bridge? Develop the equation of balance for the bridge?

List any three classifications of transducers?

ما ‎ॐ ~ ಲ‏
ما ‎ಓಗಿ‏ ہا ہا

Explain the working of a Load cell?
PART ‏تا‎

Answer any two questions, each carries 10 marks

9 Explain the construction and operating principle of permanent magnet moving 10
coil instrument. Derive the expression for deflection of PMMC?

10 a) How the range of DC ammeter and DC voltmeter can be extended. Derive the 5
expression to find the shunt resistance and multiplier resistance?

b) Describe the measurement of earth resistance by using fall of potential method 5

11 Explain the construction and theory of a single-phase induction type energy 10

meter. Show that number of revolutions in time t is proportional to energy

supplied.
PART C
Answer any two questions, each carries 10 marks
12 Draw the equivalent circuit and phasor diagram of a current transformer. Derive 10

the expression for ratio and phase angle errors?

Page 1 of 2
