16

17

18

19

a)
b)

(a)
(b)

a)

b)
a)

b)

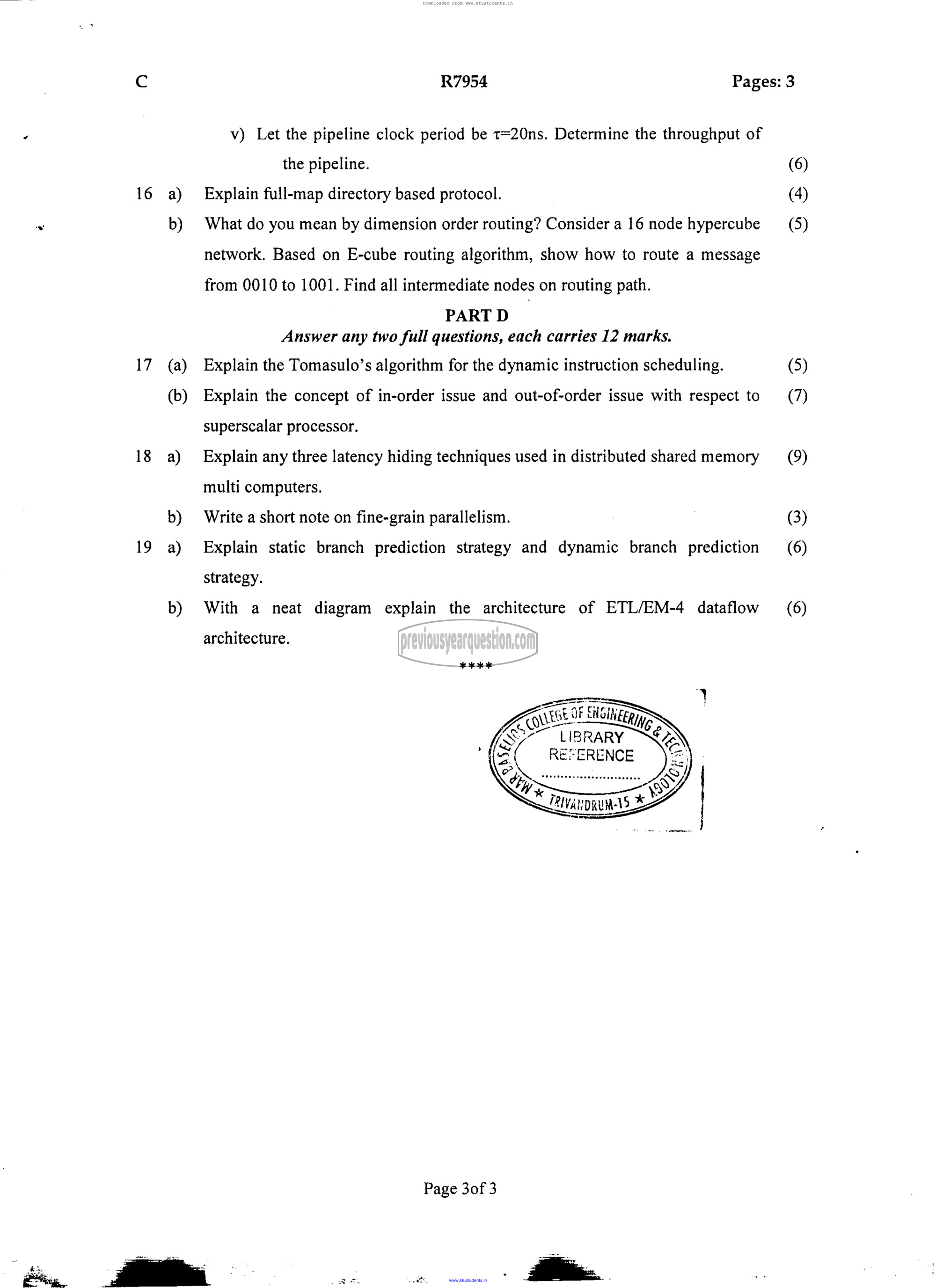

R7954 Pages: 3

v) Let the pipeline clock period be t=20ns. Determine the throughput of

the pipeline.
Explain full-map directory based protocol.
What do you mean by dimension order routing? Consider a 16 node hypercube
network. Based on E-cube routing algorithm, show how to route a message
from 0010 to 1001. Find all intermediate nodes on routing path.

PART D ۱

Answer any two full questions, each carries 12 marks.
Explain the Tomasulo’s algorithm for the dynamic instruction scheduling.
Explain the concept of in-order issue and out-of-order issue with respect to
superscalar processor.
Explain any three latency hiding techniques used in distributed shared memory
multi computers.
Write a short note on fine-grain parallelism.
Explain static branch prediction strategy and dynamic branch prediction
strategy.
With a neat diagram explain the architecture of ETL/EM-4 dataflow

architecture.

೫% ೫%

7೩63083

(6)
(4)
(5)

(5)
(7)

(9)

(3)
(6)

(6)
