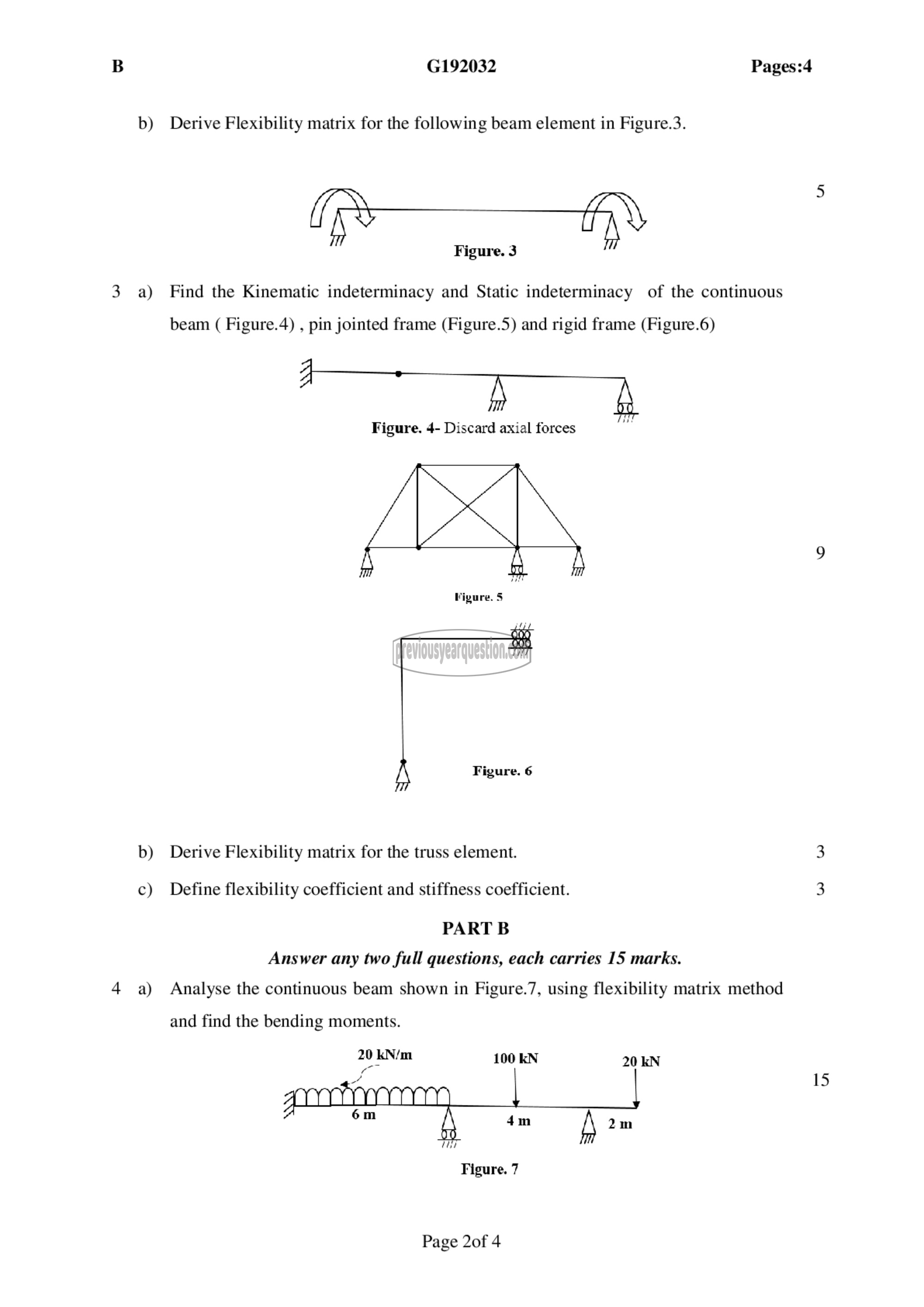

b) Derive Flexibility matrix for the following beam element in Figure.3.

(कि |

Figure. 3

3 a) Find the Kinematic indeterminacy and Static indeterminacy of the continuous

beam ( Figure.4) , pin jointed frame (Figure.5) and rigid frame (Figure.6)

Figure. 4- Discard axial forces

Viygure. 5

ன்‌
i!

Figure. 6

b) Derive Flexibility matrix for the truss element. 3
c) Define flexibility coefficient and stiffness coefficient. 3
PART ‏تا‎
‎Answer any two full questions, each carries 15 marks.
4 a) Analyse the continuous beam shown in Figure.7, using flexibility matrix method

and find the bending moments.

റ 15

Figure. 7
