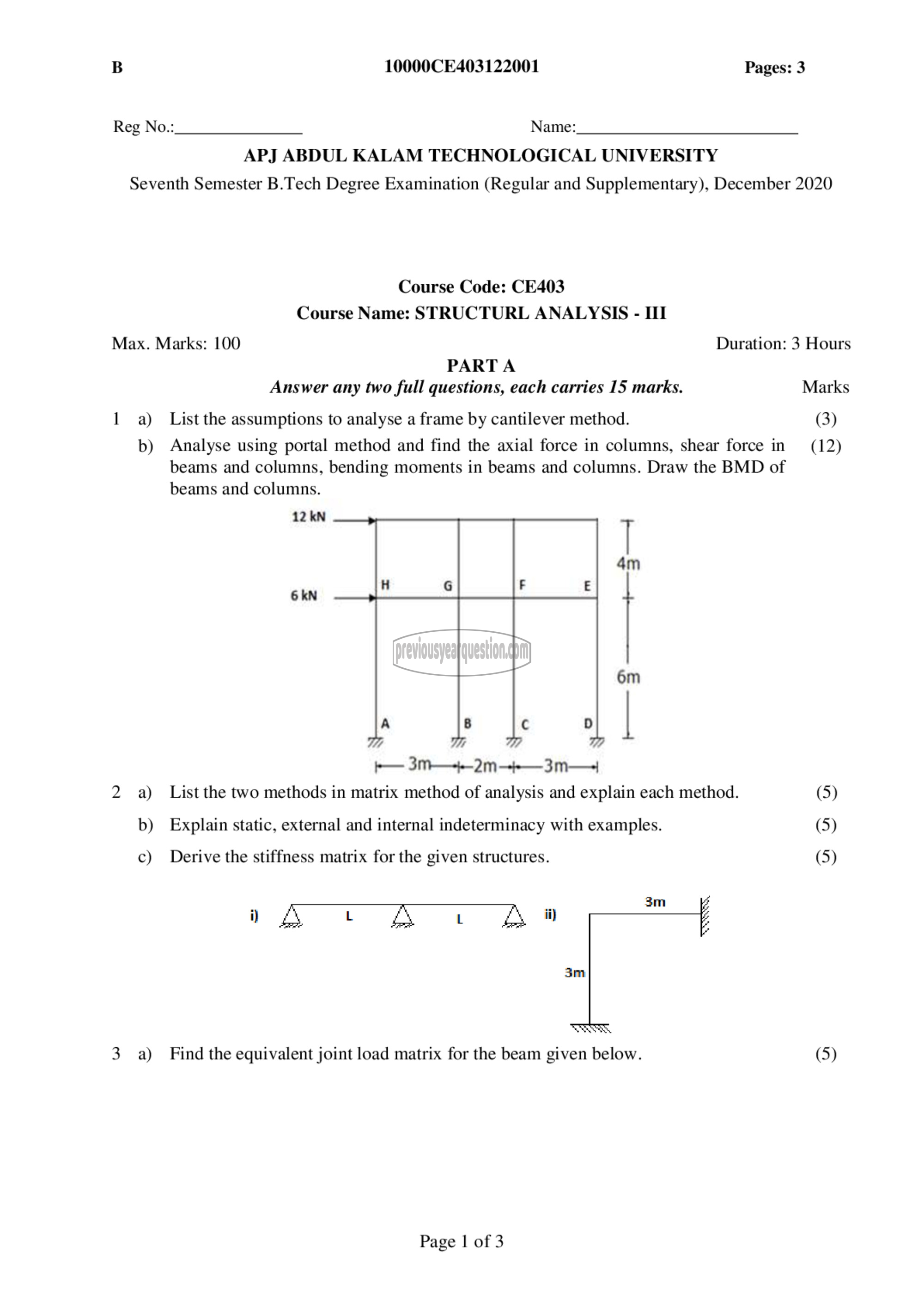

B 10000CE403122001 Pages: 3

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Seventh Semester B.Tech Degree Examination (Regular and Supplementary), December 2020

Course Code: CE403
Course Name: STRUCTURL ANALYSIS - 111

Max. Marks: 100 Duration: 3 Hours
PARTA
Answer any two full questions, each carries 15 marks. Marks
1 a) List the assumptions to analyse a frame by cantilever method. (3)

b) Analyse using portal method and find the axial force in columns, shear force ൧൨ (12)
beams and columns, bending moments in beams and columns. Draw the BMD of
beams and columns.

12 kN
6kN
6m
A 8 € ഉ |
7 7 7 7
‏سما‎ 3M—+-—-2m—+—3 m—+
2 a) List the two methods in matrix method of analysis and explain each method. (5)
b) Explain static, external and internal indeterminacy with examples. (5)
c) Derive the stiffness matrix for the given structures. (5)
|
உதட து ட த 15541
3m
3 9) Find the equivalent joint load matrix for the beam given below. (5)

Page 10/3
