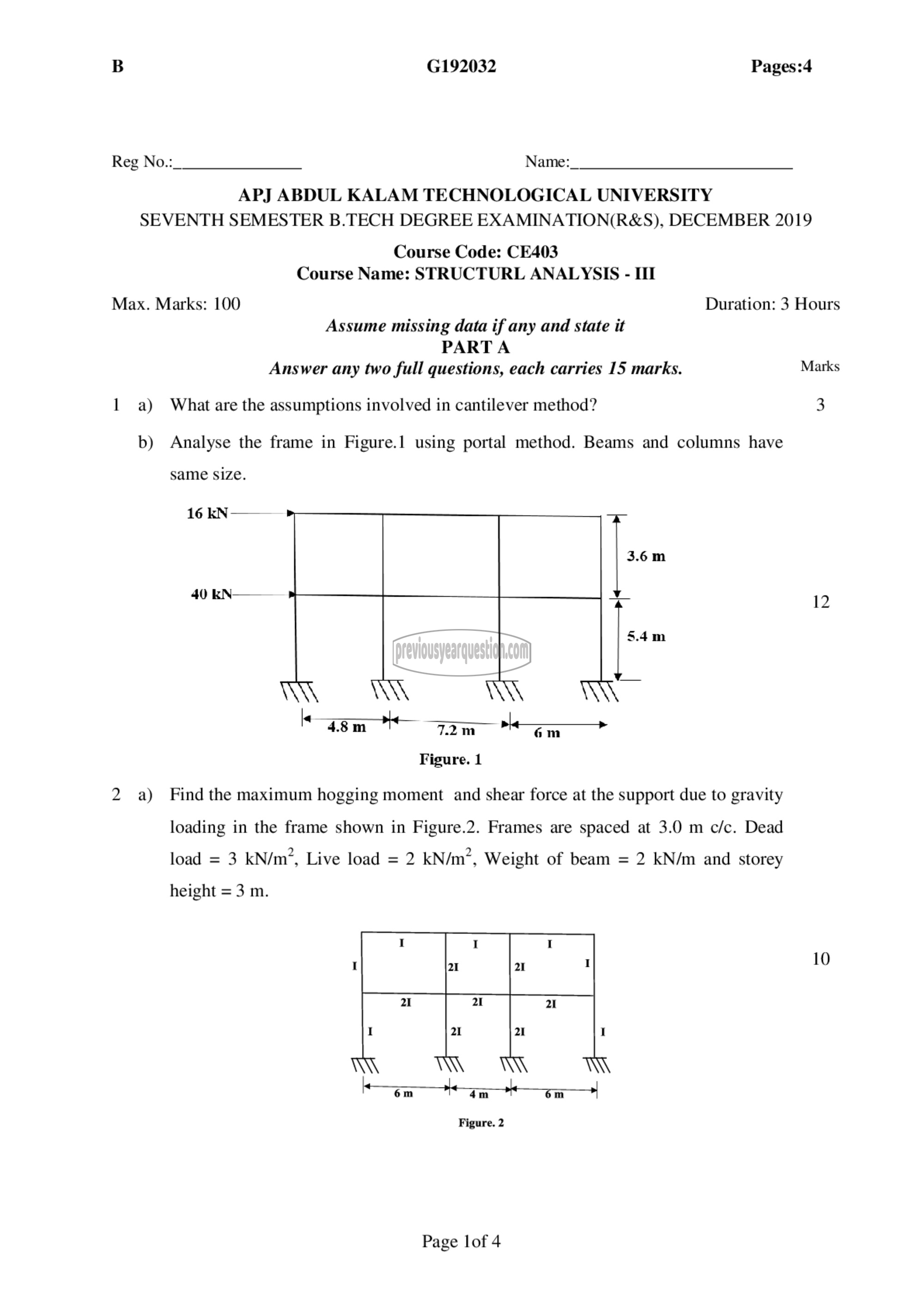

B G192032 Pages:4

Reg No.:_ Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SEVENTH SEMESTER B.TECH DEGREE EXAMINATION(R&S), DECEMBER 2019

Course Code: (1403
Course Name: STRUCTURL ANALYSIS - 111

Max. Marks: 100 Duration: 3 Hours
Assume missing data if any and state it
PARTA
Answer any two full questions, each carries 15 marks. Marks
1 a) What are the assumptions involved in cantilever method? 3

0) Analyse the frame in Figure.1 using portal method. Beams and columns have

same size.

16 kN—— || |]
3.6m

12 3 عبت
5.4

le कहर + m #+ 72m ari
Figure. 1

2 a) Find the maximum hogging moment and shear force at the support due to gravity

loading in the frame shown in Figure.2. Frames are spaced at 3.0 m c/c. Dead

load = 3 kN/m?, Live load = 2 kN/m?, Weight of beam = 2 kN/m and storey

height = 3 m.

10

‎4n ” 60‏ کسر + جب ها ‎ന്ന‏

‎Figure. 2

‎Page lof 4
