‎UNIVERSITY‏ دع 16% ‎APJ ABDUL KALAM‏

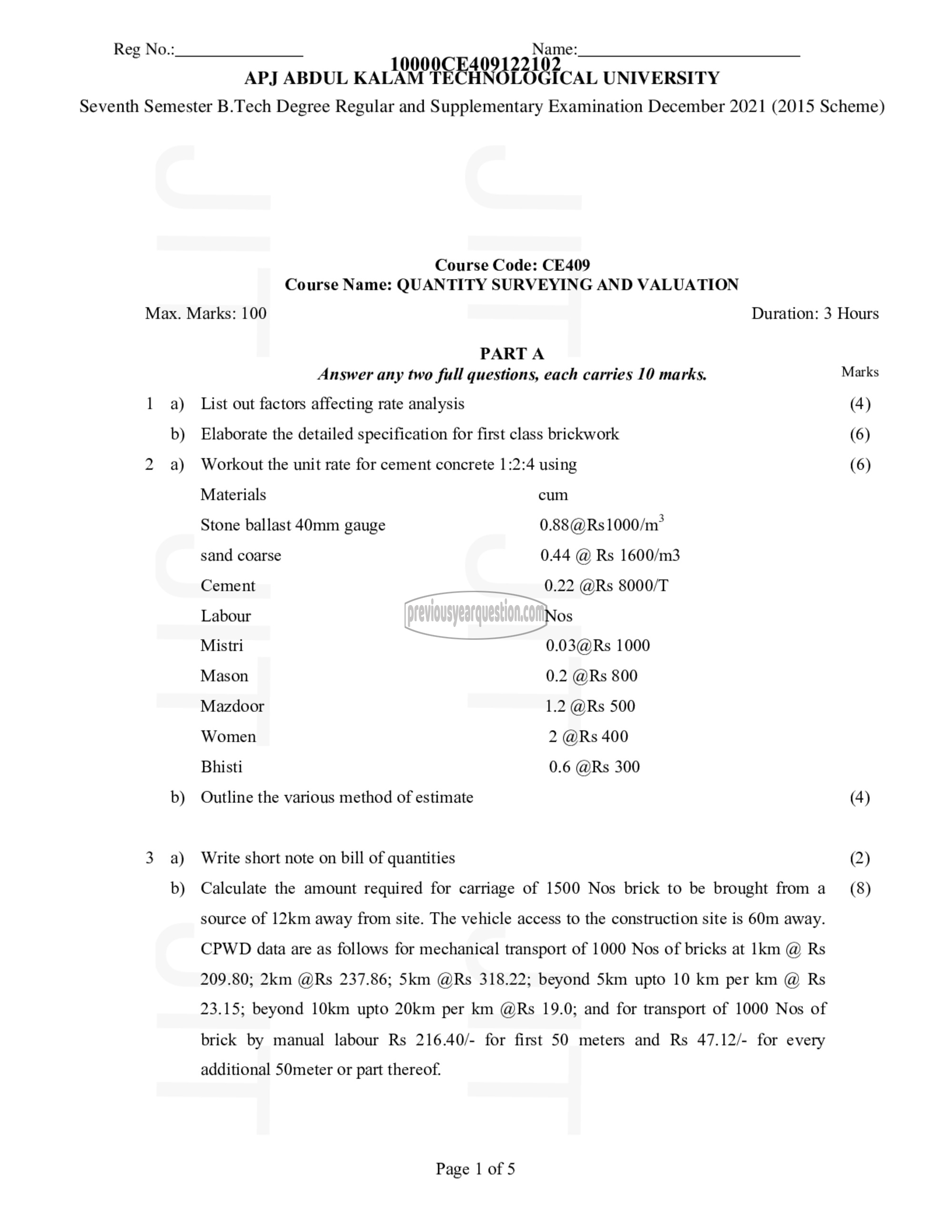

‎Seventh Semester B.Tech Degree Regular and Supplementary Examination December 2021 (2015 Scheme)‏

‎Course Code: CE409
Course Name: QUANTITY SURVEYING AND VALUATION

‎Max. Marks: 100 Duration: 3 Hours
PART A
Answer any two full questions, each carries 10 marks. Marks
1 a) 1451 out factors affecting rate analysis (4)
b) Elaborate the detailed specification for first class brickwork (6)
2 a) Workout the unit rate for cement concrete 1:2:4 using (6)
Materials cum
Stone ballast 40mm gauge 0.88@Rs1000/m*
sand coarse 0.44 @ Rs 1600/m3
Cement 0.22 @Rs 8000/T
Labour Nos
Mistri 0.03@Rs 1000
Mason 0.2 @Rs 800
Mazdoor 1.2 @Rs 500
Women 2 @Rs 400
Bhisti 0.6 @Rs 300
b) Outline the various method of estimate (4)
3 a) Write short note on bill of quantities (2)

‎b) Calculate the amount required for carriage of 1500 Nos brick to be brought from a (8)
source of 12km away from site. The vehicle access to the construction site is 60m away.
CPWD data are as follows for mechanical transport of 1000 Nos of bricks at 1km @ Rs
209.80; 2km @Rs 237.86; 5km @Rs 318.22; beyond 5km upto 10 km per km @ Rs
23.15; beyond 10km upto 20km per km @Rs 19.0; and for transport of 1000 Nos of
brick by manual labour Rs 216.40/- for first 50 meters and Rs 47.12/- for every

‎additional 50meter or part thereof.
