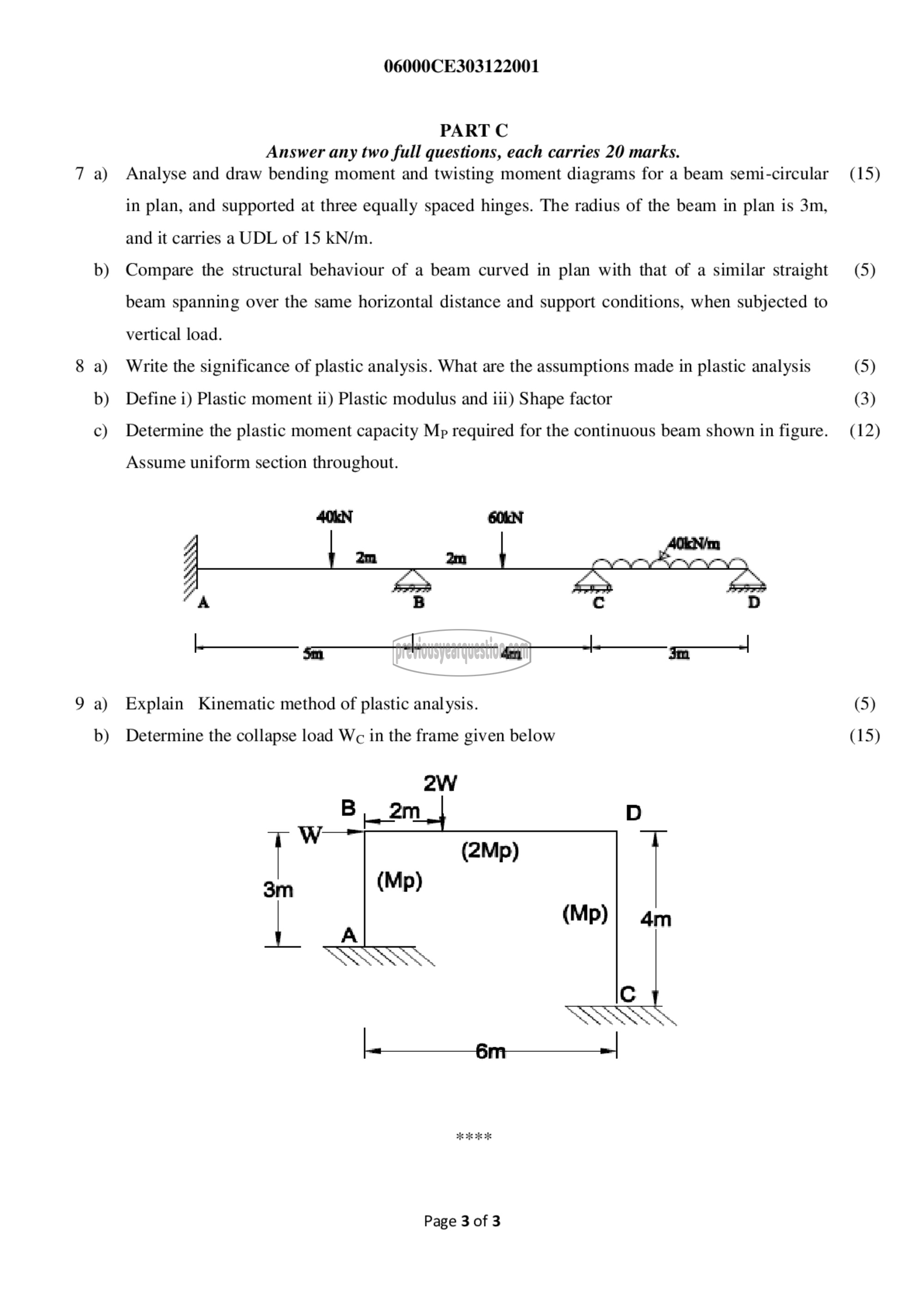

PART C
Answer any two full questions, each carries 20 marks.
7 a) Analyse and draw bending moment and twisting moment diagrams for a beam semi-circular (15)

in plan, and supported at three equally spaced hinges. The radius of the beam in plan is 3m,
and it carries a UDL of 15 kKN/m.

b) Compare the structural behaviour of a beam curved in plan with that of a similar straight (5)
beam spanning over the same horizontal distance and support conditions, when subjected to
vertical load.

8 a) Write the significance of plastic analysis. What are the assumptions made in plastic analysis (5)

b) Define i) Plastic moment ii) Plastic modulus and iii) Shape factor (3)

c) Determine the plastic moment capacity Mp required for the continuous beam shown in figure. (12)

Assume uniform section throughout.

40kN 60kN
ft == | 5 2m ~
A B c D
ള്ക്ക്‌ | ಜಂ ಐ
9 a) Explain Kinematic method of plastic analysis. (5)
b) Determine the collapse load Wc in the frame given below (15)

اہ ‎നട‏ هما
