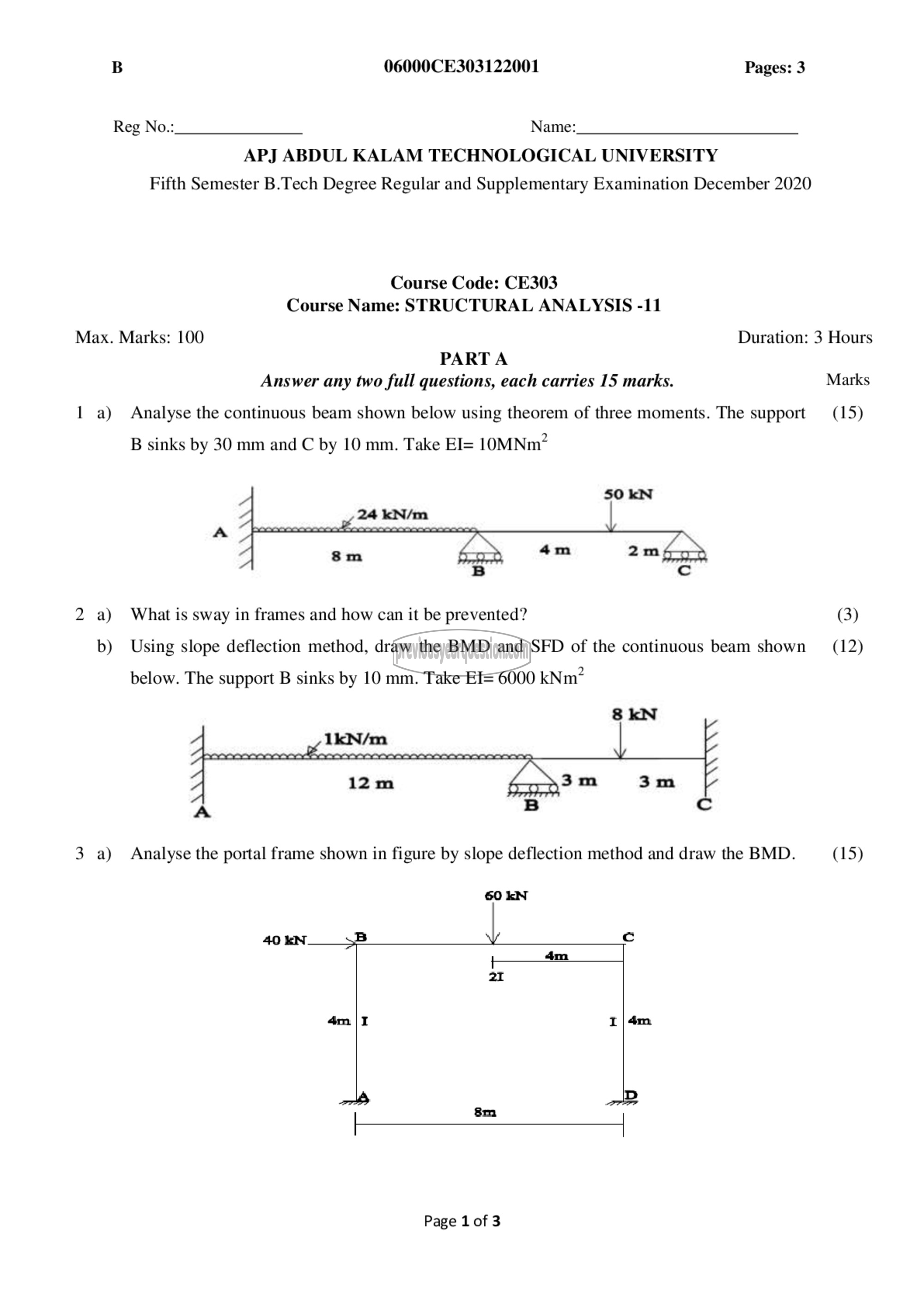

B 06000CE303122001 Pages: 3

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Fifth Semester B.Tech Degree Regular and Supplementary Examination December 2020

Course Code: CE303
Course Name: STRUCTURAL ANALYSIS -11

Max. Marks: 100 Duration: 3 Hours
PART A
Answer any two full questions, each carries 15 marks. Marks
1 a) Analyse the continuous beam shown below using theorem of three moments. The support (15)

B sinks by 30 mm and C by 10 mm. Take = 10MNm*

2 a) What is sway in frames and how can it be prevented? (3)
b) Using slope deflection method, draw the BMD and SFD of the continuous beam shown (12)
below. The support B sinks by 10 mm. Take EI= 6000 ന്‌

A B ಲಿ

3 a) Analyse the portal frame shown in figure by slope deflection method and draw the BMD. (15)

೮0 kN
40 KN 1 ॥ ल
| 4m
27
4m |1 I | 4m
அத ற
ட அ பபப 8m

Page 1 of 3
