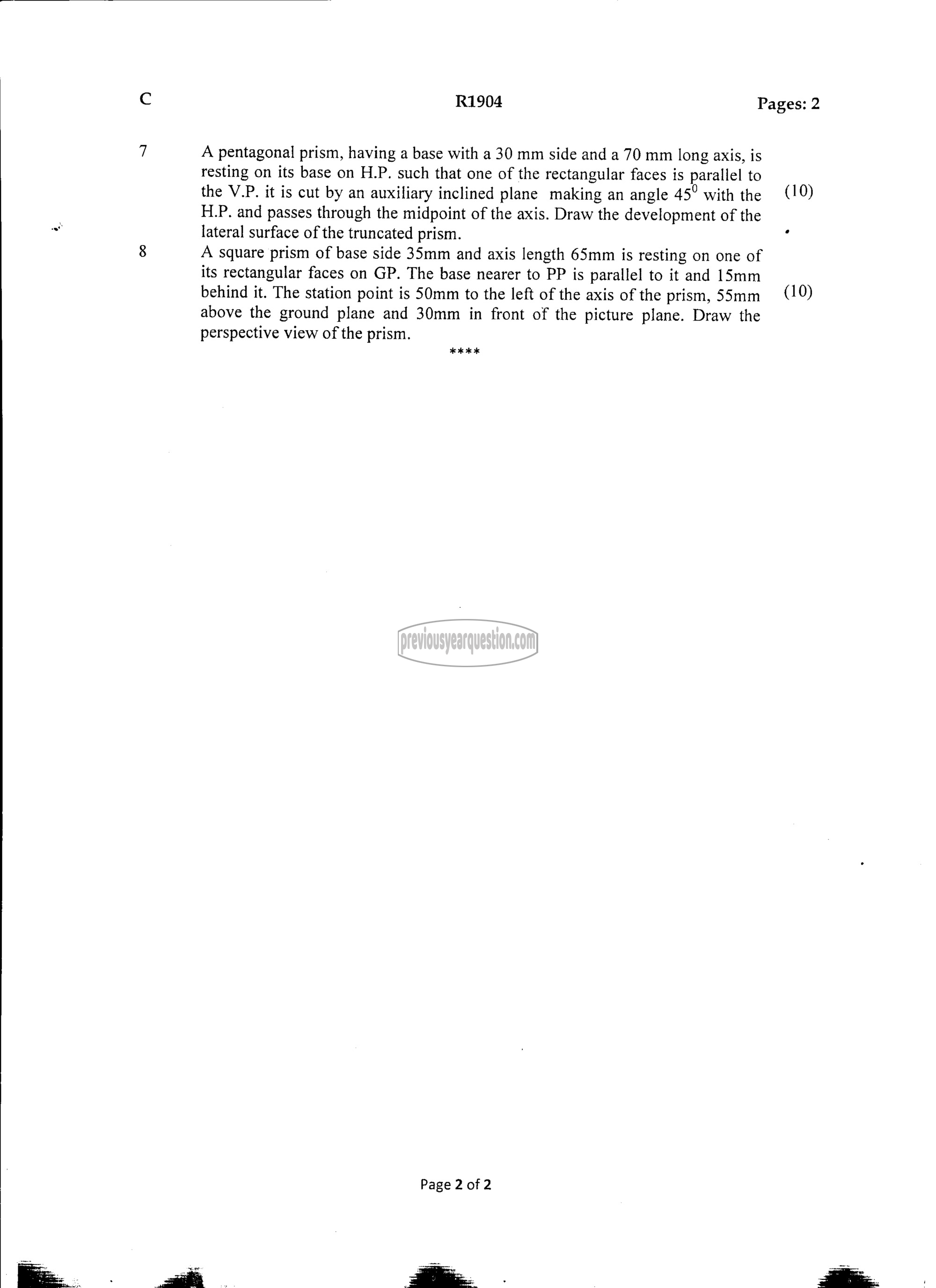

7 A pentagonal prism, having a base with a 30 mm side and a 70 mm long axis, is
resting on its base on H.P. such that one of the rectangular faces is parallel to
the V.P. it is cut by an auxiliary inclined plane making an angle 45° with the (10)
H.P. and passes through the midpoint of the axis. Draw the development of the

~ lateral surface of the truncated prism.

8 A square prism of base side 35mm and axis length 65mm is resting on one of
its rectangular faces on GP. The base nearer to PP is parallel to it and 15mm
behind it. The station point is 50mm to the left of the axis of the prism, 55mm (10)
above the ground plane and 30mm in front of the picture plane. Draw the

perspective view of the prism.
