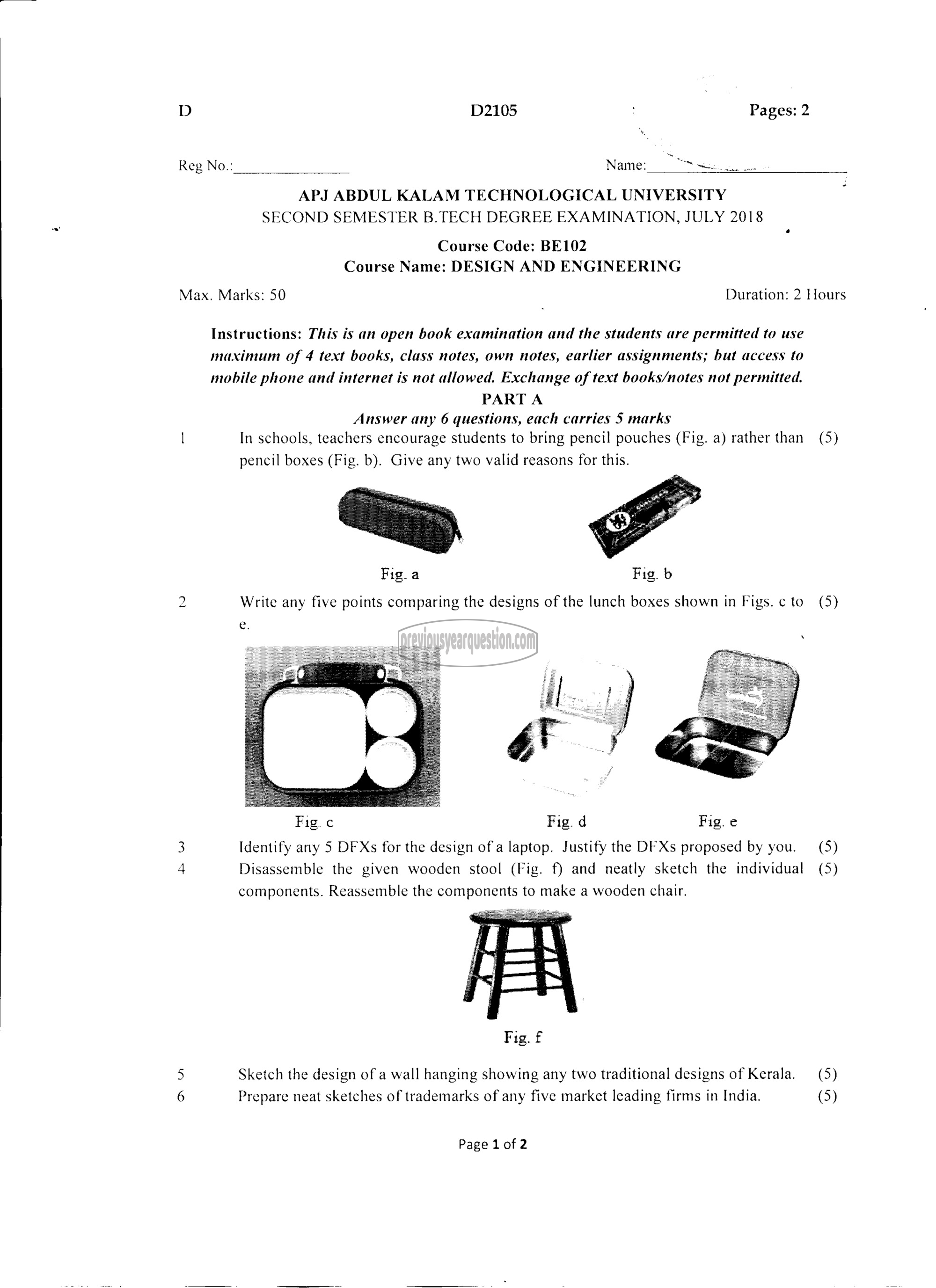

D D2105 : Pages: 2

10

Reg No.: Name: ടം

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SECOND SEMESTER B.TECH DEGREE EXAMINATION, JULY 2018

Course Code: BE102
Course Name: DESIGN AND ENGINEERING

Max. Marks: 50 Duration: 2 Hours

Instructions: This is an open book examination and the students are permitted to use
maximum of 4 text books, class notes, own notes, earlier assignments; but access to
mobile phone and internet is not allowed. Exchange of text books/notes not permitted.
PARTA
Answer any 6 questions, each carries 5 marks
1 In schools, teachers encourage students to bring pencil pouches (Fig. ೩) rather than (5)
pencil boxes (Fig. b). Give any two valid reasons for this.

Fig. a Fig. b

2 Write any five points comparing the designs of the lunch boxes shown in Figs. 01௦ (5)

९.

Fig. ८ Fig. d Fig. ೮

3 Identify any 5 DFXs for the design ofa laptop. Justify the DFXs proposed by you. (5)
4 Disassemble the given wooden stool (Fig. f) and neatly sketch the individual (5)

components. Reassemble the components to make a wooden chair.

Fig. 2

5 Sketch the design of a wall hanging showing any two traditional designs of Kerala. (5)
6 Prepare neat sketches of trademarks of any five market leading firms in India. (5)

Page 1 of 2
