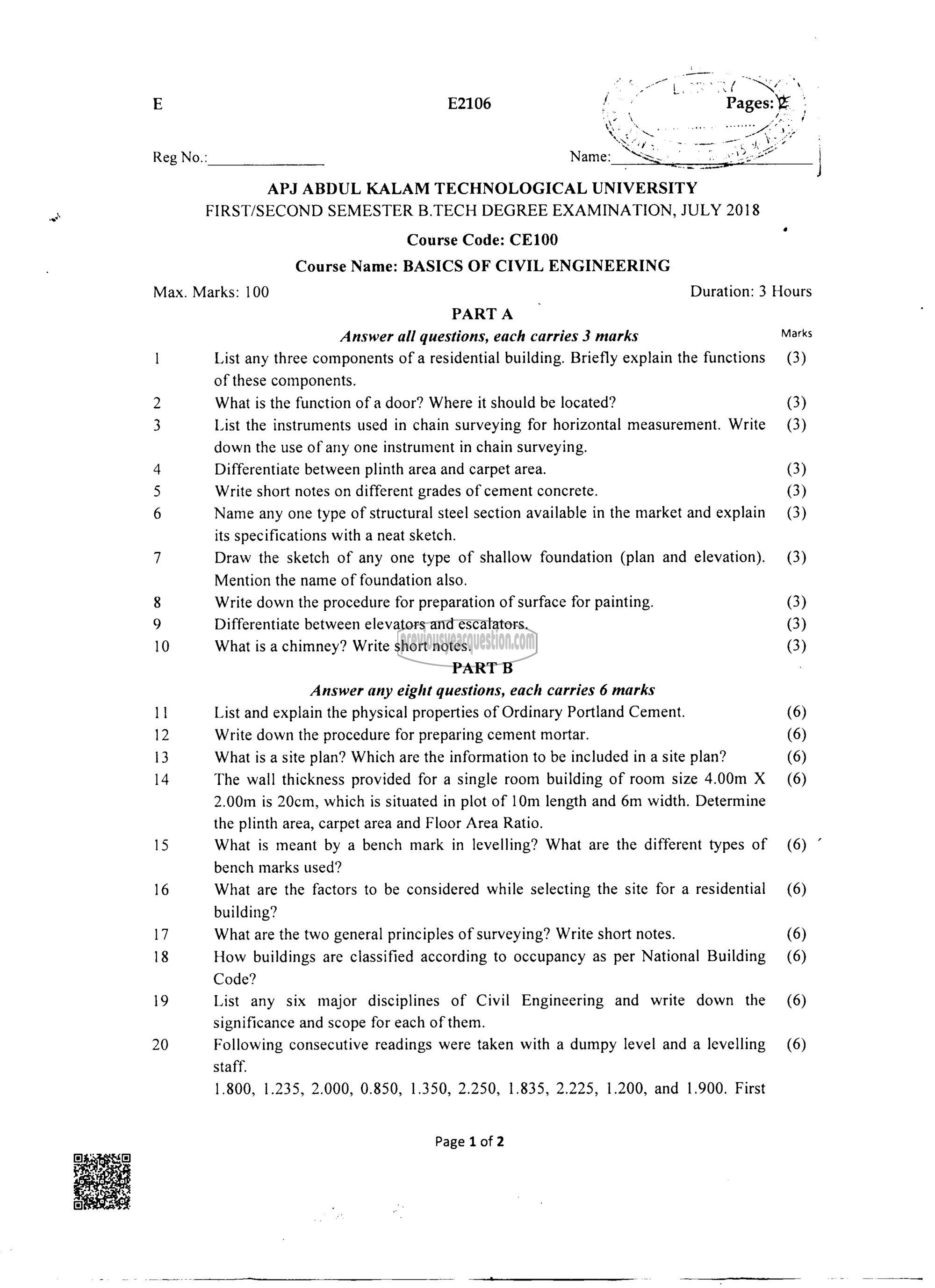

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

FIRST/SECOND SEMESTER B.TECH DEGREE EXAMINATION, JULY 2018

Max. Marks: 100

Course Code: CE100
Course Name: BASICS OF CIVIL ENGINEERING

PART A
Answer all questions, each carries 3 marks
List any three components of a residential building. Briefly explain the functions
of these components.
What is the function of a door? Where it should be located?
List the instruments used in chain surveying for horizontal measurement. Write
down the use of any one instrument in chain surveying.
Differentiate between plinth area and carpet area.
Write short notes on different grades of cement concrete.
Name any one type of structural steel section available in the market and explain
its specifications with a neat sketch.
Draw the sketch of any one type of shallow foundation (plan and elevation).
Mention the name of foundation also.
Write down the procedure for preparation of surface for painting.
Differentiate between elevators and escalators.
What is a chimney? Write short notes.
PART B
Answer any eight questions, each carries 6 marks
List and explain the physical properties of Ordinary Portland Cement.
Write down the procedure for preparing cement mortar.
What is a site plan? Which are the information to be included in a site plan?
The wall thickness provided for a single room building of room size 4.00m X
2.00m is 20cm, which is situated in plot of 10m length and 6m width. Determine
the plinth area, carpet area and Floor Area Ratio.
What is meant by a bench mark in levelling? What are the different types of
bench marks used?
What are the factors to be considered while selecting the site for a residential
building?
What are the two general principles of surveying? Write short notes.
How buildings are classified according to occupancy as per National Building
Code?
List any six major disciplines of Civil Engineering and write down the
significance and scope for each of them.
Following consecutive readings were taken with a dumpy level and a levelling
staff.
1.800, 1.235, 2.000, 0.850, 1.350, 2.250, 1.835, 2.225, 1.200, and 1.900. First

Page 1 of 2

Duration: 3 Hours

Marks

(3)

(3)
(3)

(3)
(3)
(3)

(3)

(3)
(3)
(3)

(6)
(6)
(6)
(6)

(6) `

(6)

(6)
(6)

(6)

(6)
