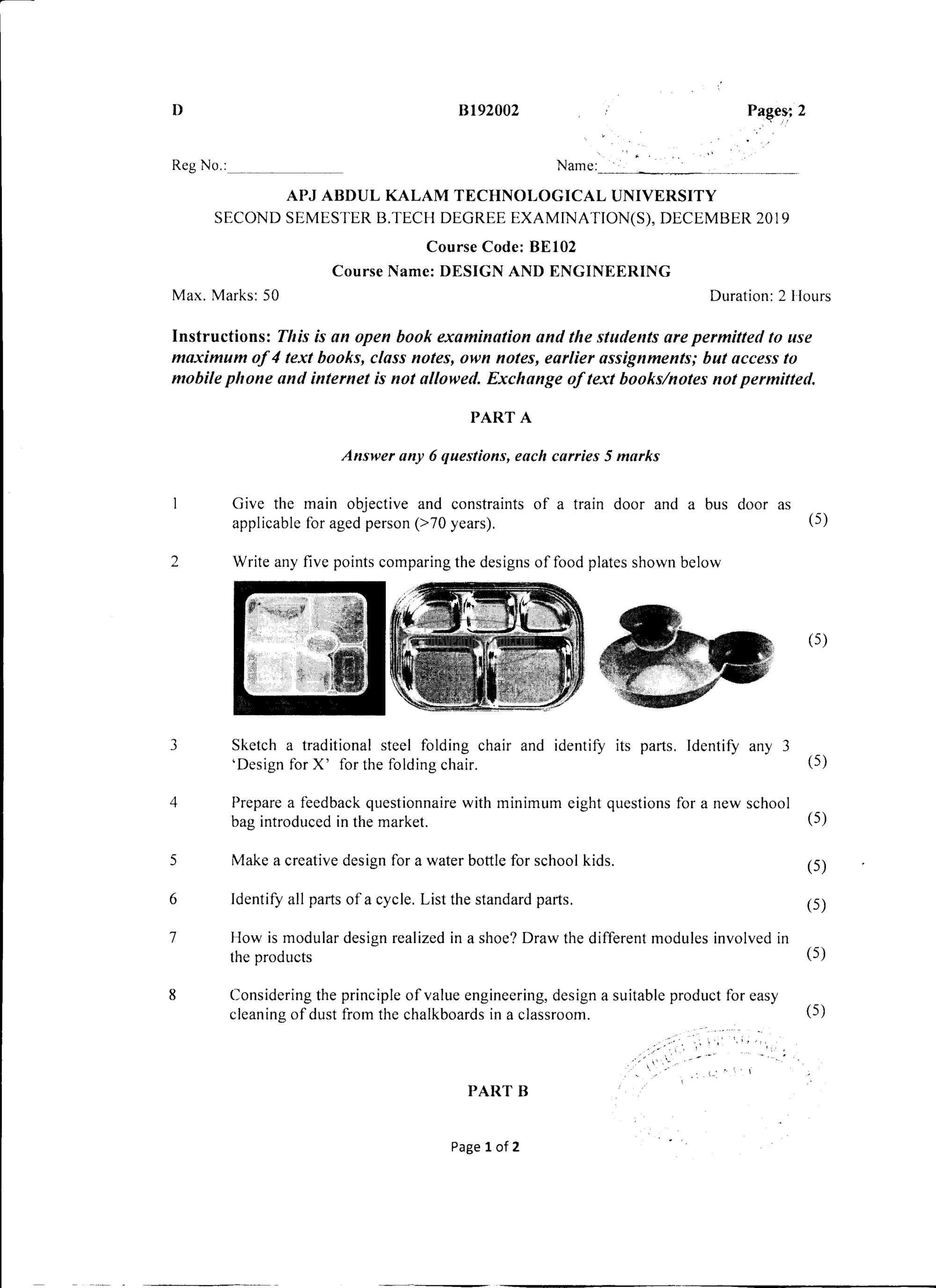

D B192002 ↴∣⋅ Pages; 2

Reg No. _ പണം: `
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SECOND SEMESTER B.TECH DEGREE EXAMINATION(S), DECEMBER 2019
Course Code: BE102
Course Name: DESIGN AND ENGINEERING
Max. Marks: 50 Duration: 2 Hours

Instructions: This is an open book examination and the students are permitted to use
maximum of 4 text books, class notes, own notes, earlier assignments; but access to
mobile phone and internet is not allowed. Exchange of text books/notes not permitted.

PARTA
Answer any 6 questions, each carries 5 marks

1 Give the main objective and constraints of a train door and a bus door 85 __
applicable for aged person (>70 years). (5)

പ

Write any five points comparing the designs of food plates shown below

(5)
3 Sketch a traditional steel folding chair and identify its parts. Identify any 3
‘Design for X’ for the folding chair. (5)
4 Prepare a feedback questionnaire with minimum eight questions for a new school
bag introduced in the market. (5)
5 Make a creative design for a water bottle for school kids. (5)
6 Identify all parts of a cycle. List the standard parts. (5)
7 How is modular design realized in a shoe? Draw the different modules involved in
the products (5)
8 Considering the principle of value engineering, design a suitable product for easy
cleaning of dust from the chalkboards in a classroom. (5)

PART B
