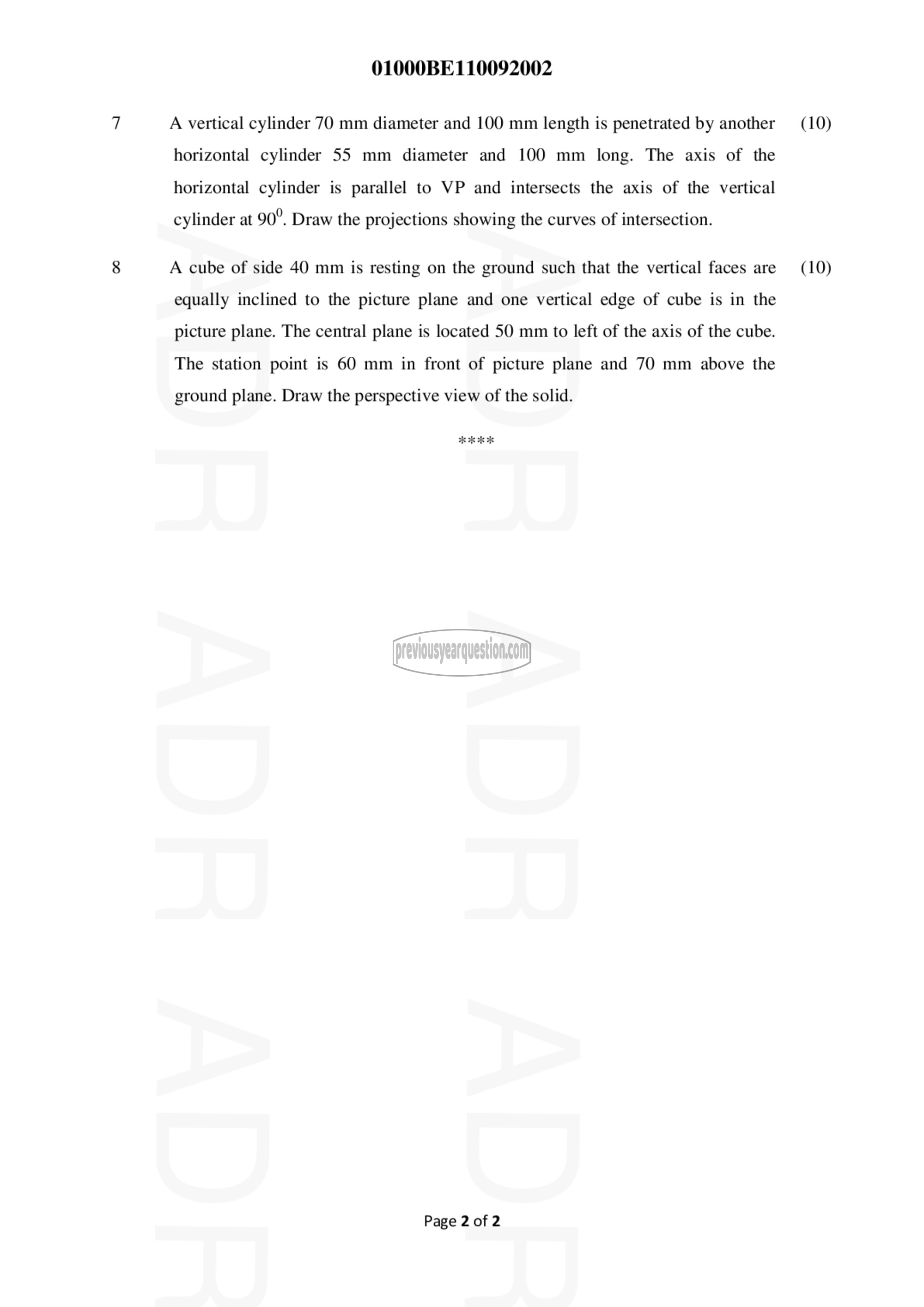

01000BE110092002

A vertical cylinder 70 mm diameter and 100 mm length is penetrated by another (10)
horizontal cylinder 55 mm diameter and 100 mm long. The axis of the
horizontal cylinder is parallel to VP and intersects the axis of the vertical

cylinder at 90°. Draw the projections showing the curves of intersection.

A cube of side 40 mm is resting on the ground such that the vertical faces are (10)
equally inclined to the picture plane and one vertical edge of cube is in the
picture plane. The central plane is located 50 mm to left of the axis of the cube.
The station point is 60 mm in front of picture plane and 70 mm above the

ground plane. Draw the perspective view of the solid.

Page 2 of 2
