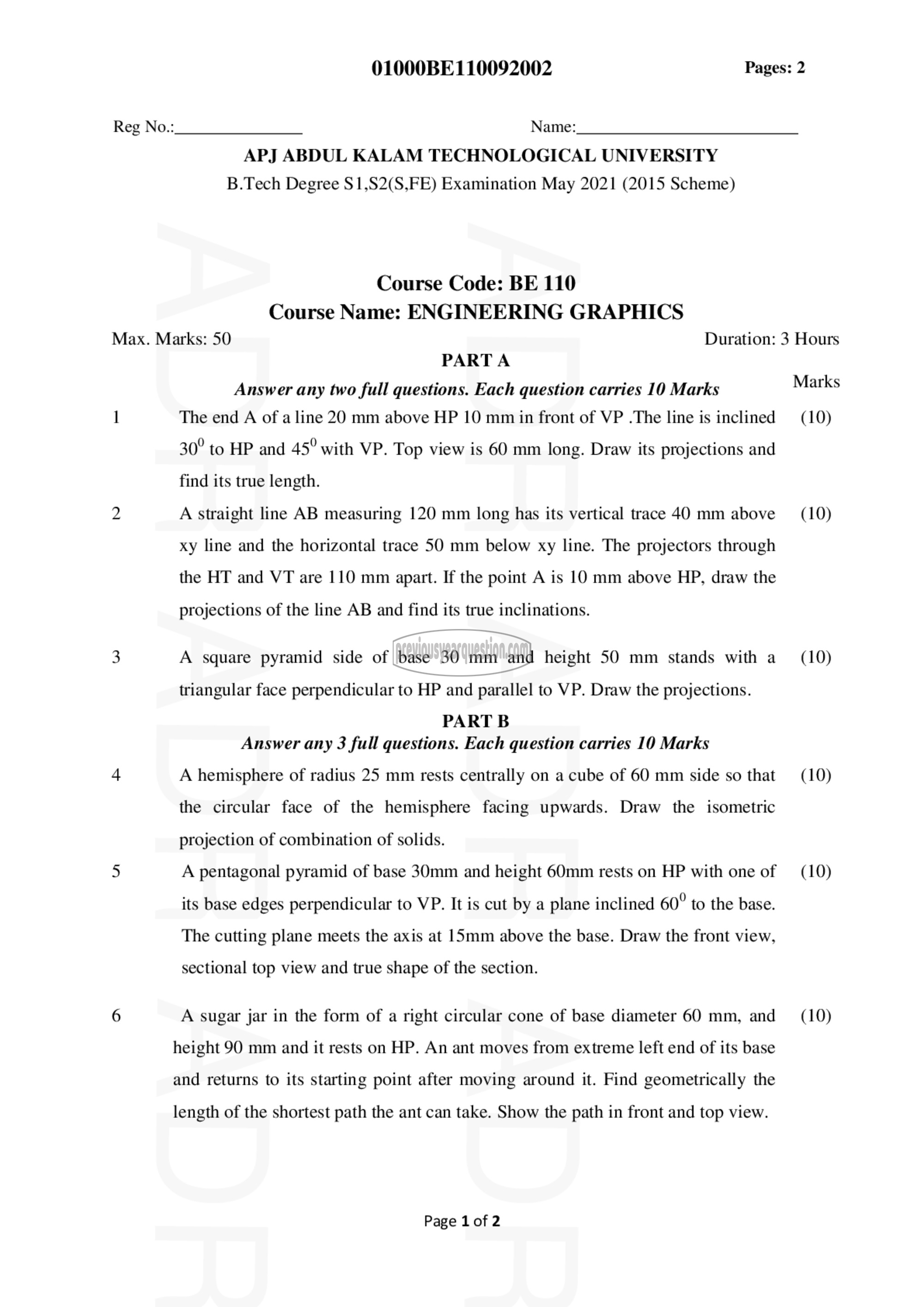

01000BE110092002 Pages: 2

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
B.Tech Degree S1,S2(S,FE) Examination May 2021 (2015 Scheme)

Course Code: BE 110
Course Name: ENGINEERING GRAPHICS

Max. Marks: 50 Duration: 3 Hours
PARTA
Answer any two full questions. Each question carries 10 Marks Marks
1 The end A of a line 20 mm above HP 10 mm in front of VP .The line is inclined (10)

30° to HP and 45° with VP. Top view is 60 mm long. Draw its projections and
find its true length.
2 A straight line AB measuring 120 mm long has its vertical trace 40 mm above (10)
xy line and the horizontal trace 50 mm below xy line. The projectors through
the HT and VT are 110 mm apart. If the point A is 10 mm above HP, draw the

projections of the line AB and find its true inclinations.

3 A square pyramid side of base 30 mm and height 50 mm stands with 8 (10)

triangular face perpendicular to HP and parallel to VP. Draw the projections.
PART छ
Answer any 3 full questions. Each question carries 10 Marks

4 A hemisphere of radius 25 mm rests centrally on a cube of 60 mm side so that (10)
the circular face of the hemisphere facing upwards. Draw the isometric
projection of combination of solids.

5 A pentagonal pyramid of base 30mm and height 60mm rests on HP with one of (10)
its base edges perpendicular to VP. It is cut by a plane inclined 60° to the base.
The cutting plane meets the axis at 15mm above the base. Draw the front view,

sectional top view and true shape of the section.

6 A sugar jar in the form of a right circular cone of base diameter 60 mm, and (10)
height 90 mm and it rests on HP. An ant moves from extreme left end of its base
and returns to its starting point after moving around it. Find geometrically the

length of the shortest path the ant can take. Show the path in front and top view.

Page 1 of 2
