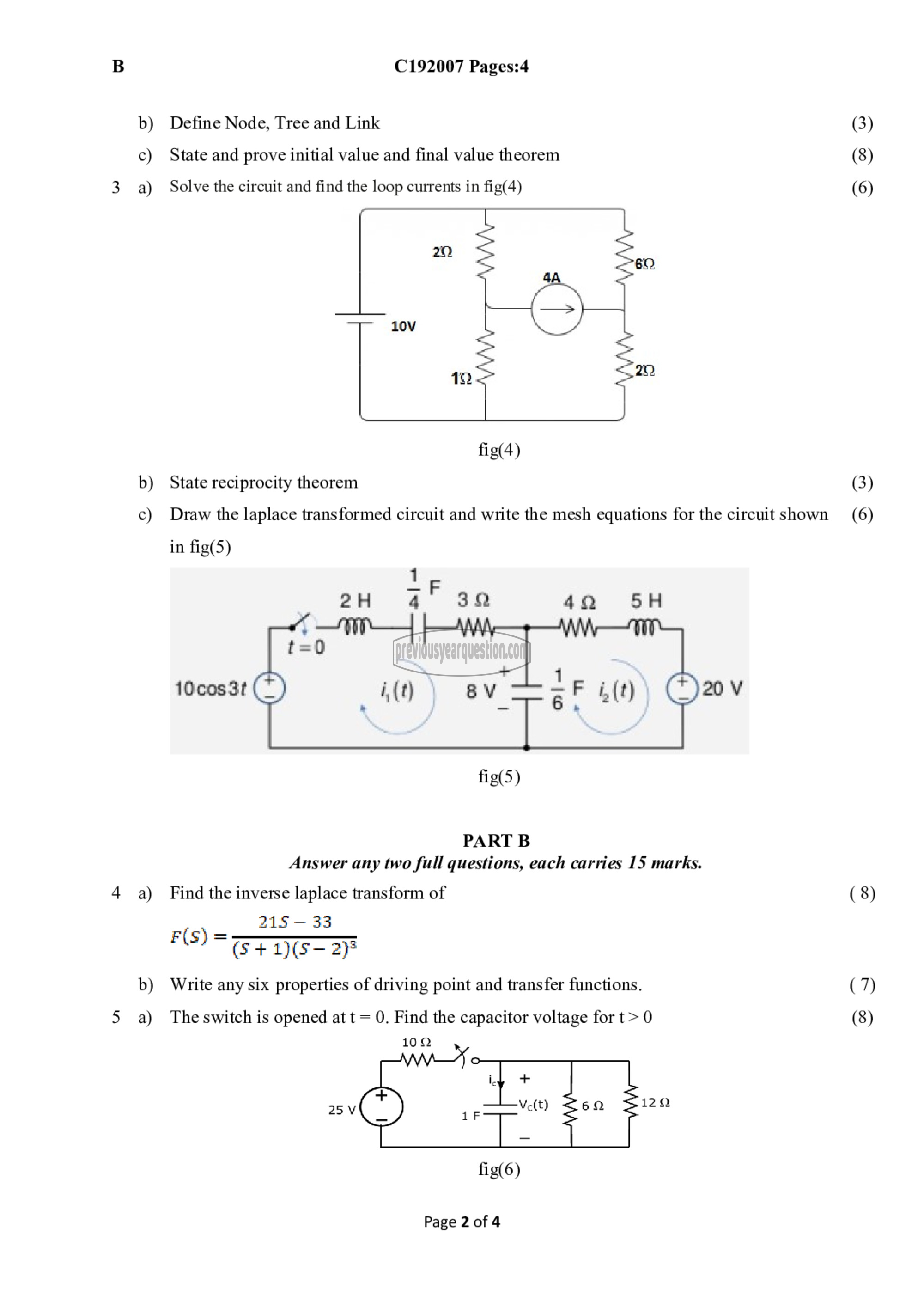

B C192007 Pages:4

b) Define Node, Tree and Link (3)
c) State and prove initial value and final value theorem (8)
3 a) Solve the circuit and find the loop currents in fig(4) (6)

8
WWW
۸۸/۸۷
|

fig(4)
b) State reciprocity theorem (3)

c) Draw the laplace transformed circuit and write the mesh equations for the circuit shown (6)

in fig(5)
1000831
fig(5)
PART B
Answer any two full questions, each carries 15 marks.
4 a) Find the inverse laplace transform of (8)
(s) 215 — 33
ತು ‏کس ری‎
b) Write any six properties of driving point and transfer functions. (7)

5 a) Theswitch is opened at t = 0. Find the capacitor voltage for t > 0 (8)

Page 2 of 4
