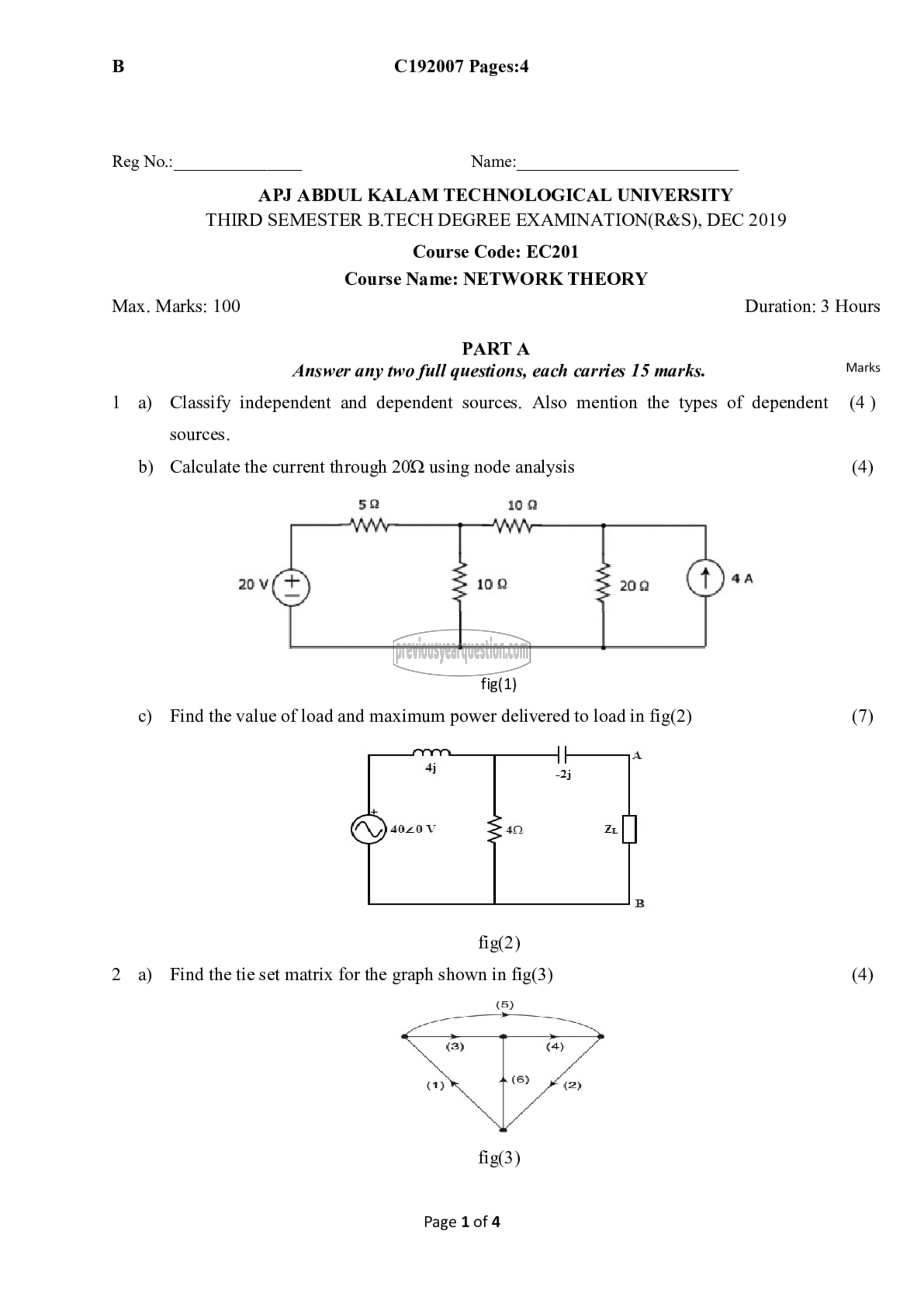

B C192007 Pages:4

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
THIRD SEMESTER B.TECH DEGREE EXAMINATION(R&S), DEC 2019
Course Code: EC201
Course Name: NETWORK THEORY
Max. Marks: 100 Duration: 3 Hours

PART A
Answer any two full questions, each carries 15 marks. Marks

1 ஐ Classify independent and dependent sources. Also mention the types of dependent (4)

sources.
b) Calculate the current through 202 using node analysis (4)
59 10 2
20 ५ (+) 209 (1) 4A
fig(1)
c) Find the value of load and maximum power delivered to load in fig(2) (7)
A
ಎ 40൧൧൯
B
fig(2)
2 a) Find the tie set matrix for the graph shown in fig(3) (4)

fig(3)

Page 1of 4
