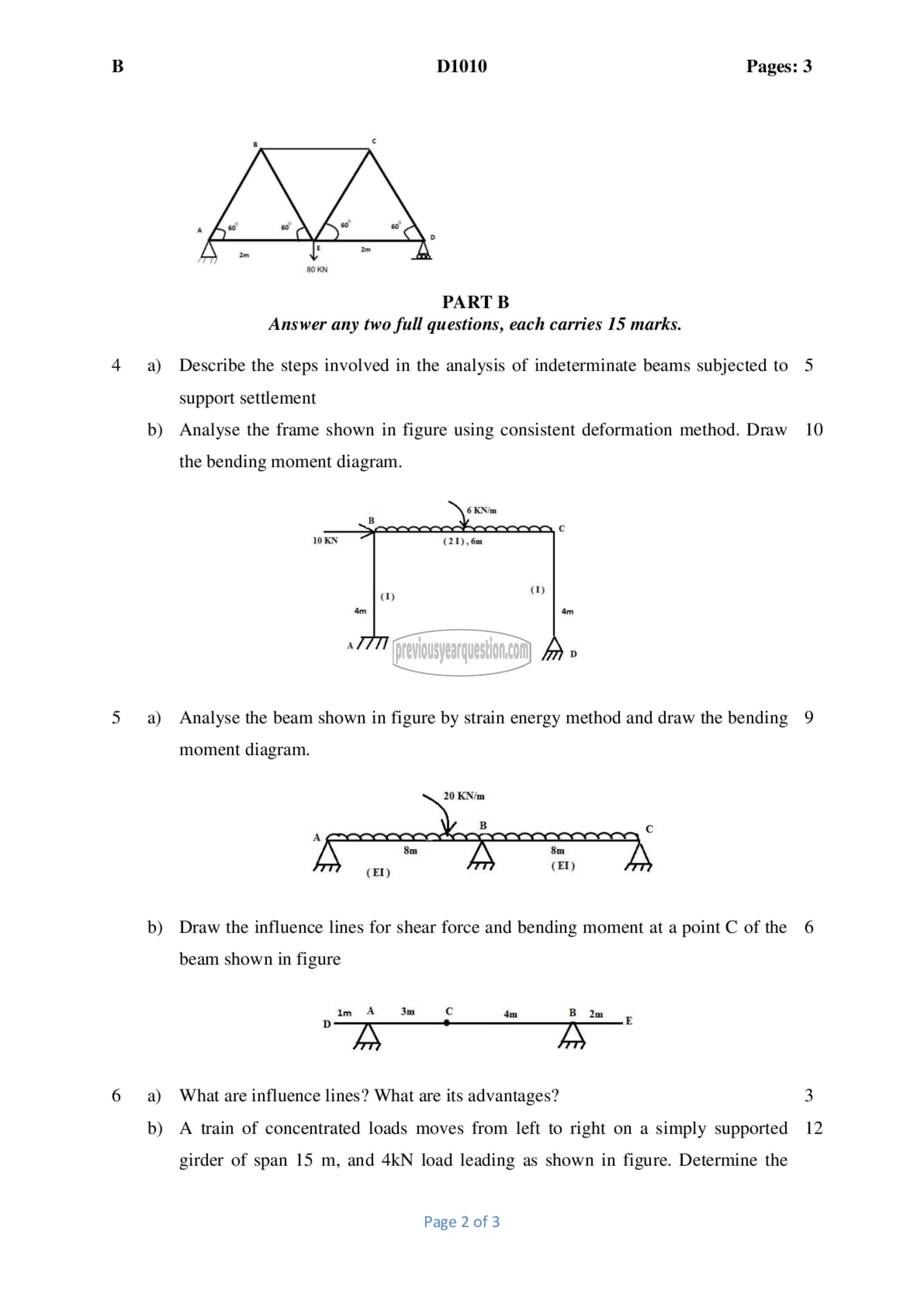

PART B
Answer any two full questions, each carries 15 marks.
a) Describe the steps involved in the analysis of indeterminate beams subjected to
support settlement
b) Analyse the frame shown in figure using consistent deformation method. Draw

the bending moment diagram.

a) Analyse the beam shown in figure by strain energy method and draw the bending

moment diagram.

ടല KN/m

b) Draw the influence lines for shear force and bending moment at a point C of the

beam shown in figure

a) What are influence lines? What are its advantages?
b) A train of concentrated loads moves from left to right on a simply supported

girder of span 15 m, and 4111 load leading as shown in figure. Determine the

Page 2 of 3

10

3
12
