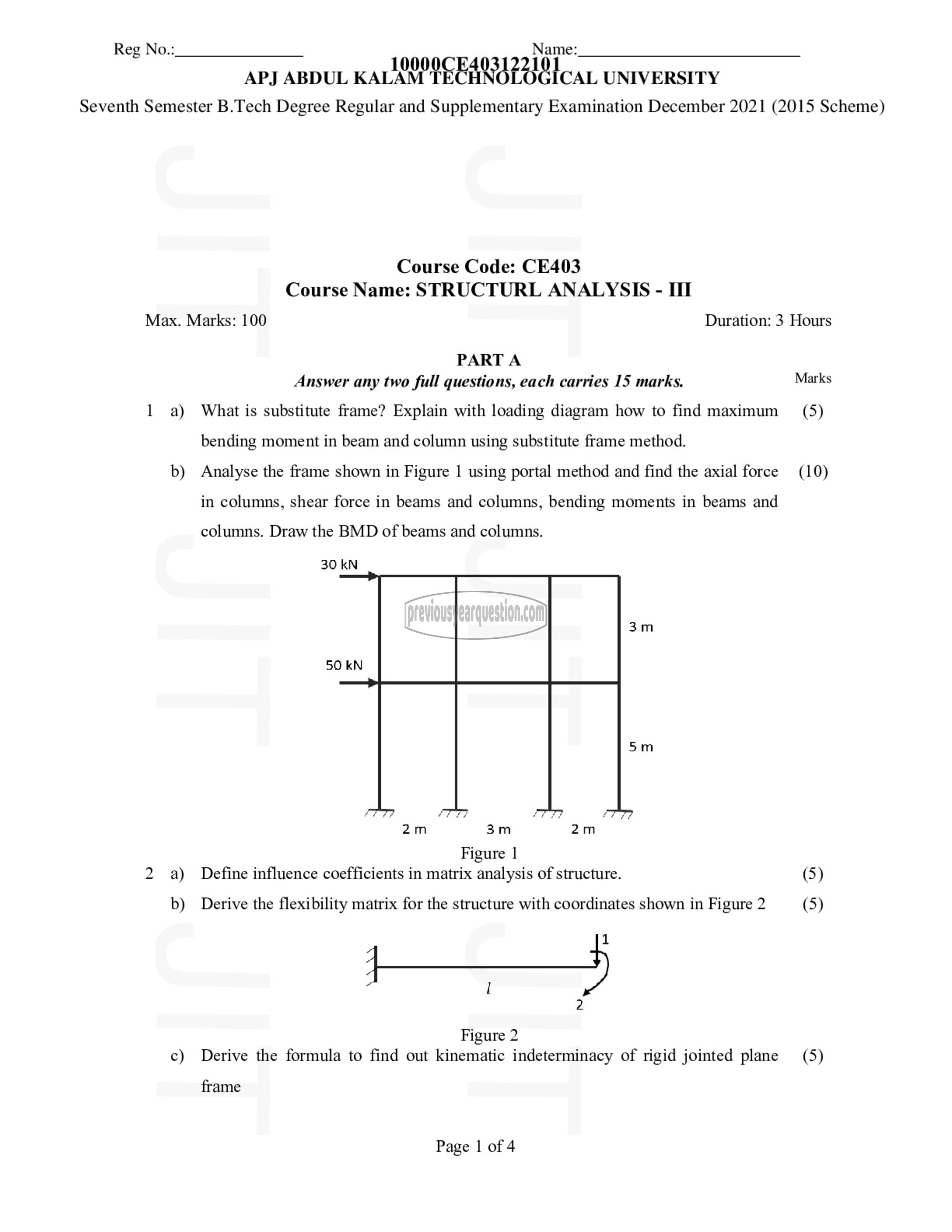

APJ ABDUL KALAM 1601೫611, UNIVERSITY
Seventh Semester B.Tech Degree Regular and Supplementary Examination December 2021 (2015 Scheme)

Course Code: CE403
Course Name: STRUCTURL ANALYSIS - III

Max. Marks: 100 Duration: 3 Hours
PART A
Answer any two full questions, each carries 15 marks. Marks
1 a) What is substitute frame? Explain with loading diagram how to find maximum (5)
bending moment in beam and column using substitute frame method.
b) Analyse the frame shown in Figure 1 using portal method and find the axial force (10)
in columns, shear force in beams and columns, bending moments in beams and
columns. Draw the BMD of beams and columns.

30 kN
1

2m 3m 2m

Figure 1
2 a) Define influence coefficients in matrix ‘analysis of structure. (5)
b) Derive the flexibility matrix for the structure with coordinates shown in Figure 2 (5)
हू: 1
< 1
2
Figure 2

c) Derive the formula to find out kinematic indeterminacy of rigid jointed plane (5)

frame
