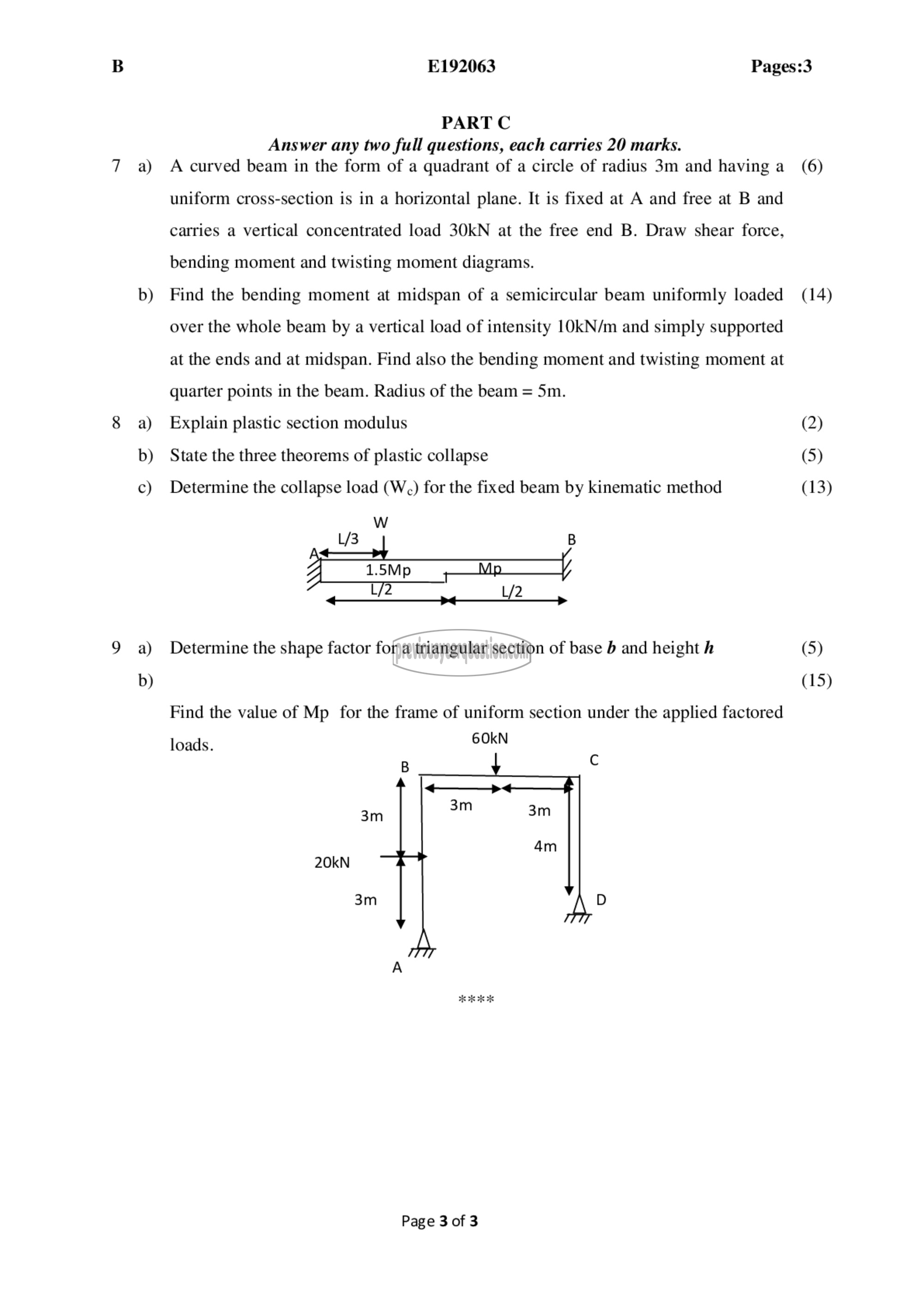

E192063 Pages:3

PART (^

Answer any two full questions, each carries 20 marks.
A curved beam in the form of a quadrant of a circle of radius 3m and having a
uniform cross-section is in a horizontal plane. It is fixed at A and free at B and
carries a vertical concentrated load 301214 at the free end 8. Draw shear force,
bending moment and twisting moment diagrams.
Find the bending moment at midspan of a semicircular beam uniformly loaded
over the whole beam by a vertical load of intensity 1011/11) and simply supported
at the ends and at midspan. Find also the bending moment and twisting moment at
quarter points in the beam. Radius of the beam = 5൩.
Explain plastic section modulus
State the three theorems of plastic collapse

Determine the collapse load (७४८) for the fixed beam by kinematic method

۸۷
ണു്‌ 3 B
_ ட] ‏ابي‎
‎L/2 L/2

Determine the shape factor for a triangular section of base 0 and height h

Find the value of Mp for the frame of uniform section under the applied factored

loads. 60kN

ಗ್‌ m

20kN ۱

Page 3 of 3

(6)

(14)

(2)
(5)
(13)

(5)
(15)
