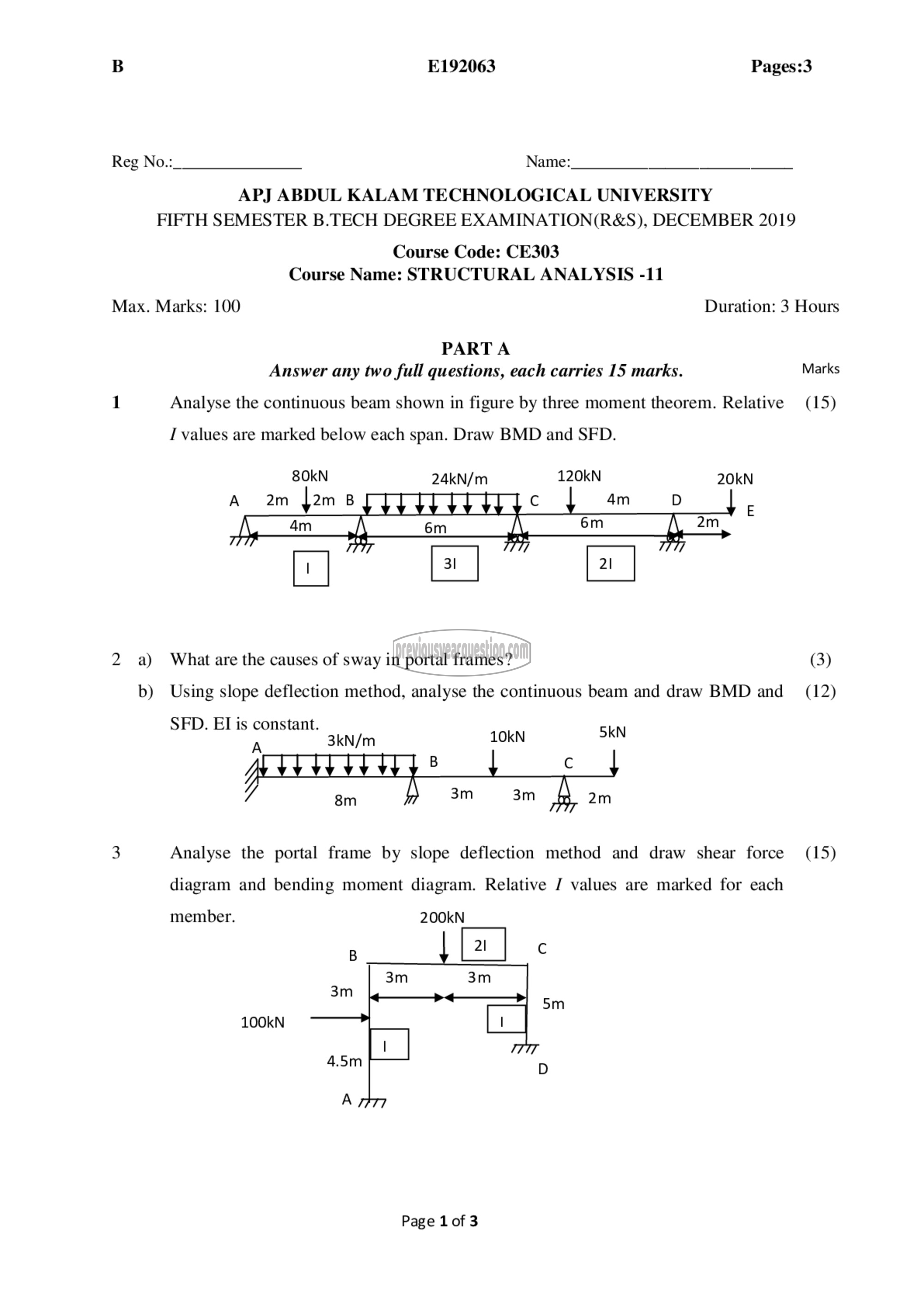

B E192063 Pages:3

Reg No.:_ Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
FIFTH SEMESTER B.TECH DEGREE EXAMINATION(R&S), DECEMBER 2019

Course Code: CE303
Course Name: STRUCTURAL ANALYSIS -11

Max. Marks: 100 Duration: 3 Hours
PARTA

Answer any two full questions, each carries 15 marks. Marks

1 Analyse the continuous beam shown in figure by three moment theorem. Relative (15)

1 values are marked below each span. Draw BMD and SFD.

80kN 24kN/m 120kN 20kN
2m 2) B

A

2 a) What are the causes of sway in portal frames? (3)
0) Using slope deflection method, analyse the continuous beam and draw BMD வம்‌ (12)

SFD. EI is constant.

A 3kN/m 1000 कसम] ப
8m 3m 3m 3 20
3 Analyse the portal frame by slope deflection method and draw shear force (15)

diagram and bending moment diagram. Relative 1 values are marked for each

member. 200kN

100kN

Page 1௦13
