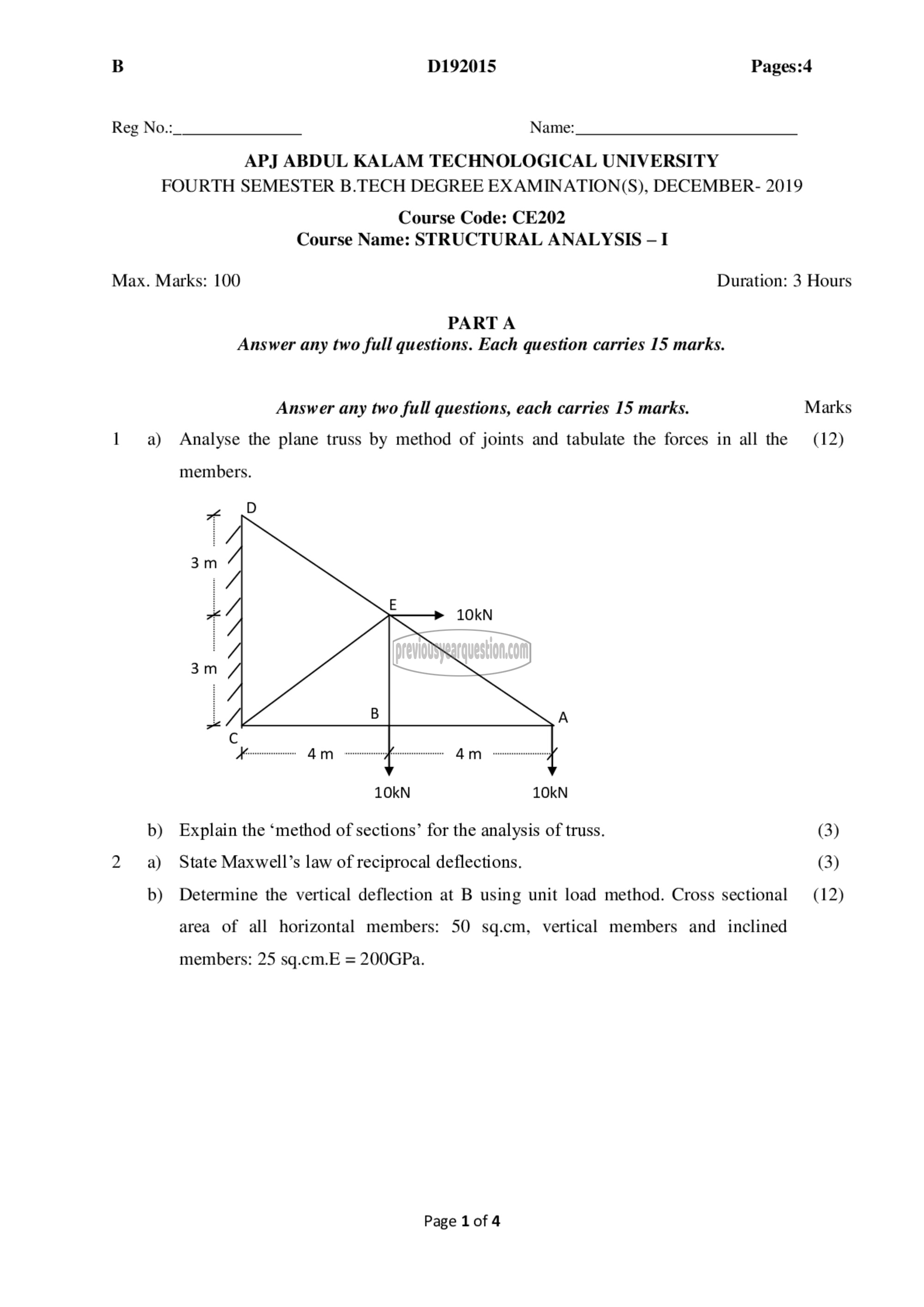

B D192015 Pages:4

Reg No.:_ Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
FOURTH SEMESTER B.TECH DEGREE EXAMINATION(S), DECEMBER- 2019

Course Code: CE202
Course Name: STRUCTURAL ANALYSIS - 1

Max. Marks: 100 Duration: 3 Hours

PART A
Answer any two full questions. Each question carries 15 marks.

Answer any two full questions, each carries 15 marks. Marks
1a) Analyse the plane truss by method of joints and tabulate the forces in all the (12)

members.

10kN 10kN
b) Explain the ‘method of sections’ for the analysis of truss. (3)
2 9) State Maxwell’s law of reciprocal deflections. (3)

b) Determine the vertical deflection at B using unit load method. Cross sectional (12)
area of all horizontal members: 50 sq.cm, vertical members and _ inclined

members: 25 sq.cm.E = 200GPa.

Page 1of 4
