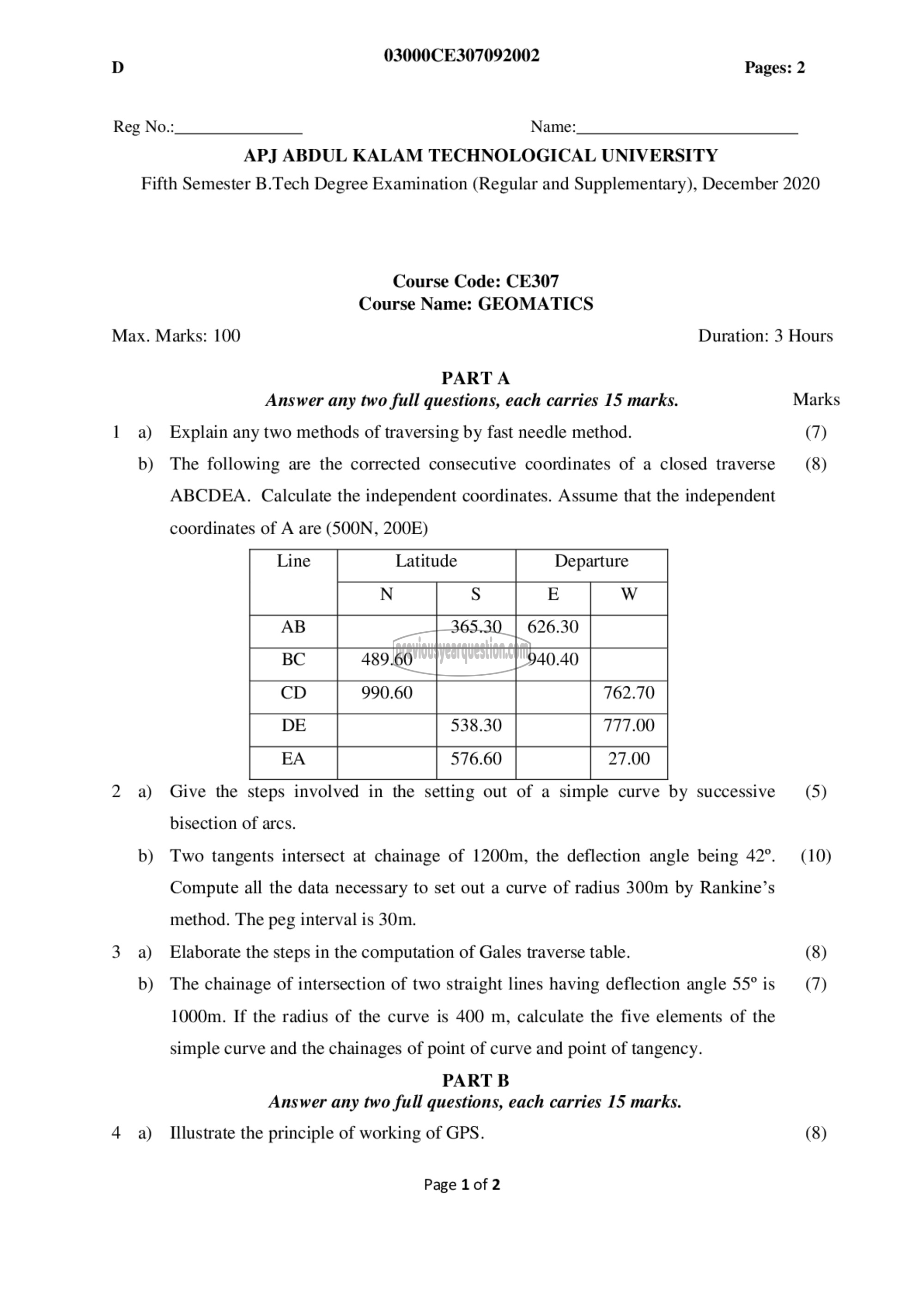

> 03000CE307092002 Pages: 2

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Fifth Semester B.Tech Degree Examination (Regular and Supplementary), December 2020

Course Code: CE307
Course Name: GEOMATICS

Max. Marks: 100 Duration: 3 Hours
PARTA
Answer any two full questions, each carries 15 marks. Marks
1 a) Explain any two methods of traversing by fast needle method. (7)

b) The following are the corrected consecutive coordinates of a closed traverse (8)
ABCDEA. Calculate the independent coordinates. Assume that the independent
coordinates of A are (SOON, 200E)

Latitude Departure
5 E WwW
365.30 | 626.30

ணட பானை
‏ا ا‎ |

2 a) Give the steps involved in the setting out of a simple curve by successive (5)

bisection of arcs.

b) Two tangents intersect at chainage of 1200m, the deflection angle being 425. (10)
Compute all the data necessary to set out a curve of radius 300m by Rankine’s
method. The peg interval is 30m.

3 ஐ Elaborate the steps in the computation of Gales traverse table. (8)

b) The chainage of intersection of two straight lines having deflection angle 55° 18 (7)
1000m. If the radius of the curve is 400 m, calculate the five elements of the
simple curve and the chainages of point of curve and point of tangency.

PART 13
Answer any two full questions, each carries 15 marks.

4 a) Illustrate the principle of working of GPS. (8)

Page 1 of 2
