Reg No.:

00000AU411121903
Pages: 2

Name:

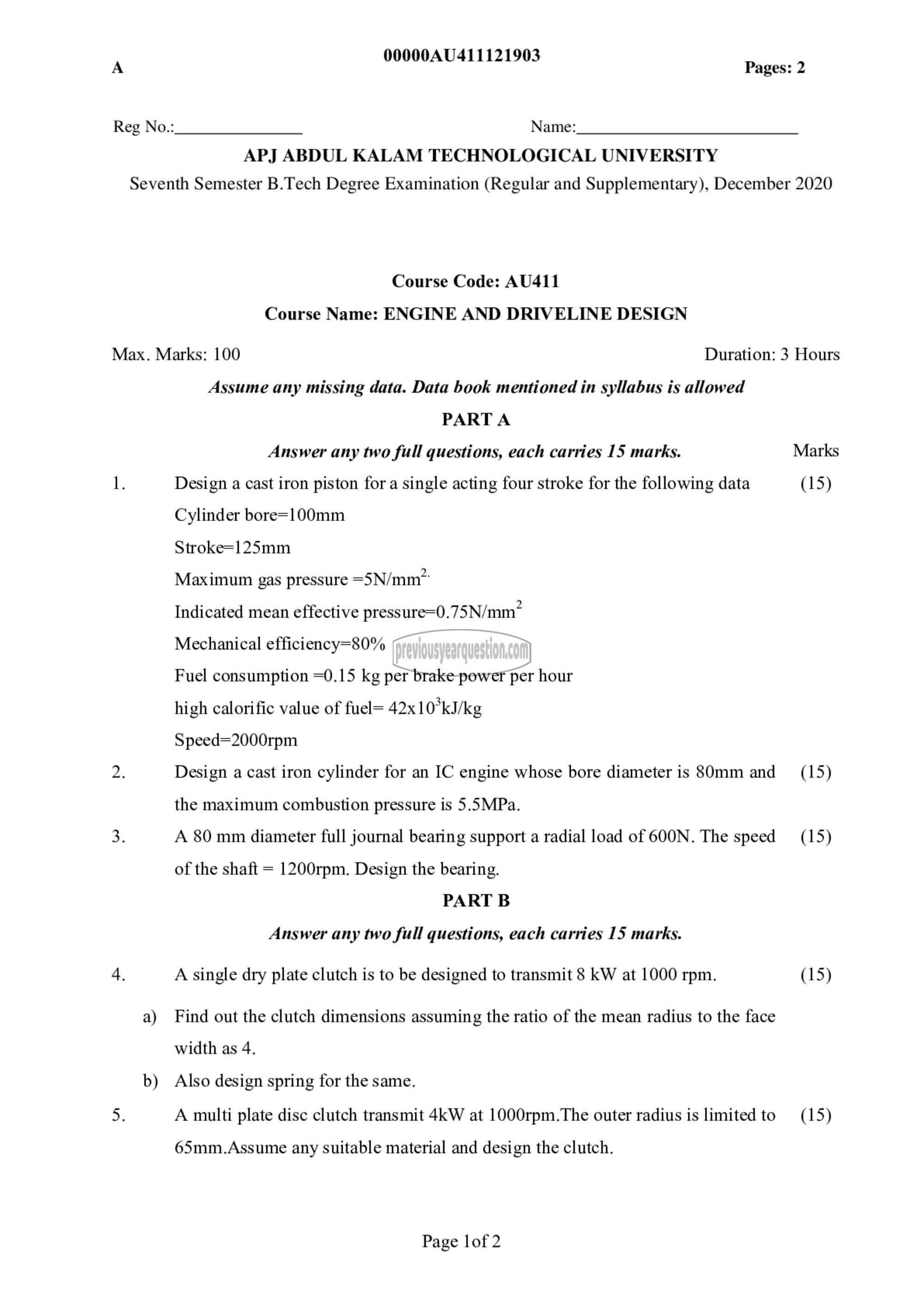

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Seventh Semester B.Tech Degree Examination (Regular and Supplementary), December 2020

Course Code: AU411
Course Name: ENGINE AND DRIVELINE DESIGN

Max. Marks: 100 Duration: 3 Hours

2.
3.
4.
a)
b)
5.

Assume any missing data. Data book mentioned in syllabus is allowed

PART A
Answer any two full questions, each carries 15 marks. Marks
Design a cast iron piston for 8 single acting four stroke for the following data (15)

Cylinder bore=100mm
Stroke=125mm
Maximum gas pressure =5N/mm
Indicated mean effective pressure=0.75N/mm?
Mechanical efficiency=80%
Fuel consumption 50.15 kg per brake power per hour
high calorific value of fuel= 42x 10°kJ/kg
Speed=2000rpm
Design a cast iron cylinder for an IC engine whose bore diameter is 80mm and (15)
the maximum combustion pressure is 5.5MPa.
A 80 mm diameter full journal bearing support a radial load of 600N. The speed (15)
of the shaft = 1200rpm. Design the bearing.
PART B
Answer any two full questions, each carries 15 marks.

A single dry plate clutch is to be designed to transmit 8 kW at 1000 rpm. (15)

Find out the clutch dimensions assuming the ratio of the mean radius to the face

width as 4.

Also design spring for the same.

A multi plate disc clutch transmit 4kW at 1000rpm.The outer radius is limited 10 (15)

65mm.Assume any suitable material and design the clutch.

Page lof 2
