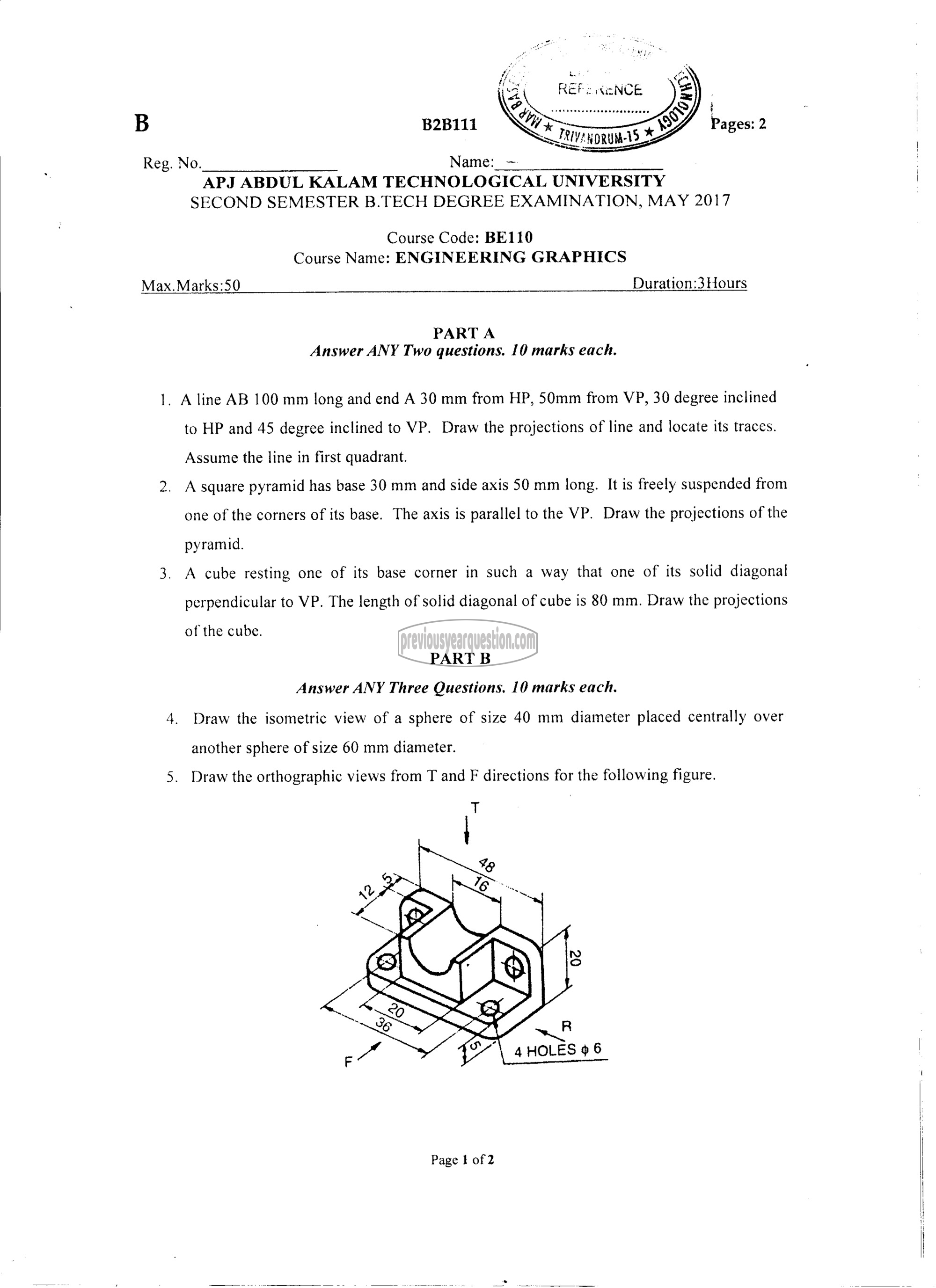

Reg. No. Name:_—

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SECOND SEMESTER B.TECH DEGREE EXAMINATION, MAY 2017

Course Code: BE110
Course Name: ENGINEERING GRAPHICS

Max.Marks:50 222 0/8000:31100೧5

1:

4.

5

PART A
Answer ANY Two questions. 10 marks each.

A line AB 100 mm long and end A 30 mm from HP, 50mm from VP, 30 degree inclined
to HP and 45 degree inclined to VP. Draw the projections of line and locate its traces.
Assume the line in first quadrant.

A square pyramid has base 30 mm and side axis 50 mm long. It is freely suspended from
one of the corners of its base. The axis is parallel to the VP. Draw the projections of the
pyramid.

A cube resting one of its base corner in such a way that one of its solid diagonal
perpendicular to VP. The length of solid diagonal of cube is 80 mm. Draw the projections
of the cube.

PART B
Answer ANY Three Questions. 10 marks each.

Draw the isometric view of a sphere of size 40 mm diameter placed centrally over

another sphere of size 60 mm diameter.

Draw the orthographic views from T and F directions for the following figure.
