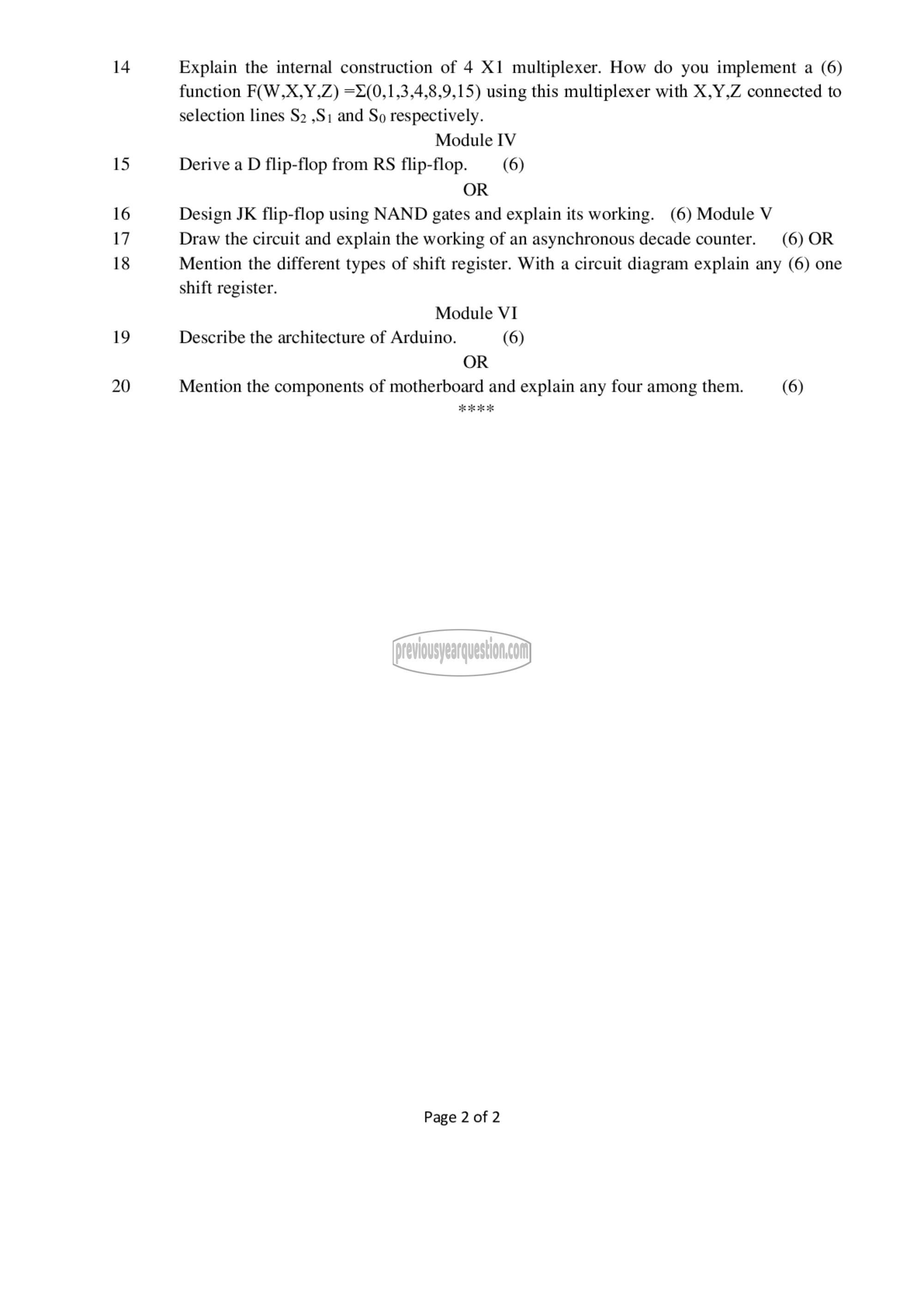

Explain the internal construction of 4 X1 multiplexer. How do you implement a (6)
function F(W,X,Y,Z) =2(0,1,3,4,8,9,15) using this multiplexer with X,Y,Z connected to
selection lines 52 .൭ and So respectively.
Module IV
Derive a D flip-flop from RS flip-flop. (6)
OR
Design JK flip-flop using NAND gates and explain its working. (6) Module V
Draw the circuit and explain the working of an asynchronous decade counter. (6) OR
Mention the different types of shift register. With a circuit diagram explain any (6) one
shift register.
Module VI
Describe the architecture of Arduino. (6)
OR
Mention the components of motherboard and explain any four among them. (6)
