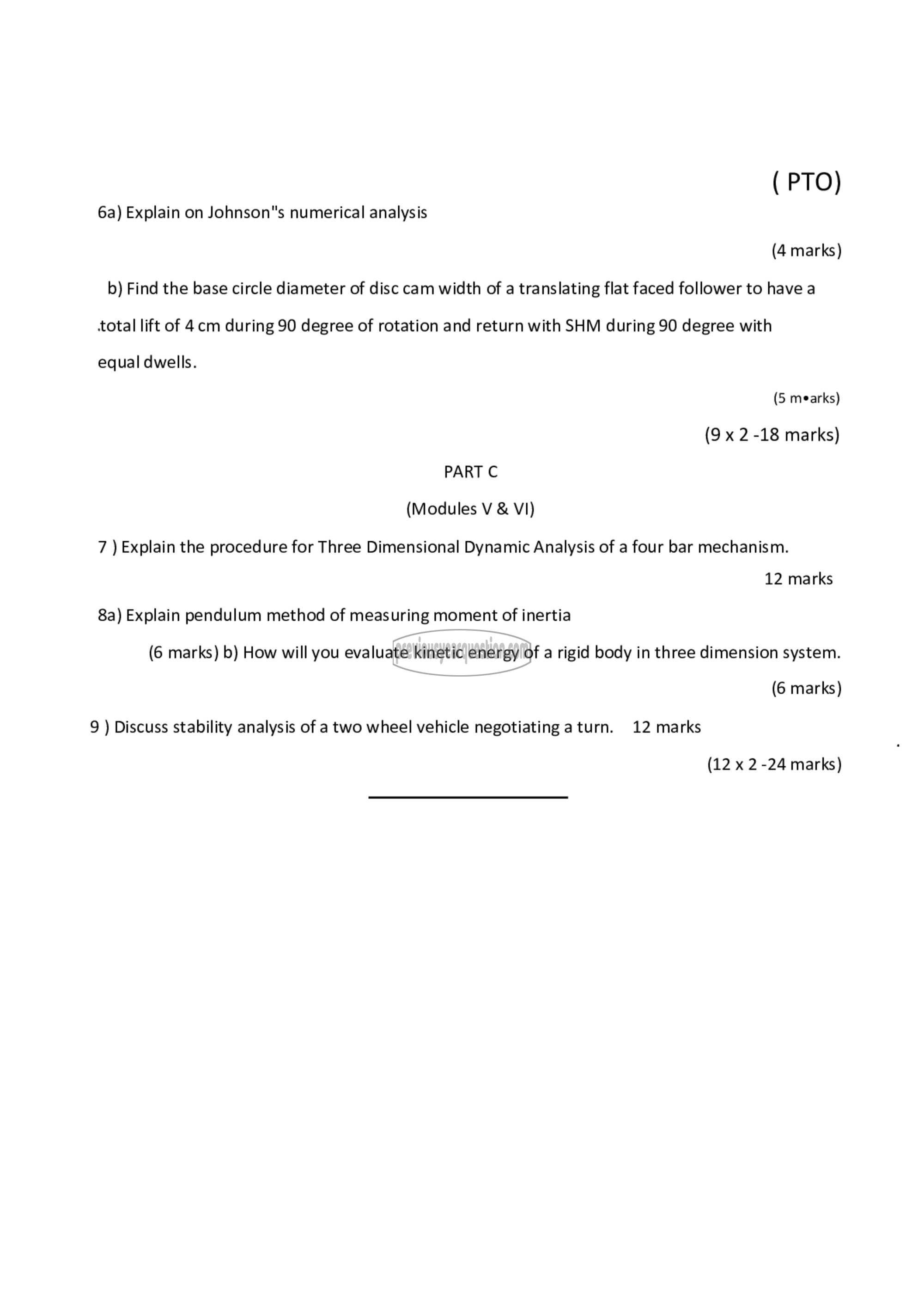

( PTO)

6a) Explain on Johnson"s numerical analysis
(4 marks)
b) Find the base circle diameter of disc cam width of a translating flat faced follower to have a
total lift of 4 cm during 90 degree of rotation and return with SHM during 90 degree with
equal dwells.
(5 mearks)
(9 x 2 -18 marks)
PART C
(Modules ۷ & VI)

7 ) Explain the procedure for Three Dimensional Dynamic Analysis of a four bar mechanism.

12 marks
8a) Explain pendulum method of measuring moment of inertia
(6 marks) b) How will you evaluate kinetic energy of a rigid body in three dimension system.
(6 marks)
9 ) Discuss stability analysis of a two wheel vehicle negotiating aturn. 12 marks

(12 x 2-24 marks)
