Reg. No: Name:

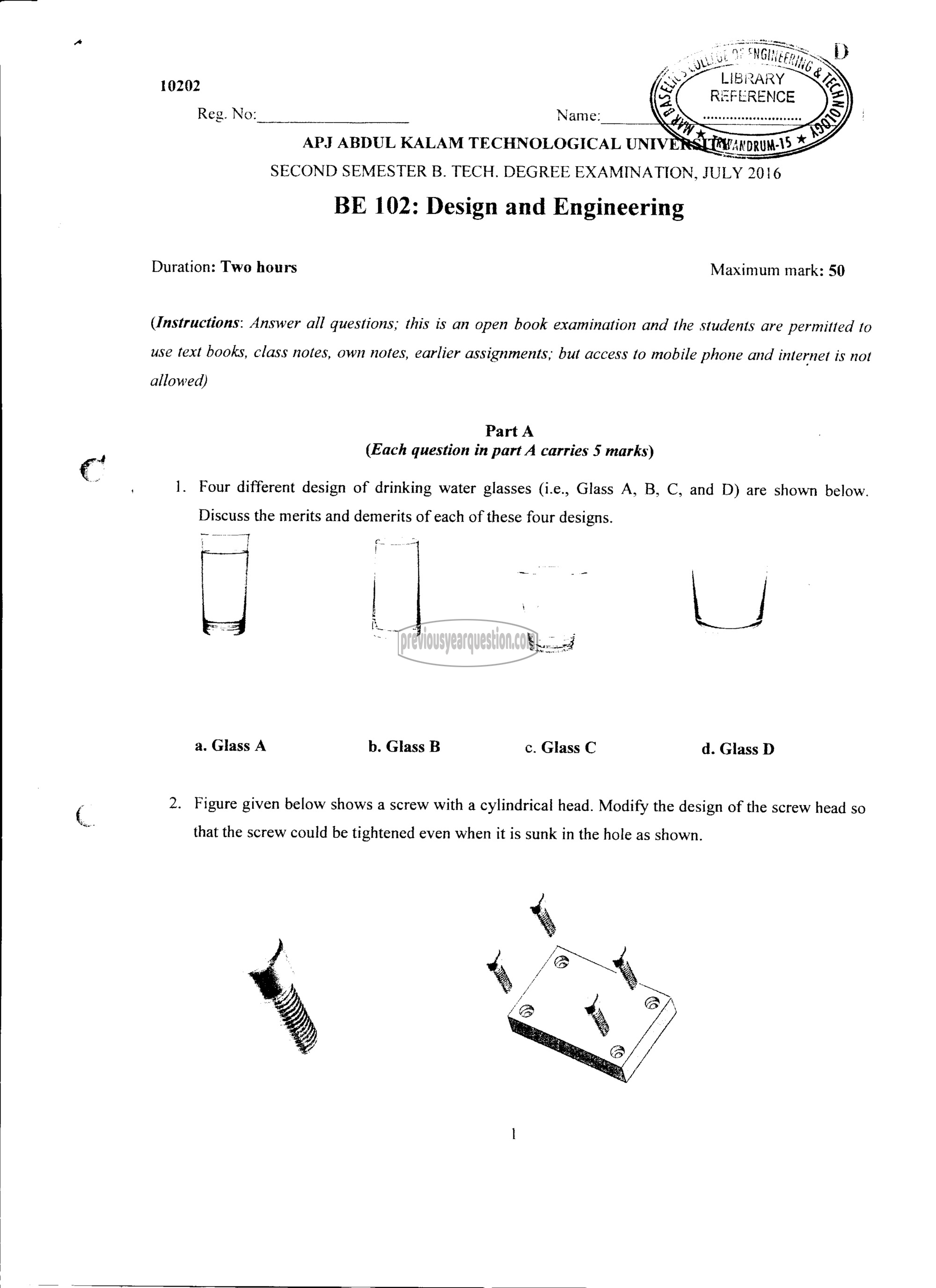

SECOND SEMESTER B. TECH. DEGREE EXAMINATION, JULY 2016

BE 102: Design and Engineering

Duration: Two hours Maximum mark: 50

(Instructions: Answer all questions, this is an open book examination and the students are permitted to

use text books, class notes, own notes, earlier assignments; but access to mobile phone and internet is not
allowed)

Part A
7 (Each question in part A carries 5 marks)

+ 1. Four different design of drinking water glasses (1.0, Glass A, ए, C, and D) are shown below.

Discuss the merits and demerits of each of these four designs.
i -7 = ‏ساس‎
‎॥

0

| ١ = --

ಓಡ
a. Glass A b. Glass B c. Glass C d. Glass D
( 2. Figure given below shows a screw with a cylindrical head. Modify the design of the screw head so

that the screw could be tightened even when it is sunk in the hole as shown.
