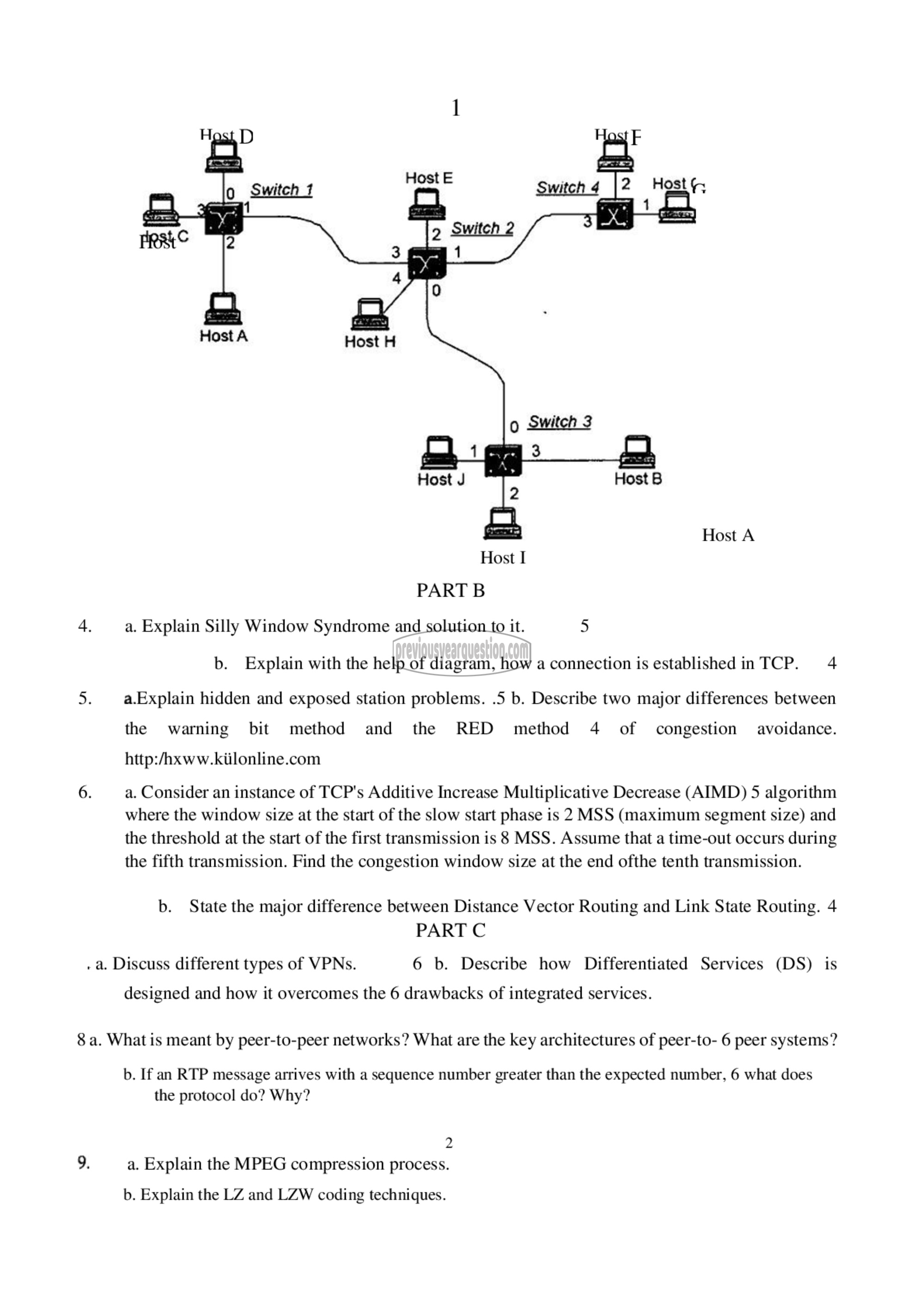

Host A

Host A

Host I
PART 8

a. Explain Silly Window Syndrome and solution to it. 5
b. Explain with the help of diagram, how a connection is established in TCP. 4

a.Explain hidden and exposed station problems. .5 b. Describe two major differences between
the warning bit method and the RED method 4 of congestion avoidance.

http:/hxww.kiilonline.com

a. Consider an instance of TCP's Additive Increase Multiplicative Decrease (AIMD) 5 algorithm
where the window size at the start of the slow start phase is 2 MSS (maximum segment size) and
the threshold at the start of the first transmission is 8 MSS. Assume that a time-out occurs during
the fifth transmission. Find the congestion window size at the end ofthe tenth transmission.

b. State the major difference between Distance Vector Routing and Link State Routing. 4
PART C

, a. Discuss different types of VPNs. 6 b. Describe how Differentiated Services (DS) is

designed and how it overcomes the 6 drawbacks of integrated services.

8 ೩. What is meant by peer-to-peer networks? What are the key architectures of peer-to- 6 peer systems?

b. If an RTP message arrives with a sequence number greater than the expected number, 6 what does
the protocol do? Why?

2
a. Explain the MPEG compression process.

b. Explain the LZ and LZW coding techniques.
