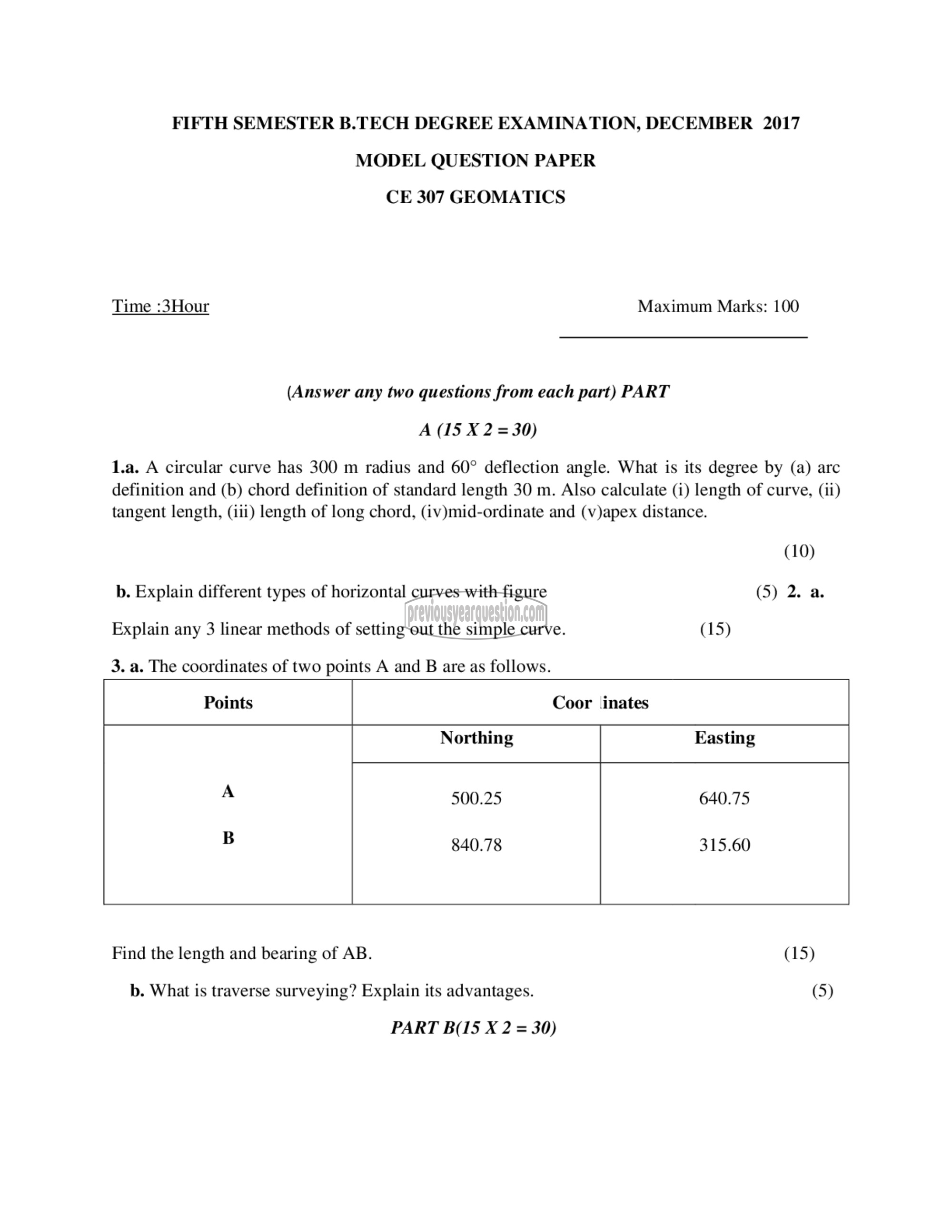

FIFTH SEMESTER B.TECH DEGREE EXAMINATION, DECEMBER 2017
MODEL QUESTION PAPER
CE 307 GEOMATICS

Time :3Hour Maximum Marks: 100

(Answer any two questions from each part) PART
A (15 + 2 = 30)

1.2. A circular curve has 300 m radius and 60° deflection angle. What is its degree by (a) arc
definition and (b) chord definition of standard length 30 m. Also calculate (i) length of curve, (ii)
tangent length, (111) length of long chord, (iv)mid-ordinate and (v)apex distance.

(10)
b. Explain different types of horizontal curves with figure (5) 2. a.
Explain any 3 linear methods of setting out the simple curve. (15)

3. a. The coordinates of two points A and 8 are as follows.

Points Coor 1118105

Northing | Easting |

500.25 640.75

840.78 315.60

Find the length and bearing of AB. (15)
b. What is traverse surveying? Explain its advantages. (5)

PART (7522 = 30)
