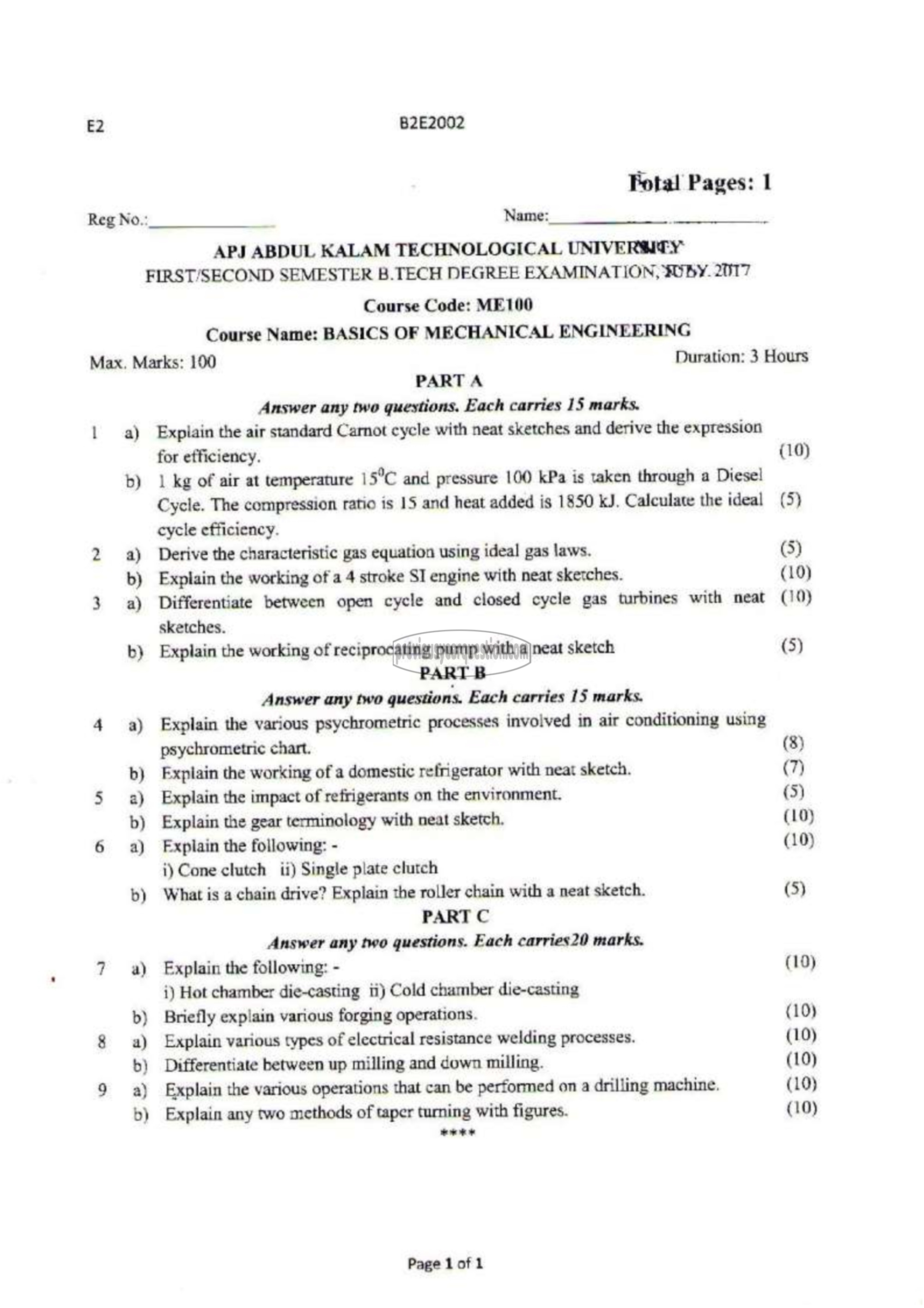

E2 B2E2002

Fotal Pages: 1
Reg No.: Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERWNTEY
FIRST/SECOND SEMESTER B.TECH NEGREE EXAMINATION, S0BY. 2017
Course Code: ME100
Course Name: BASICS OF MECHANICAL ENGINEERING

Max. Marks: 0 Duration: 3 Hours

PART A
Answer any two questions, Each carries 15 marks.
| ച്ച Explain the air standard Carnot cycle with neat sketches and derive the expression
for efficiency.

b) ١ kg of air at temperature 15°C and pressure 100 kPa is taken through a Diesel
Cycle. The compression ratio is 15 and heat added is 1850 kJ. Calculate the ideal
cycle efficiency.

2 ३) Derive the characteristic gas equation using ideal gas laws.

b) Explain the working of a 4 stroke SI engine with neat sketches.

3 a) Differentiate between open cycle and closed cycle gas turbines with neat
sketches.

b) Explain the working of reciprocating pump with a neat sketch

PART 8
Answer any ೧೪0 questions. Each carries 15 marks.
4 3) Explain the various psychrometric processes involved in air conditioning using
psychrometric chart.
b) Explain the working of a domestic refrigerator with neat sketch.
5 ല്ല Explain the impact of refrigerants on the environment.
b) Explain the gear terminology with neat sketch.
6 a) Explain the following: -
i) Cone clutch ம) Single plate clutch
b) What is a chain drive? Explain the roller chain with a neat sketch.
PART C
Answer any two questions. Each carries20 marks.
7 ५) Explain the following: -
i) Hot chamber die-casting ii) Cold chamber die-casting

b) Briefly explain various forging operations.

8 a) Explain various types of electrical resistance welding processes.

b) Differentiate between up milling and down milling

9 a) Explain the various operations that can be performed on a drilling machine.
b) Explain any two methods of taper turning with figures.

ere

Page ۱1۰1

(10)
(5)

(5)
(10)
(10)

(5)

(8)
(7)
(5)
(10)
(10)

(5)

(10)

(10)
(10)
(10)
(10)
(10)
