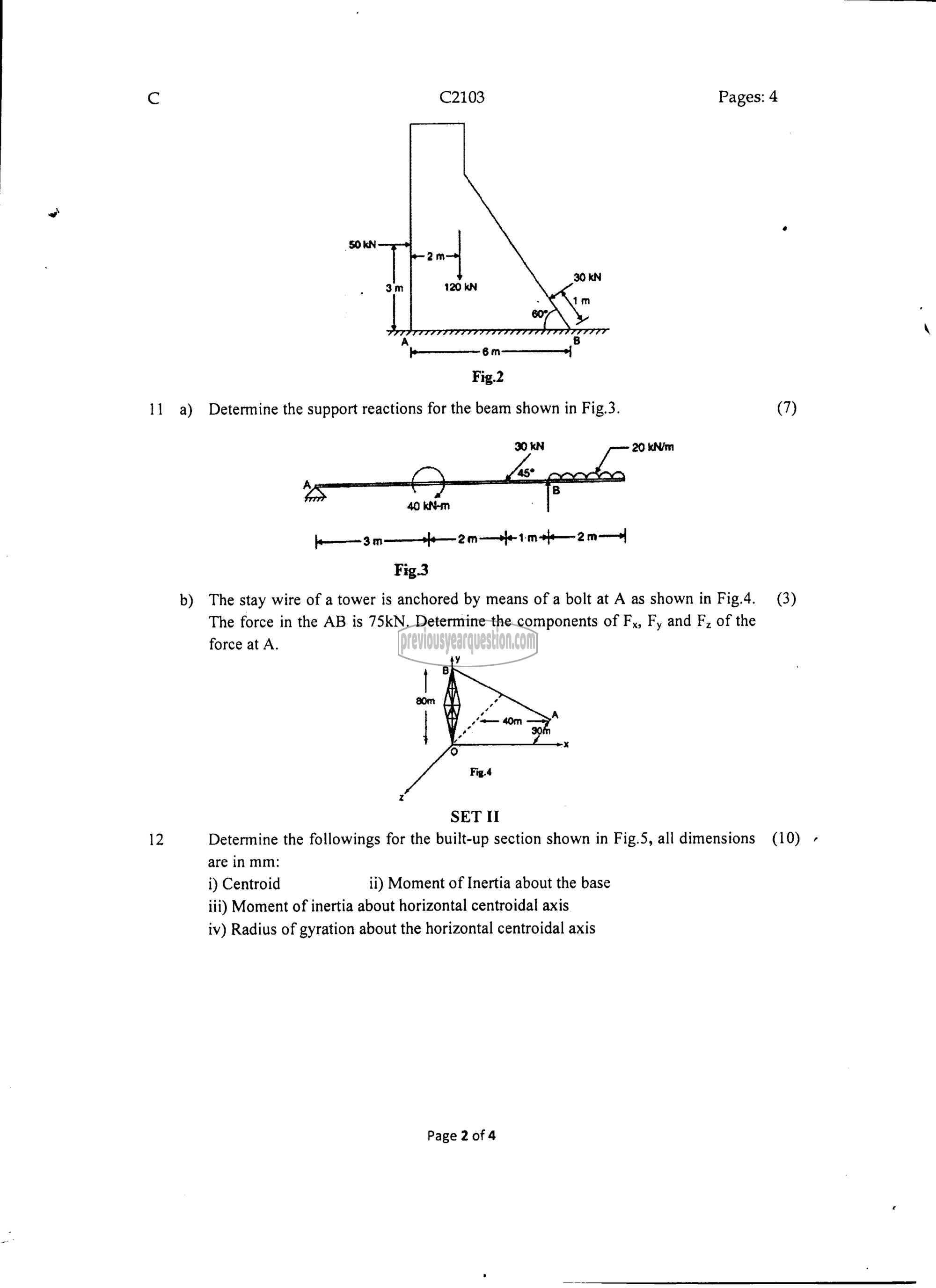

C2103 Pages: 4

Fig.2
a) Determine the support reactions for the beam shown in Fig.3.

ಜ್ರ ‏مص‎ 20 kN/m

തടിനി
Fig.3
b) The stay wire of a tower is anchored by means of a bolt at A as shown in Fig.4.

The force in the AB is 75kN. Determine the components of F,, Fy and 8, of the
force at A.

SET 11
Determine the followings for the built-up section shown in Fig.5, all dimensions
are in mm:
i) Centroid ii) Moment of Inertia about the base
iii) Moment of inertia about horizontal centroidal axis
iv) Radius of gyration about the horizontal centroidal axis
