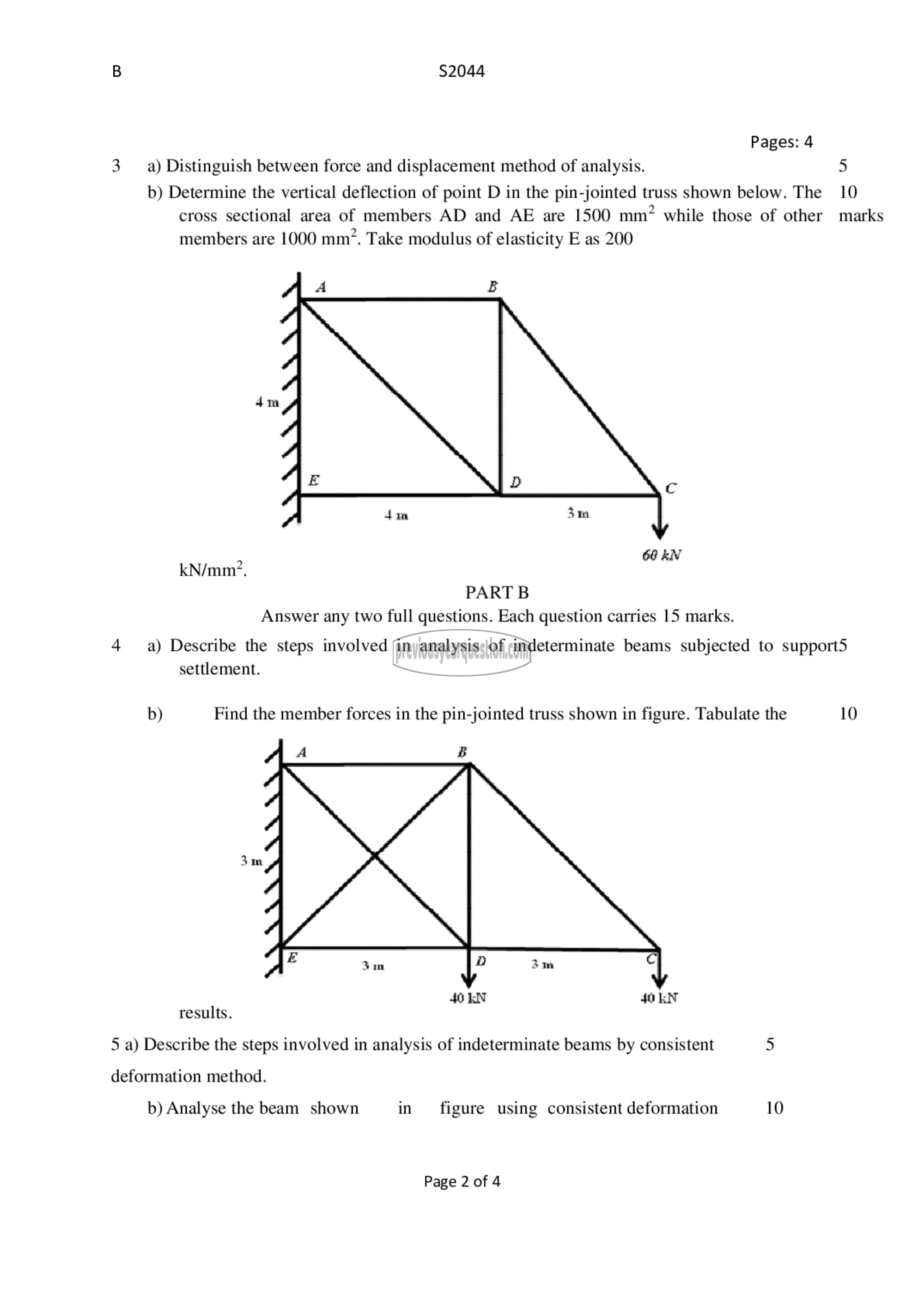

B $2044

Pages: 4
3 9७) Distinguish between force and displacement method of analysis. 5
b) Determine the vertical deflection of point D in the pin-jointed truss shown below. The 10
cross sectional area of members AD and AE are 1500 mm? while those of other marks
members are 1000 mm”. Take modulus of elasticity E as 200

1 66%
1/11”.

PART 8
Answer any two full questions. Each question carries 15 marks.

4 ஐ Describe the steps involved in analysis of indeterminate beams subjected to supportS
settlement.

b) Find the member forces in the pin-jointed truss shown in figure. Tabulate the 10

3m

results. OES பல்‌
5 a) Describe the steps involved in analysis of indeterminate beams by consistent 5
deformation method.
b) Analyse the beam shown 11 figure using consistent deformation 10

Page 2 of 4
