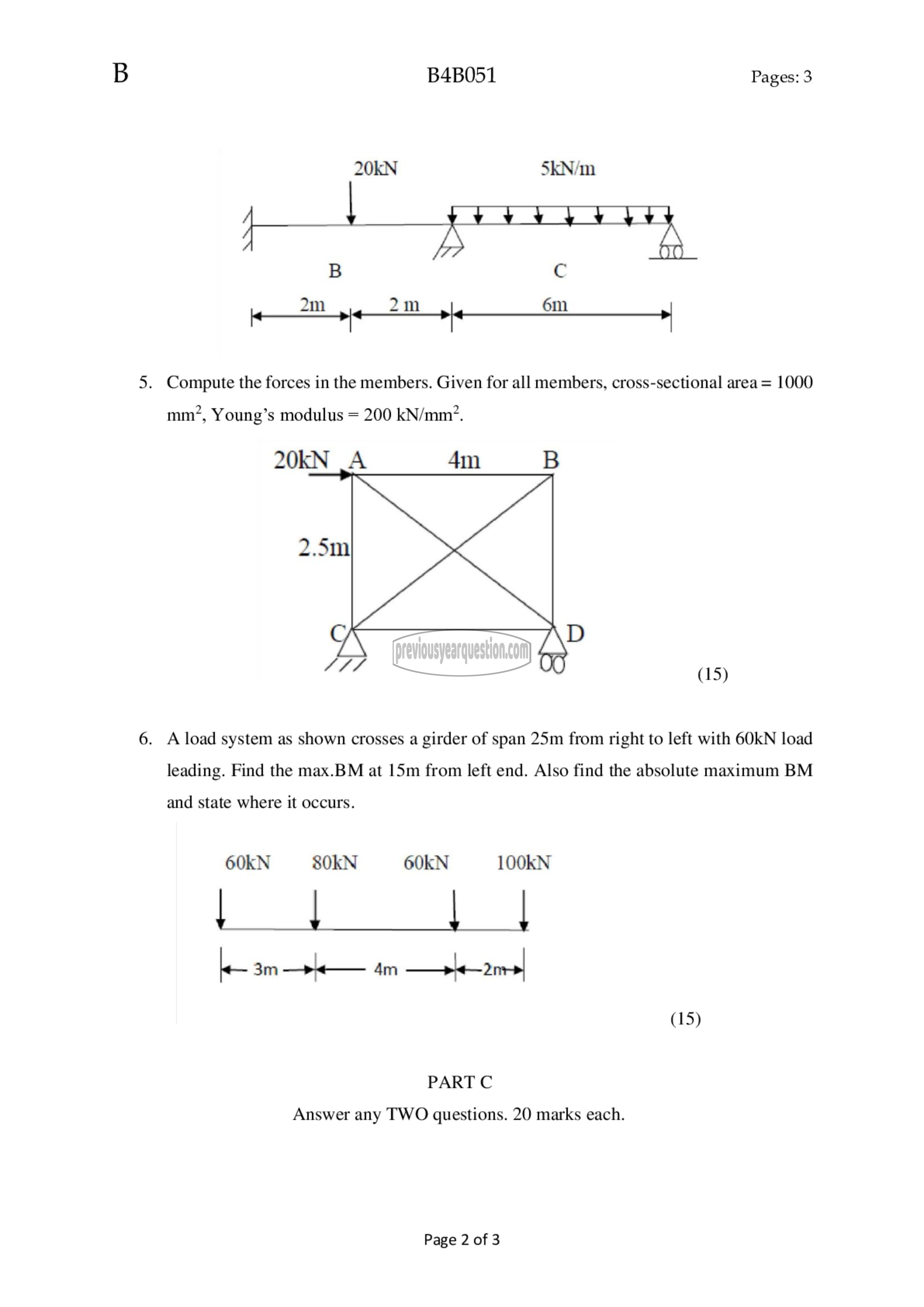

5. Compute the forces in the members. Given for all members, cross-sectional area = 1000

mm’, Young’s modulus = 200 kN/mm?.

2010٦ ‏کی‎ 4m B

123) (15)

6. A load system as shown crosses a girder of span 25m from right to left with 60121 load
leading. Find the max.BM at 15m from left end. Also find the absolute maximum BM

and state where it occurs.

6012 80124 60/௮ 1001

اپ ہی
‎ണി)‏ ےار ‎आ‏ ~(

(15)
