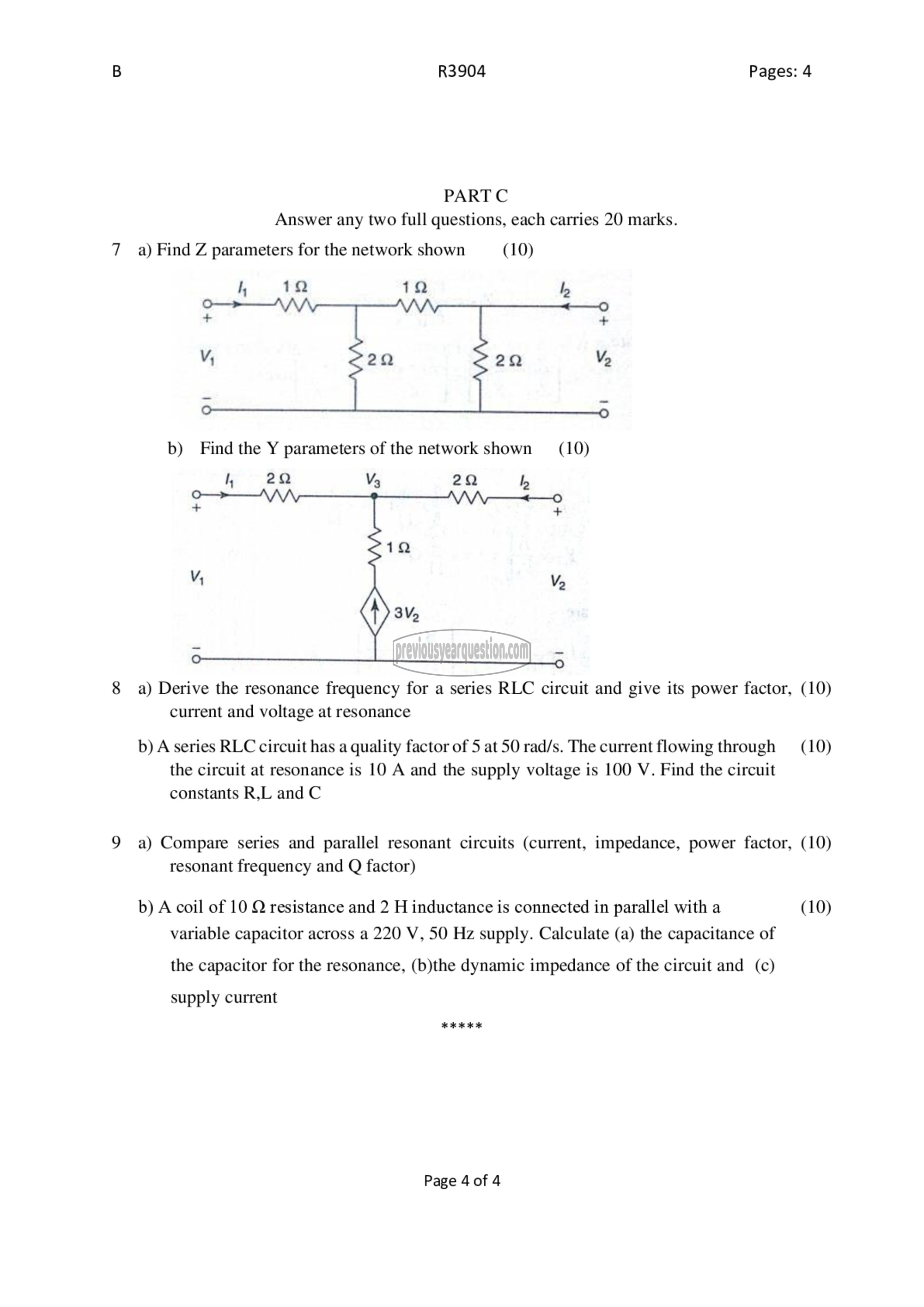

B R3904 Pages: 4

PART ^
Answer any two full questions, each carries 20 marks.

7 9) Find 7 parameters for the network shown (10)

‎॥ 12 1೧ 7‏
ص۸۸۸۳ دع سے
+

‎۷

‎b) Find the Y parameters of the network shown (10)

‎8 a) Derive the resonance frequency for a series RLC circuit and give its power factor, (10)
current and voltage at resonance

‎b) A series RLC circuit has a quality factor of 5 at 50 rad/s. The current flowing through (10)
the circuit at resonance is 10 A and the supply voltage is 100 V. Find the circuit
constants R,L and C

‎9 a) Compare series and parallel resonant circuits (current, impedance, power factor, (10)
resonant frequency and Q factor)

‎b) A coil of 10 Q resistance and 2 H inductance is connected in parallel with a (10)
variable capacitor across a 220 V, 50 Hz supply. Calculate (a) the capacitance of
the capacitor for the resonance, (b)the dynamic impedance of the circuit and (0)

‎supply current

‎KK KKK

‎Page 4 of 4
