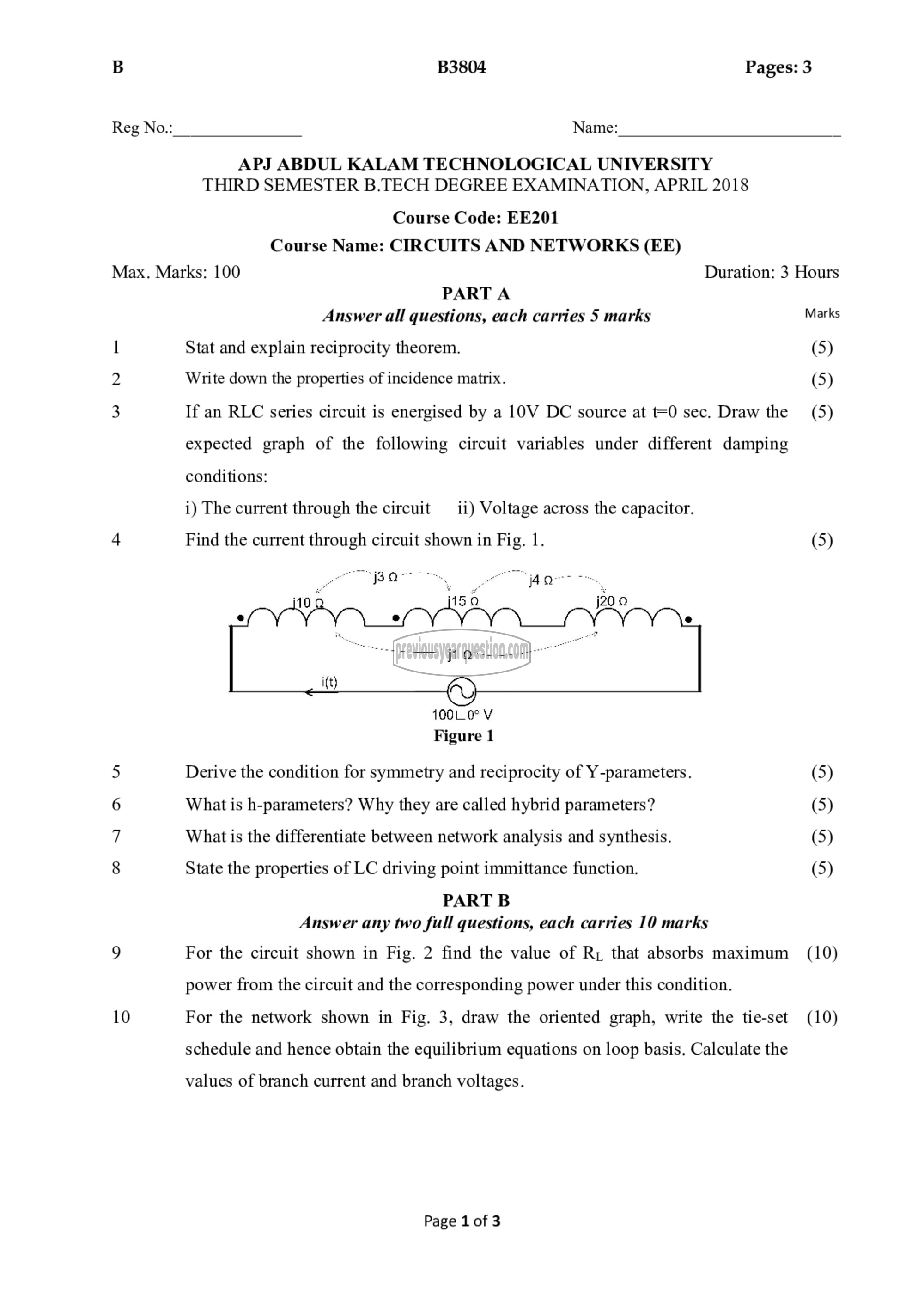

B B3804 Pages: 3

Reg No.: Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
THIRD SEMESTER B.TECH DEGREE EXAMINATION, APRIL 2018

Course Code: EE201
Course Name: CIRCUITS AND NETWORKS (EE)

Max. Marks: 100 Duration: 3 Hours
PART A
Answer all questions, each carries 5 marks Marks
1 Stat and explain reciprocity theorem. (5)
2 Write down the properties of incidence matrix. (5)
3 If an RLC series circuit is energised by a 1017 DC source at 150 sec. Draw (5)

expected graph of the following circuit variables under different damping
conditions:
i) The current through the circuit 14) Voltage across the capacitor.

4 Find the current through circuit shown in Fig. 1. (5)

‎भवे 05 =‏ سے ~ وز

‎120೧

‎100۷۷

‎Figure 1
5 Derive the condition for symmetry and reciprocity of Y-parameters. (5)
6 What is h-parameters? Why they are called hybrid parameters? (5)
7 What is the differentiate between network analysis and synthesis. (5)
8 State the properties of LC driving point immittance function. (5)

‎PART B
Answer any two full questions, each carries 10 marks
9 For the circuit shown in Fig. 2 find the value of Ry that absorbs maximum (10)
power from the circuit and the corresponding power under this condition.

‎10 For the network shown in Fig. 3, draw the oriented graph, write the tie-set (10)

‎schedule and hence obtain the equilibrium equations on loop basis. Calculate the

‎values of branch current and branch voltages.

‎Page 1 of 3
