Semester : SEMESTER 3
Subject : Circuits and, Networks
Year : 2017
Term : DECEMBER
Scheme : 2015 Full Time
Course Code : EE 201

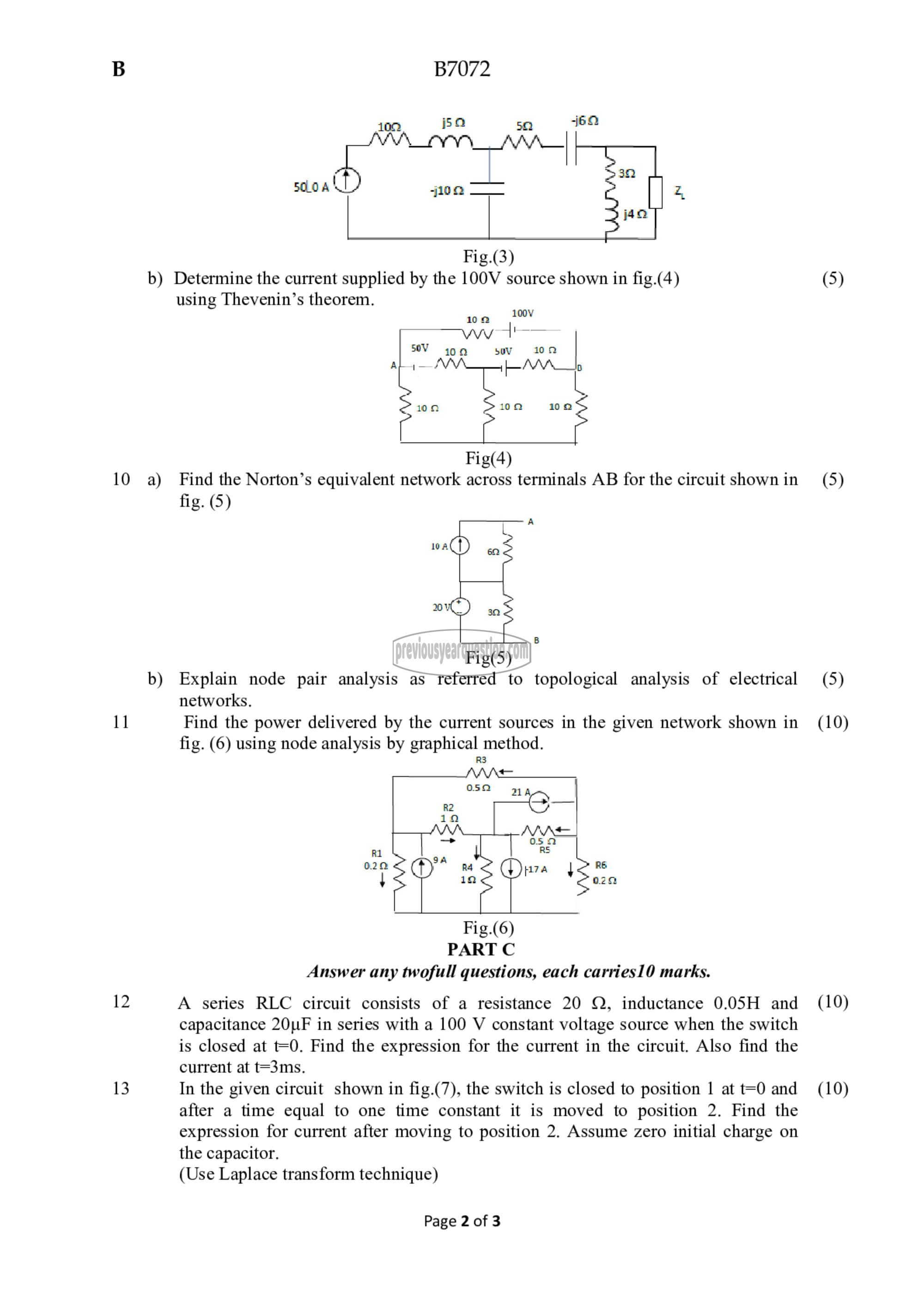

Page:2
B7072
509 പഥ
500५ ¢ حدس வு
दः
Fig.(3)
b) Determine the current supplied by the 100V source shown in fig.(4) (5)
using Thevenin’s theorem.
102 100V
കു -۔
500 100 പസ് ane ا ಣ
4/- । - as
10 2)
0)
11
12
13
Fig(4)
Find the Norton’s equivalent network across terminals AB for the circuit shownin (5)
fig. (5)
0 م
= وس سو ४.
் 1
Fig(5)
Explain node pair analysis as referred to topological analysis of electrical (5)
networks.
Find the power delivered by the current sources in the given network shown in (10)
fig. (6) using node analysis by graphical method.
R3
Answer any twofull questions, each carries10 marks.
A series RLC circuit consists of a resistance 20 Q, inductance 0.05H and (10)
capacitance 20uF in series with a 100 V constant voltage source when the switch
is closed at 1-0. Find the expression for the current in the circuit. Also find the
current at t=3ms.
In the given circuit shown in fig.(7), the switch is closed to position 1 at ٠ and (10)
after a time equal to one time constant it is moved to position 2. Find the
expression for current after moving to position 2. Assume zero initial charge on
the capacitor.
(Use Laplace transform technique)
Page 2 of 3
