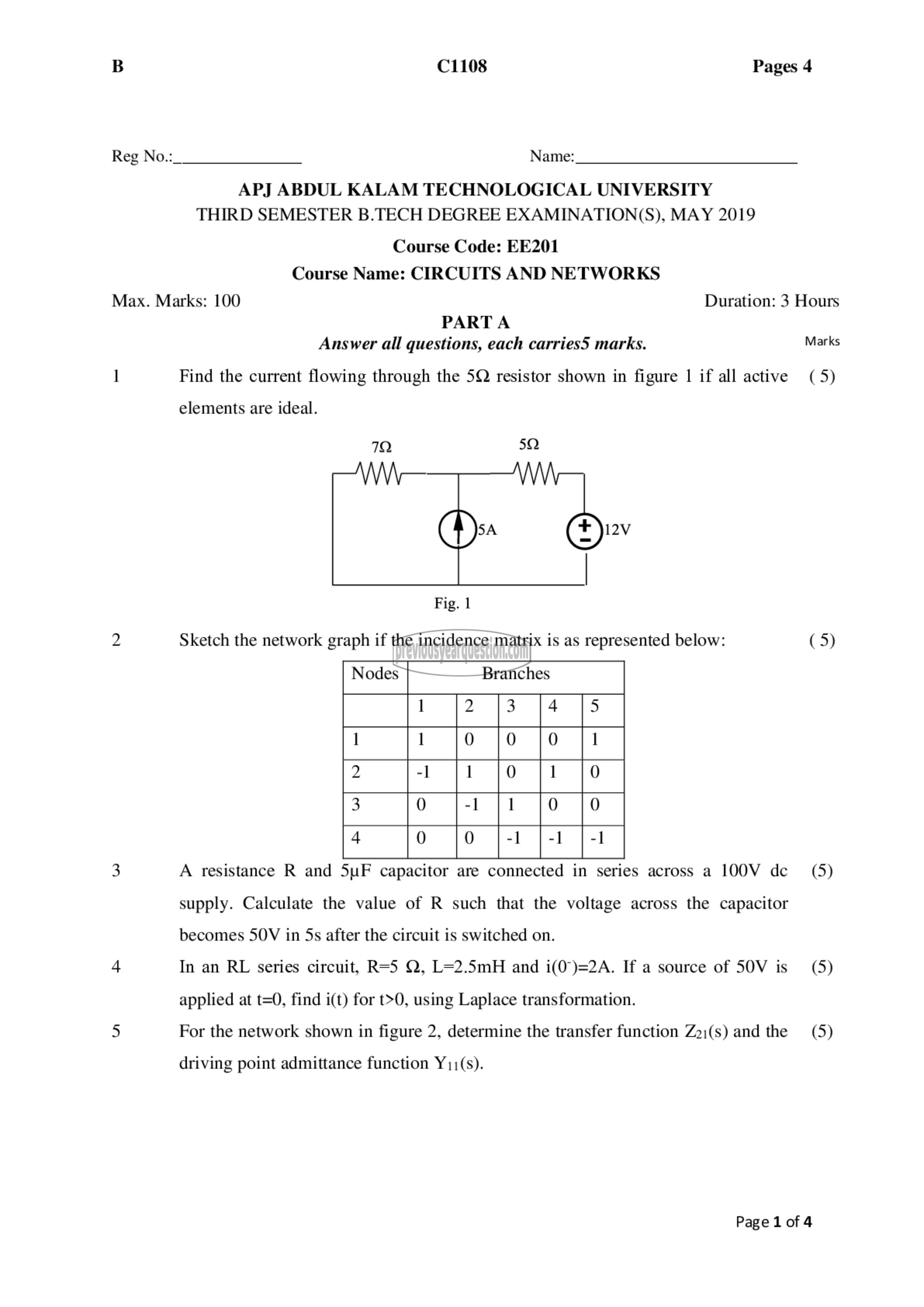

B C1108 Pages 4

Reg No.:_ Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
THIRD SEMESTER B.TECH DEGREE EXAMINATION(S), MAY 2019

Course Code: EE201
Course Name: CIRCUITS AND NETWORKS

Max. Marks: 100 Duration: 3 Hours
PARTA

Answer all questions, each carries5 marks. Marks

1 Find the current flowing through the 562 resistor shown in figure 1 if all active (5)

elements are ideal.

70 5Q

| ०. 4 12%

Fig. 1

2 Sketch the network graph if the incidence matrix is as represented below: (5)

3 A resistance R and 5uF capacitor are connected in series across a 100% ‏عل‎ (5)
supply. Calculate the value of R such that the voltage across the capacitor
becomes SOV in 5s after the circuit is switched on.

4 In an RL series circuit, R=5 Q, L=2.5mH and i(0°)=2A. If a source of 509 is (5)
applied at t=0, find i(t) for ‏,0ئ‎ using Laplace transformation.

5 For the network shown in figure 2, determine the transfer function 221(5) and the (5)

driving point admittance function Y11(s).

Page 1 of 4
