5

6 a)
b)

7

8 9)
b)

9

03000ME316052002

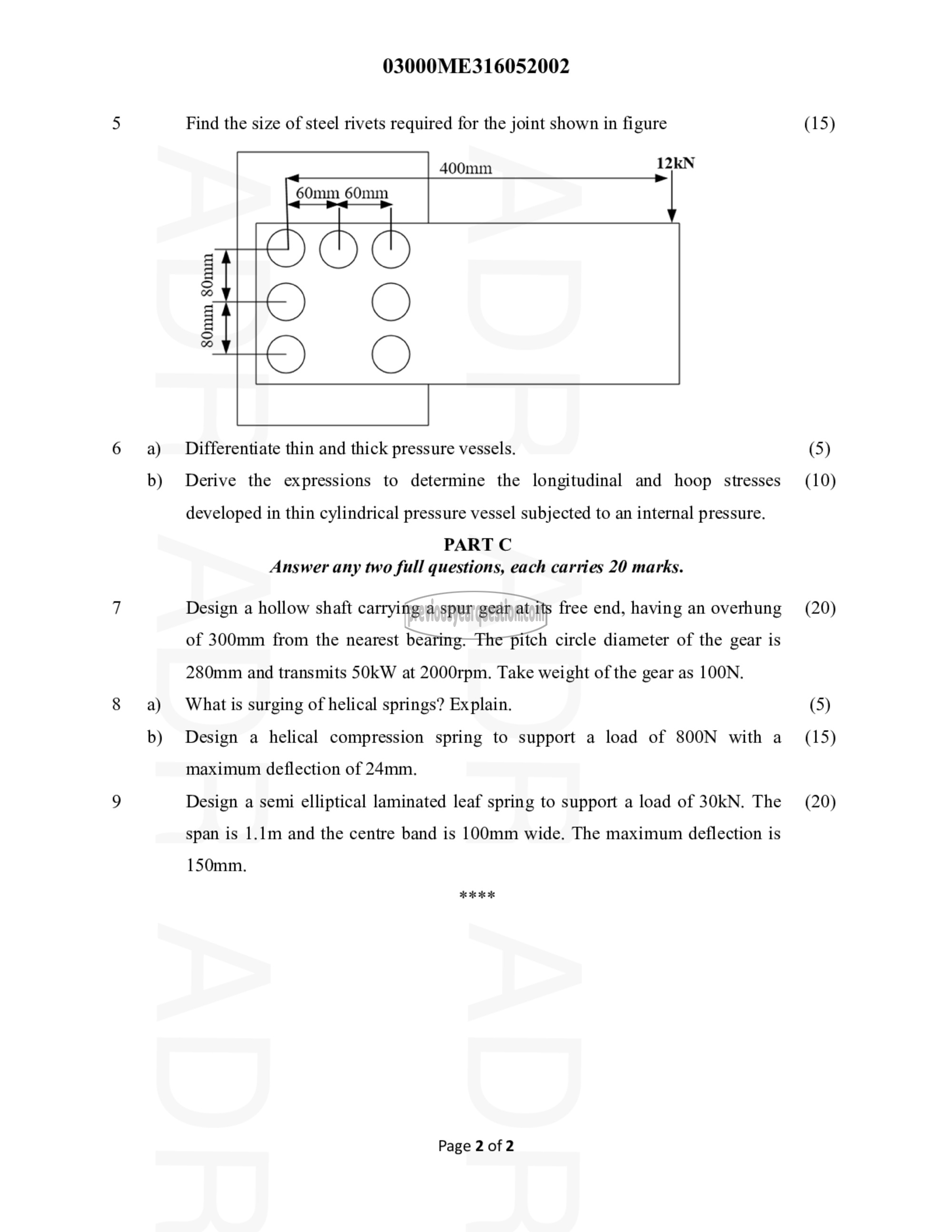

Find the size of steel rivets required for the joint shown in figure

400mm 12kN

=. 60mm

80mm, 80111111

Differentiate thin and thick pressure vessels.

Derive the expressions to determine the longitudinal and hoop stresses

developed in thin cylindrical pressure vessel subjected to an internal pressure.
PART ^

Answer any two full questions, each carries 20 marks.

Design a hollow shaft carrying a spur gear at its free end, having an overhung

of 300mm from the nearest bearing. The pitch circle diameter of the gear is

280mm and transmits 50kW at 2000rpm. Take weight of the gear as 100N.

What is surging of helical springs? Explain.

Design a helical compression spring to support a load of 800N with a

maximum deflection of 24mm.

Design a semi elliptical laminated leaf spring to support a load of 30kN. The

span is 1.1m and the centre band is 100mm wide. The maximum deflection is

150mm.

اد ‎ಶೇ‏ عاد با2

Page 2 of 2

(15)

(5)
(10)

(20)

(5)
(15)

(20)
