Draw the development of the lower portion of a cylinder of diameter 50 mm
and axis height 70 mm when it is sectioned by a plane inclined at 40° to HP,
perpendicular to VP and bisecting the axis.

Module-IV
Draw the isometric projection of a hexagonal prism, 25 mm side of base and
60 mm height, which is resting on a rectangular face on HP.
A hemisphere of diameter 70 mm is placed centrally over a cylinder of
diameter 50 mm and height 80 mm, with its flat surface facing upward. Draw
the isometric view of the combination.

Module-V
A rectangular box of 50 mm x 30 mm x 25 mm size rests on the ground on
one of its 50x30 mm rectangular face on the ground plane. The box is located
behind the PP with a vertical edge touching it and a face containing the
largest edge making an angle of 30° to the PP. The station point is located 45
mm in front of PP and 55 mm above the ground plane. The central plane
passes through the centre of the box. Draw the perspective view of the box.

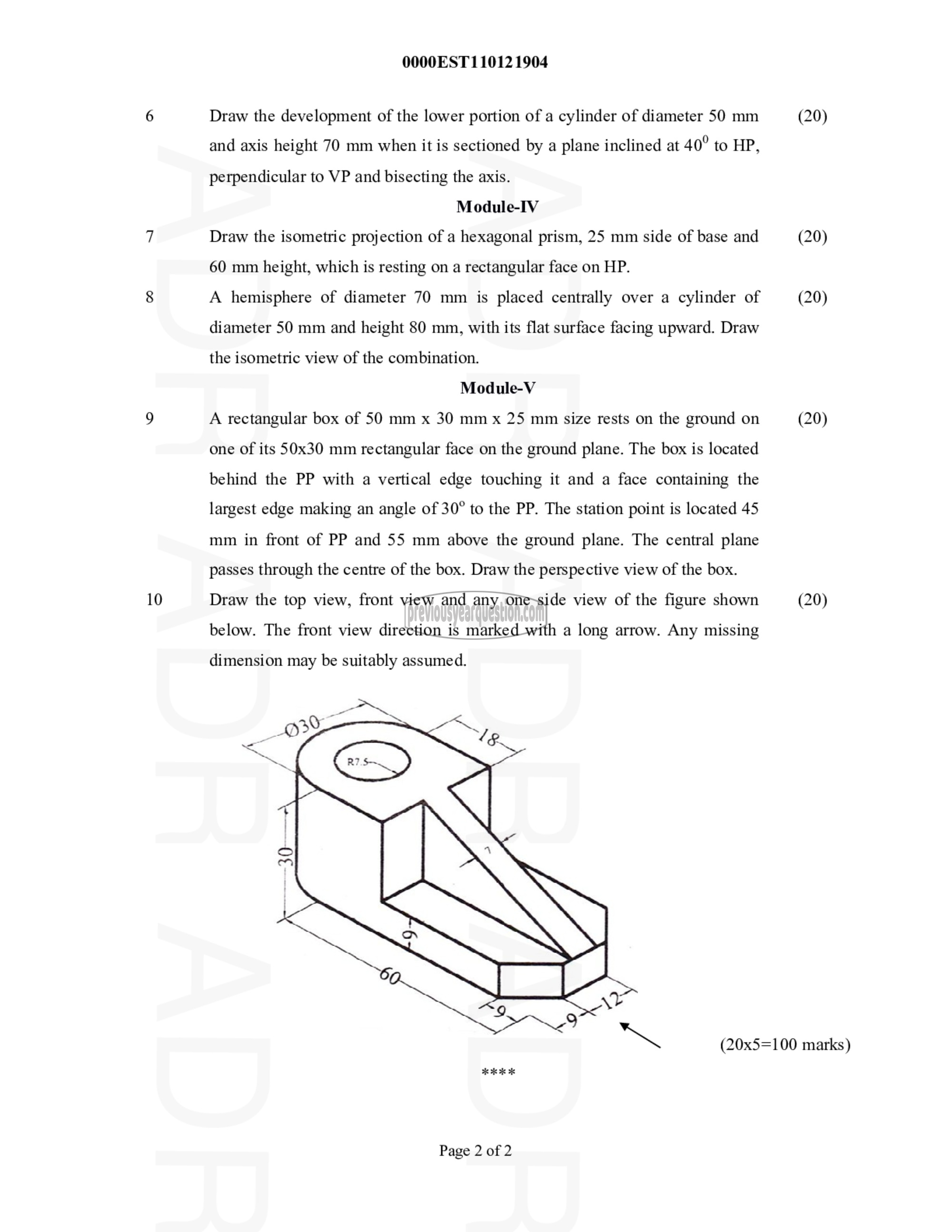

Draw the top view, front view and any one side view of the figure shown
below. The front view direction is marked with a long arrow. Any missing

dimension may be suitably assumed.

OK

Page 2 of 2

(20)

(20)

(20x5=100 marks)
