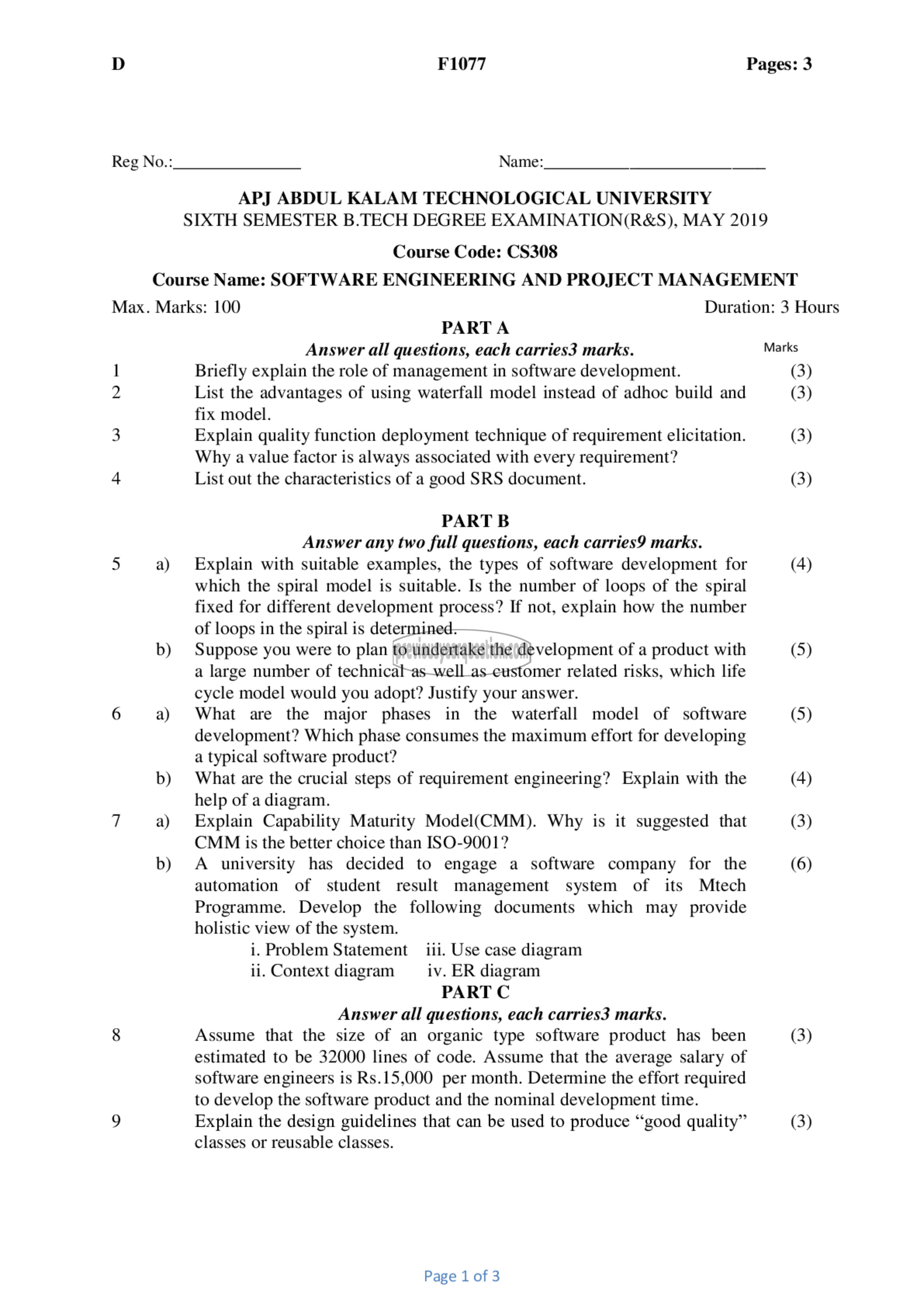

D F1077 Pages: 3

Reg No.: Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
SIXTH SEMESTER B.TECH DEGREE EXAMINATION(R&S), MAY 2019

Course Code: CS308
Course Name: SOFTWARE ENGINEERING AND PROJECT MANAGEMENT

Max. Marks: 100 Duration: 3 Hours
PARTA
Answer all questions, each carries3 marks. Marks
1 Briefly explain the role of management in software development. (3)
2 List the advantages of using waterfall model instead of adhoc build and (3)
fix model.
3 Explain quality function deployment technique of requirement elicitation. (3)
Why a value factor is always associated with every requirement?
4 List out the characteristics of a good SRS document. (3)
PART B
Answer any two full questions, each carries9 marks.
5 a) Explain with suitable examples, the types of software development for (4)

which the spiral model is suitable. Is the number of loops of the spiral
fixed for different development process? If not, explain how the number
of loops in the spiral is determined.

b) Suppose you were to plan to undertake the development of a product with (5)
a large number of technical as well as customer related risks, which life
cycle model would you adopt? Justify your answer.

6 a) What are the major phases in the waterfall model of software (5)
development? Which phase consumes the maximum effort for developing
a typical software product?

b) What are the crucial steps of requirement engineering? Explain with the (4)
help of a diagram.

7 a) Explain Capability Maturity Model(CMM). Why is it suggested that (3)
CMM is the better choice than ISO-9001?

b) A university has decided to engage a software company for the (6)
automation of student result management system of its Mtech
Programme. Develop the following documents which may provide
holistic view of the system.

i. Problem Statement 111. Use case diagram
11. Context diagram ۱۷۰ ER diagram
PART C
Answer all questions, each carries3 marks.

8 Assume that the size of an organic type software product has been (3)
estimated to be 32000 lines of code. Assume that the average salary of
software engineers is Rs.15,000 per month. Determine the effort required
to develop the software product and the nominal development time.

9 Explain the design guidelines that can be used to produce “2000 quality” (3)
classes or reusable classes.

Page 1 of 3
