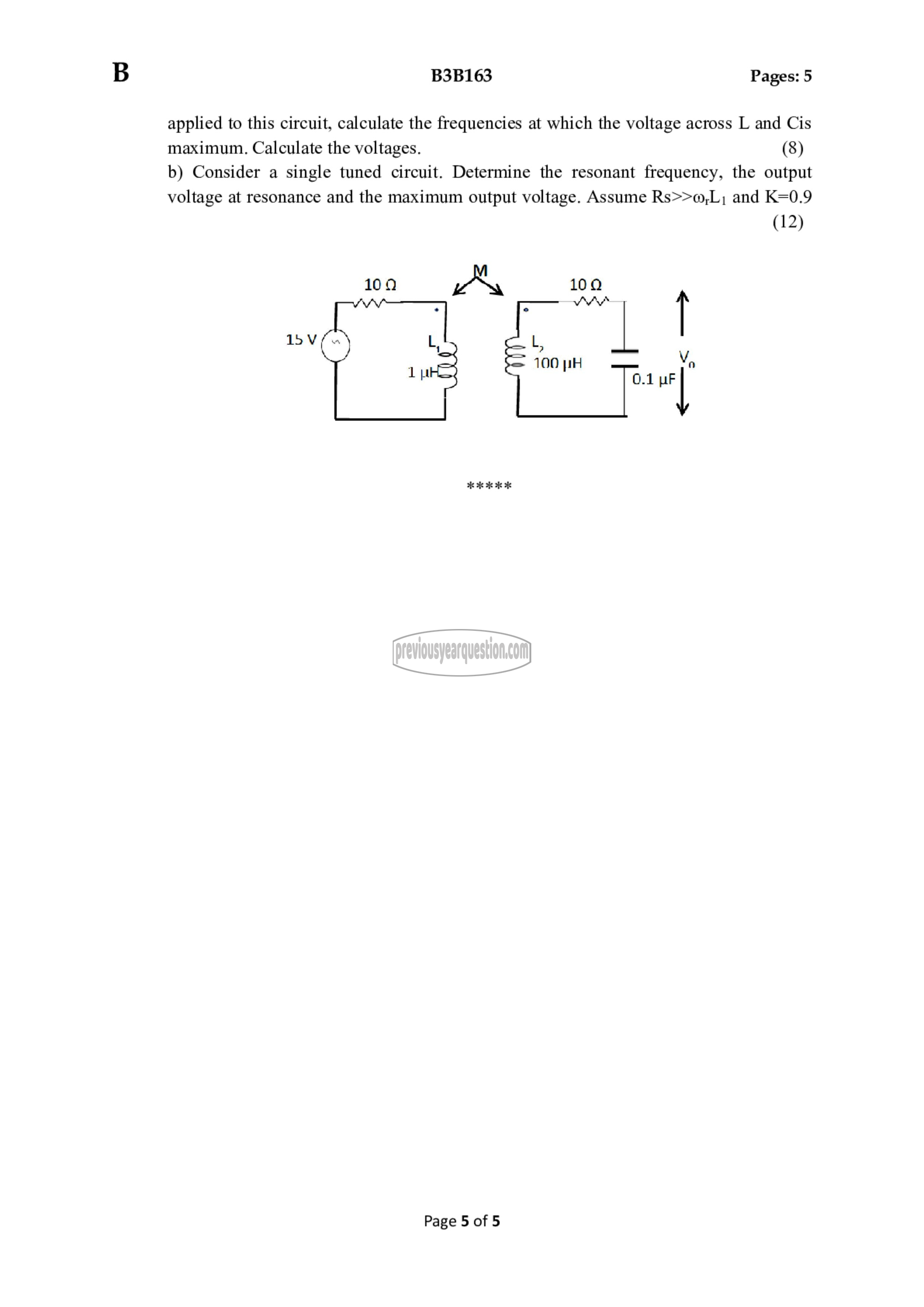

applied to this circuit, calculate the frequencies at which the voltage across L and Cis
maximum. Calculate the voltages. (8)
b) Consider a single tuned circuit. Determine the resonant frequency, the output
voltage at resonance and the maximum output voltage. Assume Rs>>a,L; and K=0.9
(12)
