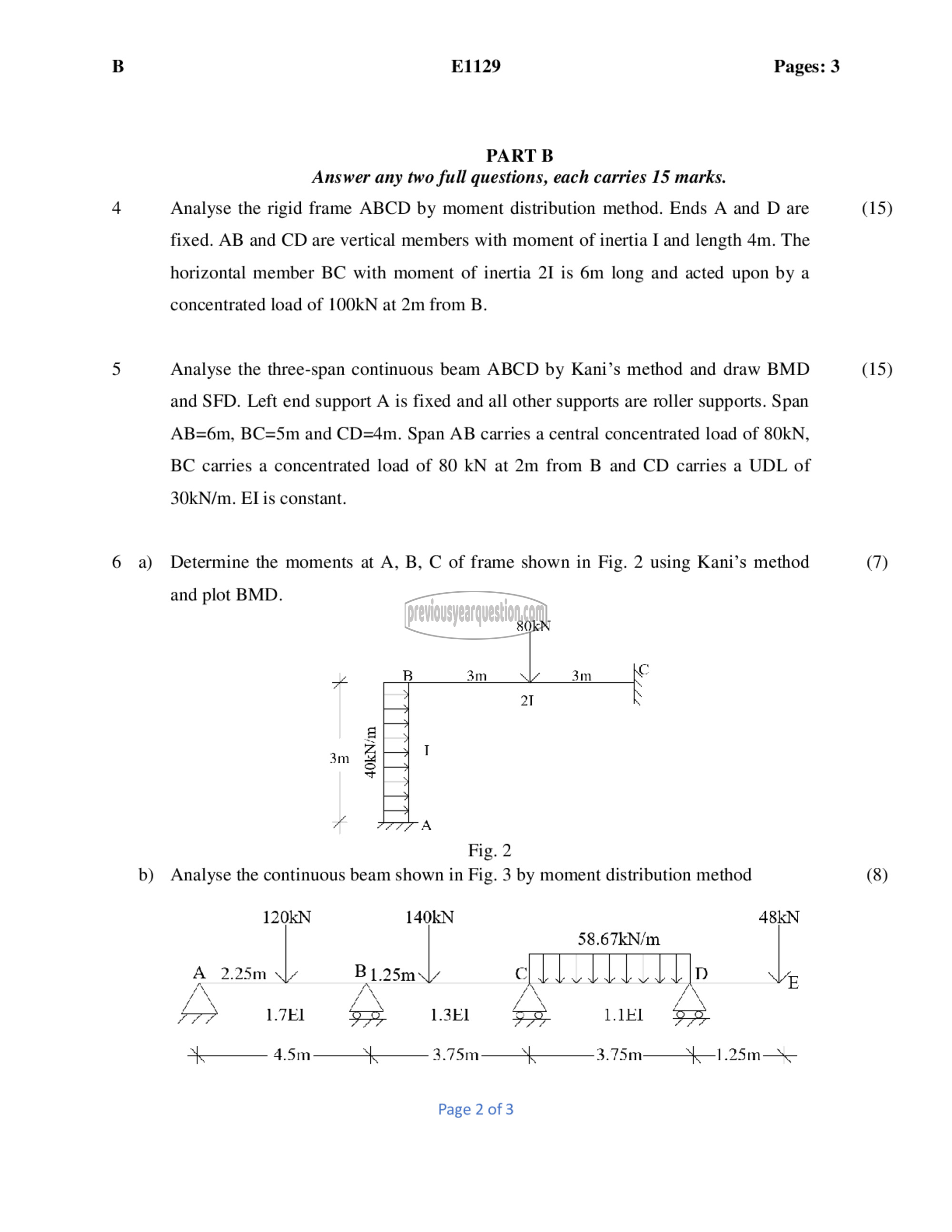

E1129 Pages: 3

PART B
Answer any two full questions, each carries 15 marks.
Analyse the rigid frame ABCD by moment distribution method. Ends A and D are
fixed. AB and CD are vertical members with moment of inertia I and length 4m. The
horizontal member BC with moment of inertia 21 is 6m long and acted upon by a

concentrated load of 1001:1 3+ 2m from 8.

Analyse the three-span continuous beam ABCD by Kani’s method and draw BMD
and SFD. Left end support A is fixed and all other supports are roller supports. Span
AB=6m, BC=5m and CD=4m. Span AB carries a central concentrated load of 80kN,
BC carries a concentrated load of 80 kN at 2m from B and CD carries a UDL of

30kN/m. EI is constant.

a) Determine the moments at A, B, C of frame shown in Fig. 2 using Kani’s method

and plot BMD.

8012:
ഥ്‌ ಇಡಾ 3m 3m <:
21
8
301 & 1
ஓ
7 A
Fig. 2
b) Analyse the continuous beam shown in Fig. 3 by moment distribution method
120KN 140121 48kN
58.67kKN/m
A 2.25m ೫1.252 0 11.11.) 7 1) 2
‏ہ۸‎ ತ 1 /\
\ / \ \ f \
‏حير‎ பூய 29 மம்‌ ‏جو‎ பயம ‏چو‎
‏لد‎ 4.511--ज्+++ 3.7511--ऑनक्+-+ 3. 7511-----+क्त- ‏پد-250.‎

Page 2 of 3

(15)

(15)

(7)

(8)
