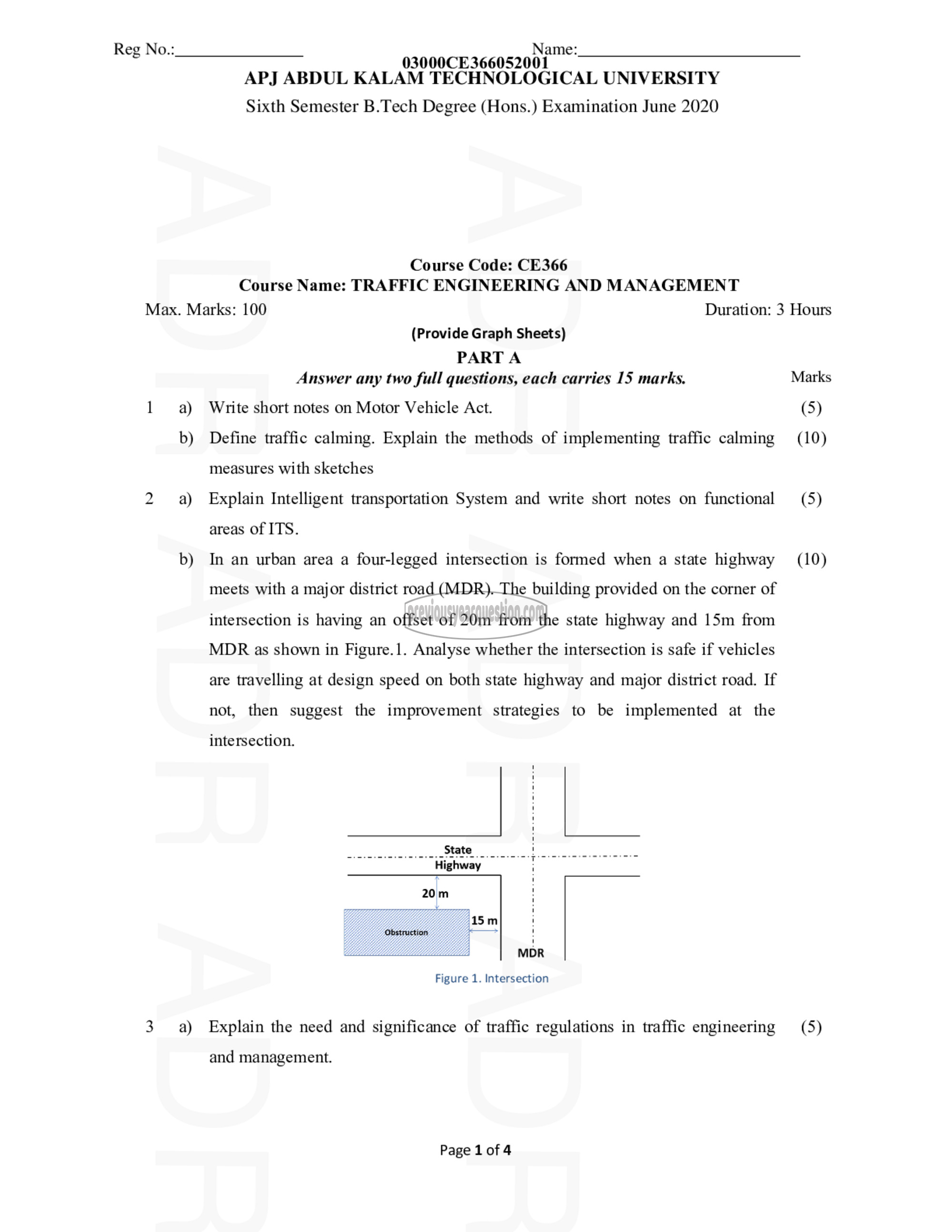

Reg No.: N
=“ 03000CE3660520
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Sixth Semester B.Tech Degree (Hons.) Examination June 2020

Course Code: CE366
Course Name: TRAFFIC ENGINEERING AND MANAGEMENT

Max. Marks: 100 Duration: 3 Hours
(Provide Graph Sheets)
PARTA
Answer any two full questions, each carries 15 marks. Marks
1 2) Write short notes on Motor Vehicle Act. (5)

b) Define traffic calming. Explain the methods of implementing traffic calming (10)

measures with sketches

i)

a) Explain Intelligent transportation System and write short notes on functional (5)
areas of ITS.

b) In an urban area a four-legged intersection is formed when a state highway (10)
meets with a major district road (MDR). The building provided on the corner of
intersection is having an offset of 20m from the state highway and 15m from
MDR as shown in Figure.1. Analyse whether the intersection is safe if vehicles
are travelling at design speed on both state highway and major district road. If
not, then suggest the improvement strategies to be implemented at the

intersection.

Highway

MDR

Figure 1. Intersection

3 a) Explain the need and significance of traffic regulations in traffic engineering (5)

and management.

Page 1 of 4
