Reg No.:

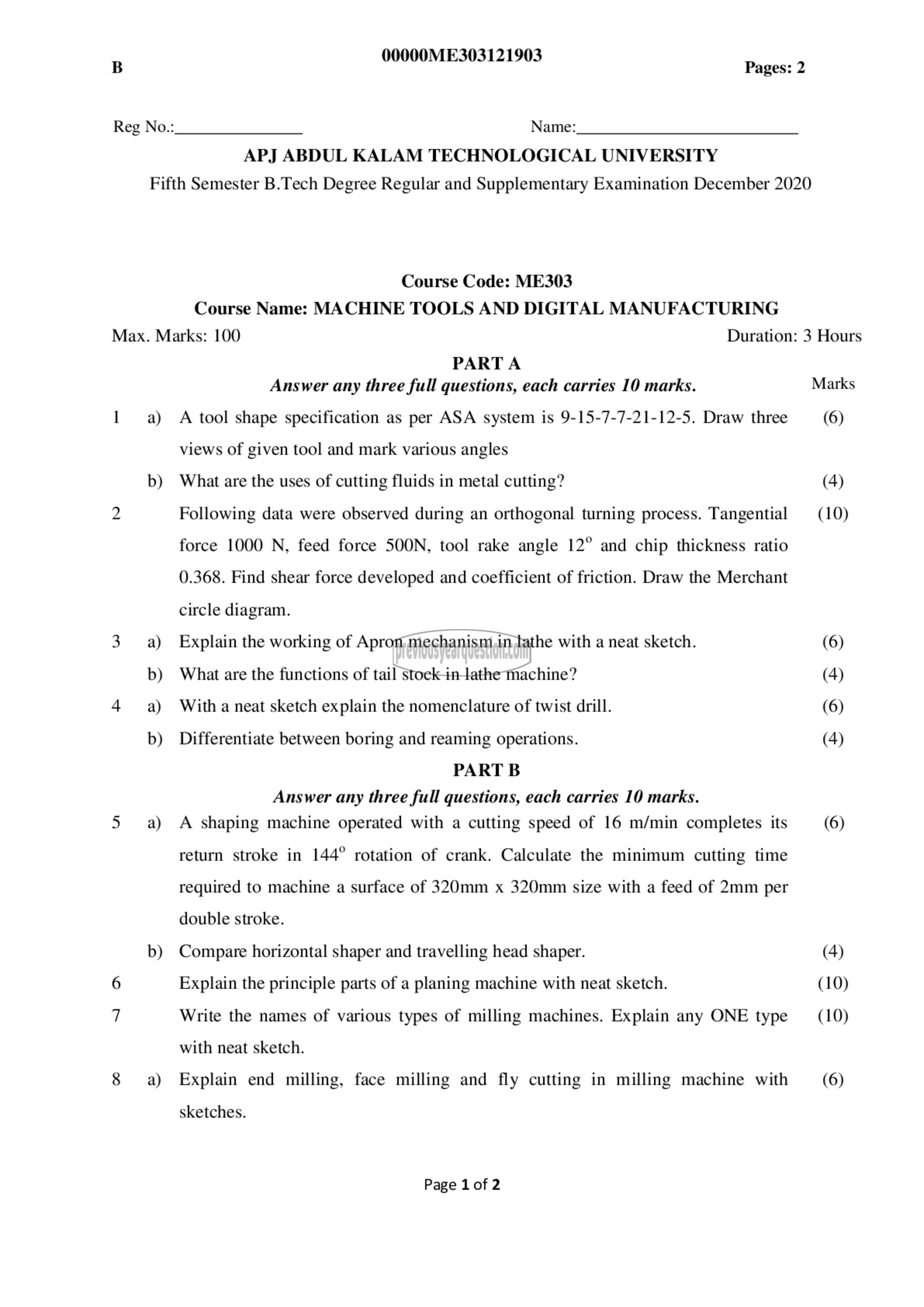

Fifth Semester B.Tech Degree Regular and Supplementary Examination December 2020

Max. Marks: 100

1 ஐ
b)

2

3 ஐ
b)

4 2)
b)

5 ஐ
b)

6

7

8 a)

00000ME303121903

Pages: 2

Name:

APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY

Course Code: ME303
Course Name: MACHINE TOOLS AND DIGITAL MANUFACTURING

PARTA
Answer any three full questions, each carries 10 marks.
A tool shape specification as per ASA system is 9-15-7-7-21-12-5. Draw three
views of given tool and mark various angles
What are the uses of cutting fluids in metal cutting?
Following data were observed during an orthogonal turning process. Tangential
force 1000 N, feed force 500N, tool rake angle 12° and chip thickness ratio
0.368. Find shear force developed and coefficient of friction. Draw the Merchant
circle diagram.
Explain the working of Apron mechanism in lathe with a neat sketch.
What are the functions of tail stock in lathe machine?
With a neat sketch explain the nomenclature of twist drill.
Differentiate between boring and reaming operations.
PART B
Answer any three full questions, each carries 10 marks.
A shaping machine operated with a cutting speed of 16 m/min completes its

return stroke in 144° rotation of crank. Calculate the minimum cutting time
required to machine a surface of 320mm x 320mm size with a feed of 2mm per
double stroke.

Compare horizontal shaper and travelling head shaper.

Explain the principle parts of a planing machine with neat sketch.

Write the names of various types of milling machines. Explain any ONE type
with neat sketch.

Explain end milling, face milling and fly cutting in milling machine with

sketches.

Page 1 of 2

Duration: 3 Hours

Marks

(6)

(4)
(10)

(6)
(4)
(6)
(4)

(6)

(4)
(10)
(10)

(6)
