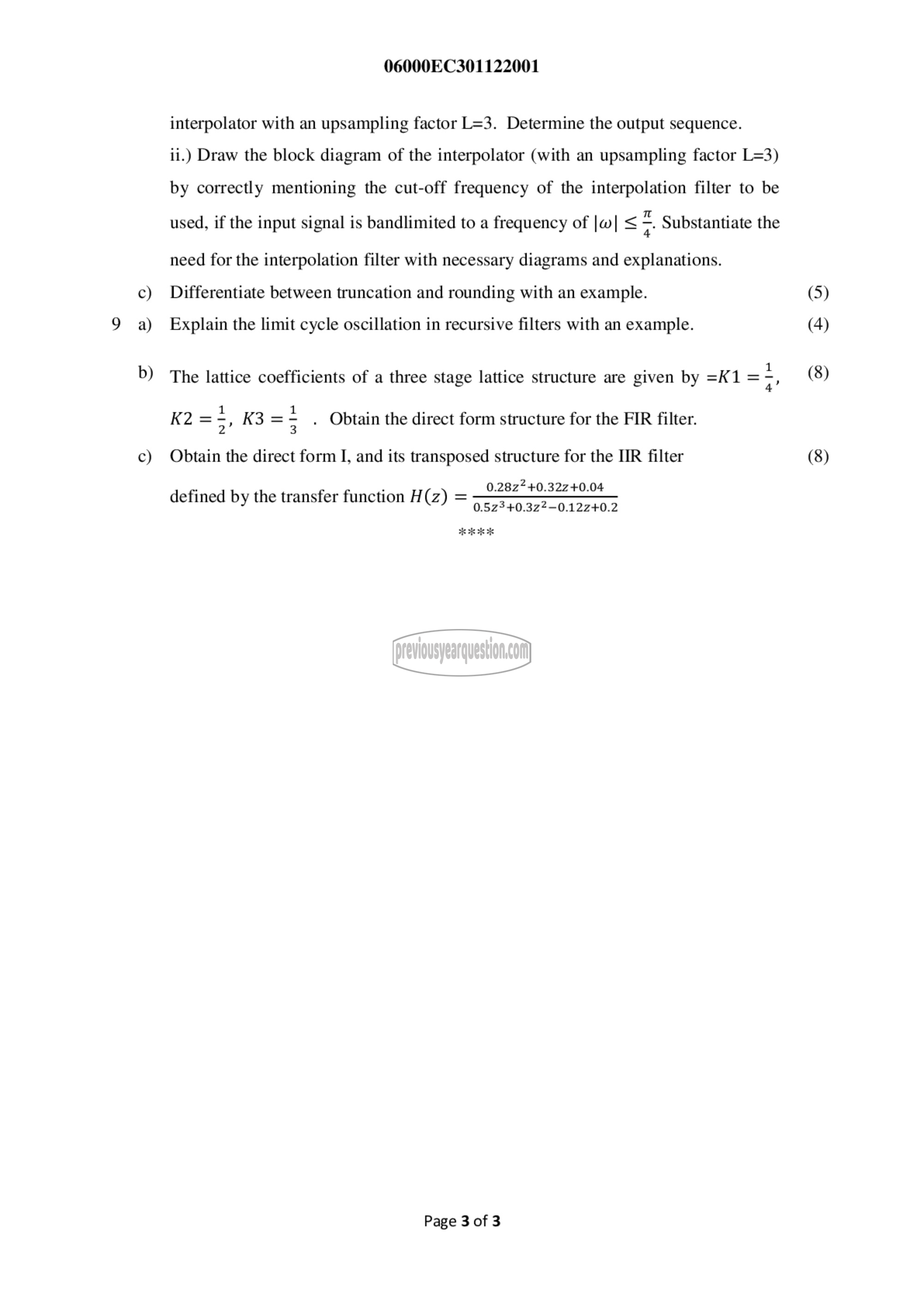

interpolator with an upsampling factor L=3. Determine the output sequence.
ii.) Draw the block diagram of the interpolator (with an upsampling factor L=3)
by correctly mentioning the cut-off frequency of the interpolation filter to be

used, if the input signal is bandlimited to a frequency of |w| < 7 Substantiate the

need for the interpolation filter with necessary diagrams and explanations.
Differentiate between truncation and rounding with an example.
Explain the limit cycle oscillation in recursive filters with an example.
T ⋅ ⋅⋅ ⋅ ⋅ 1
he lattice coefficients of a three stage lattice structure are given by =K1 = 7
1 1 ⋅ ⋅ FIR fi
{८2 = >" {८3 = = = Obtain the direct form structure for the FIR filter.

Obtain the direct form I, and its transposed structure for the IIR filter

0.282 2 +0.322 +0.04

defined by the transfer function H(z) = Tee ere
.52340.322-0.12240.
