10

0000EST110121901

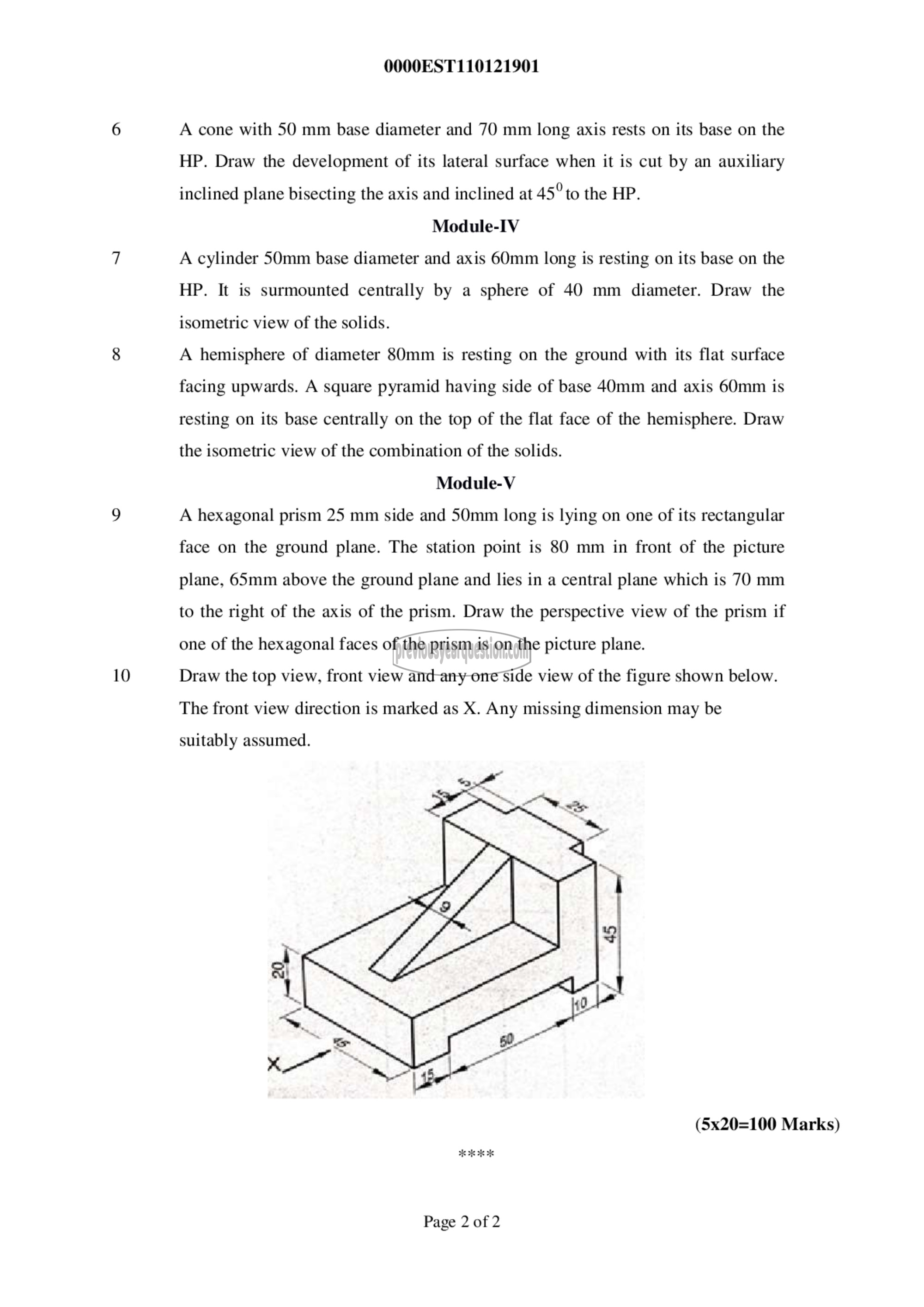

A cone with 50 mm base diameter and 70 mm long axis rests on its base on the
HP. Draw the development of its lateral surface when it is cut by an auxiliary
inclined plane bisecting the axis and inclined at 45° to the HP.

Module-IV
A cylinder 50mm base diameter and axis 60mm long is resting on its base on the
HP. It is surmounted centrally by a sphere of 40 mm diameter. Draw the
isometric view of the solids.
A hemisphere of diameter 80mm is resting on the ground with its flat surface
facing upwards. A square pyramid having side of base 40mm and axis 60mm is
resting on its base centrally on the top of the flat face of the hemisphere. Draw
the isometric view of the combination of the solids.

Module-V
A hexagonal prism 25 mm side and 50mm long is lying on one of its rectangular
face on the ground plane. The station point is 80 mm in front of the picture
plane, 65mm above the ground plane and lies in a central plane which is 70 mm
to the right of the axis of the prism. Draw the perspective view of the prism if
one of the hexagonal faces of the prism is on the picture plane.
Draw the top view, front view and any one side view of the figure shown below.
The front view direction is marked as X. Any missing dimension may be

suitably assumed.

(5x20=100 Marks)

Page 2 of 2
