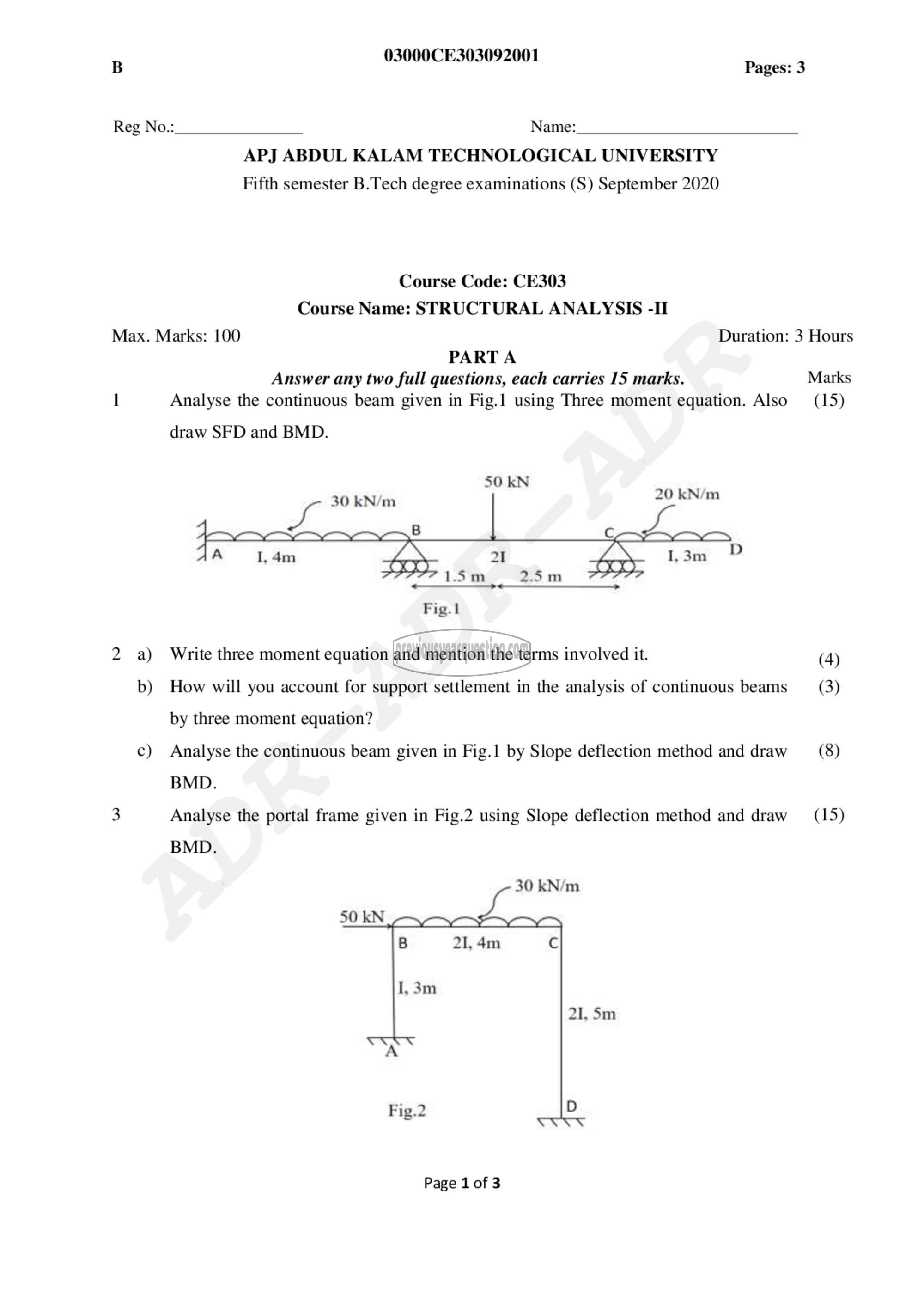

ர 03000CE303092001 Pages: 3

Reg No.: Name:
APJ ABDUL KALAM TECHNOLOGICAL UNIVERSITY
Fifth semester B.Tech degree examinations (S) September 2020

Course Code: CE303
Course Name: STRUCTURAL ANALYSIS -II

Max. Marks: 100 Duration: 3 Hours
PARTA
Answer any two full questions, each carries 15 marks. Marks
1 Analyse the continuous beam given in 118.1 using Three moment equation. Also (15)

draw SFD and BMD.

50 kN
ದ [Lo kN/m

5 30 KN/m

D

21 I, 3m

1.5m 2.5m

Fig. 1

2 a) Write three moment equation and mention the terms involved it. (4)
b) How will you account for support settlement in the analysis of continuous beams (3)
by three moment equation?
c) Analyse the continuous beam given in 118.1 by Slope deflection method and draw (8)
BMD.
3 Analyse the portal frame given in Fig.2 using Slope deflection method and draw (15)
BMD.

30 Fy

21, 5m

Fig.2

Page 1 of 3
