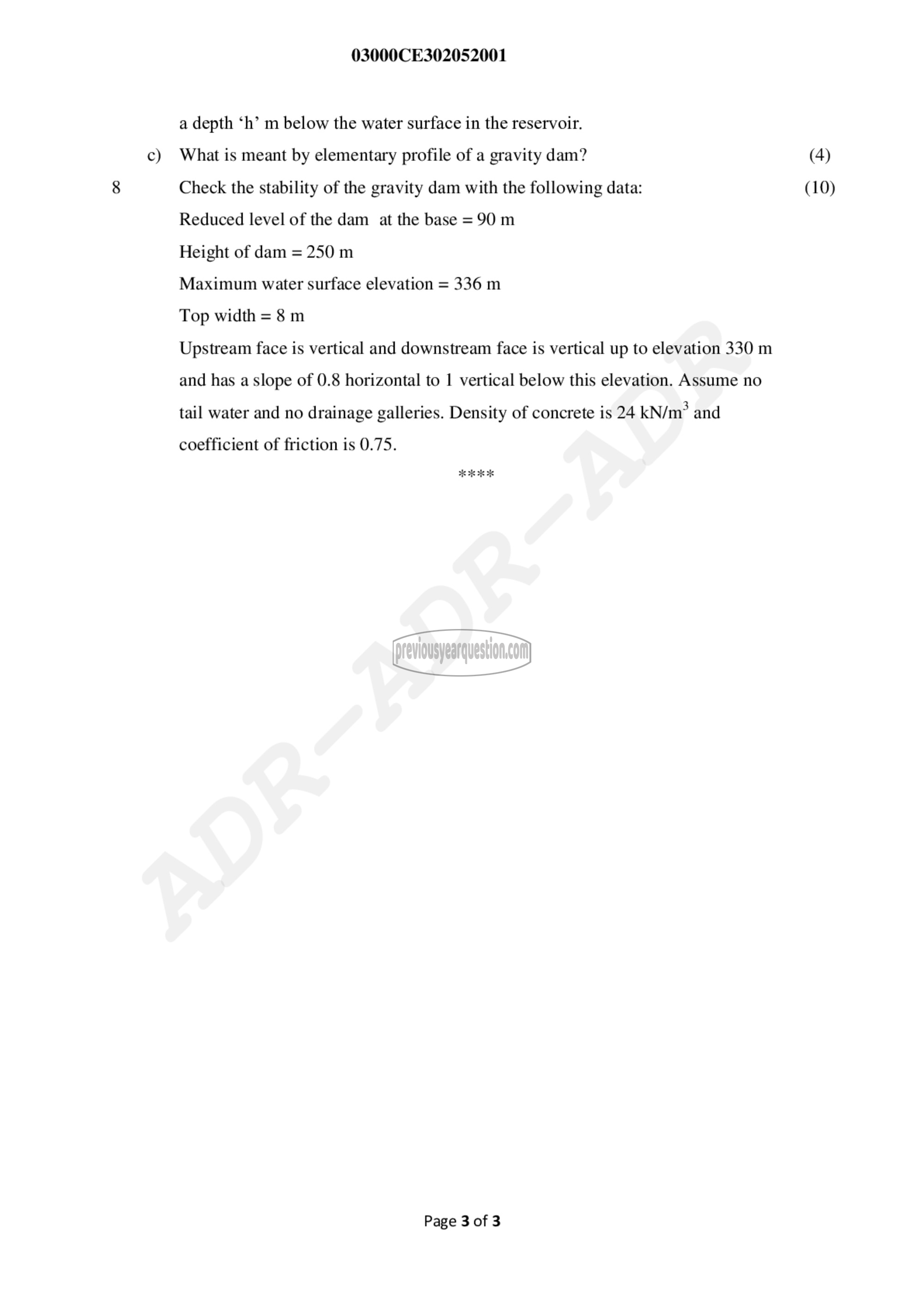

03000CE302052001

a depth ‘h’ m below the water surface in the reservoir.

What is meant by elementary profile of a gravity dam?

Check the stability of the gravity dam with the following data:

Reduced level of the dam at the base = 90 m

Height of dam = 250 m

Maximum water surface elevation = 336 m

Top width = 8 पा

Upstream face is vertical and downstream face is vertical up to elevation 330 m
and has a slope of 0.8 horizontal to 1 vertical below this elevation. Assume no
tail water and no drainage galleries. Density of concrete is 24 kN/m? and

coefficient of friction is 0.75.

Page 3 of 3

(4)
(10)
