10

11

12

13

14

a)
b)

a)
b)

a)

b)
a)
b)
a)
b)
a)
b)

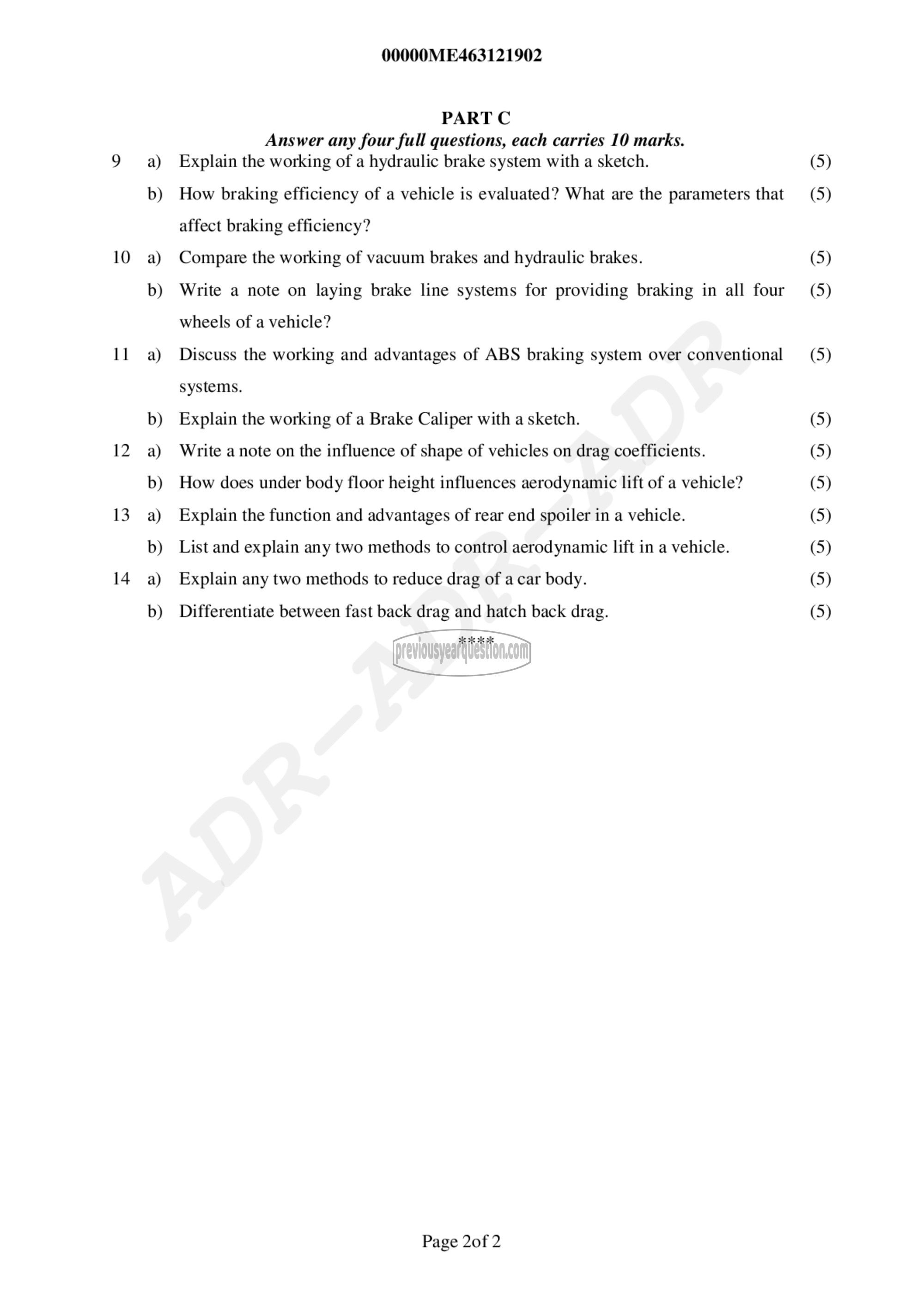

00000ME463121902

PART C

Answer any four full questions, each carries 10 marks.
Explain the working of a hydraulic brake system with a sketch.
How braking efficiency of a vehicle is evaluated? What are the parameters that
affect braking efficiency?
Compare the working of vacuum brakes and hydraulic brakes.
Write a note on laying brake line systems for providing braking in all four
wheels of a vehicle?
Discuss the working and advantages of ABS braking system over conventional
systems.
Explain the working of a Brake Caliper with a sketch.
Write a note on the influence of shape of vehicles on drag coefficients.
How does under body floor height influences aerodynamic lift of a vehicle?
Explain the function and advantages of rear end spoiler in a vehicle.
List and explain any two methods to control aerodynamic lift in a vehicle.
Explain any two methods to reduce drag of a car body.

Differentiate between fast back drag and hatch back drag.

RE

Page 2of 2

(5)
(5)

(5)
(5)

(5)

(5)
(5)
(5)
(5)
(5)
(5)
(5)
